Wolpac WOLVISION Technical Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

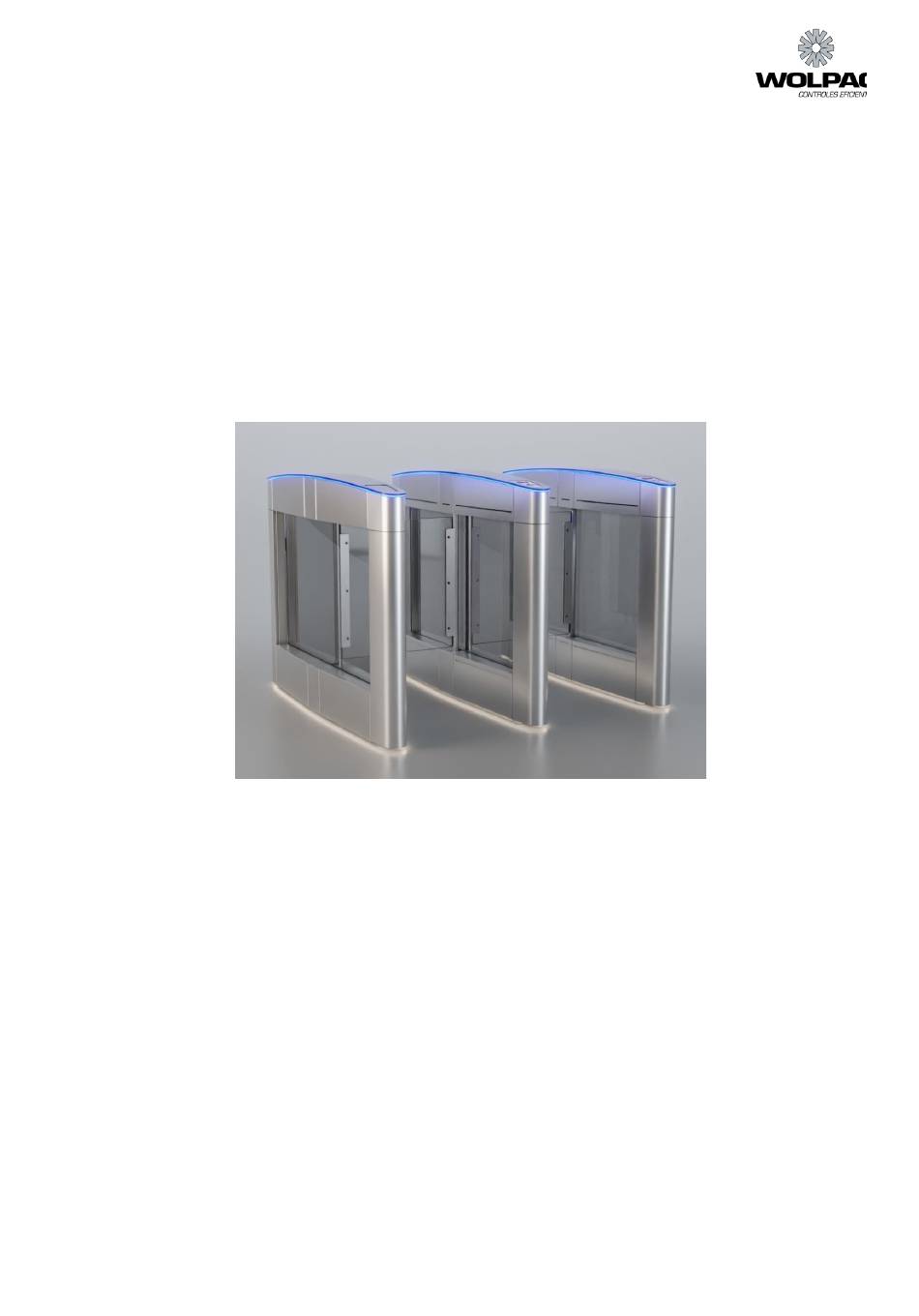

WOLVISION
TECHNICAL MANUAL
Wolpac Efficient Controls Engineering Dept.
MT-113
Apr/2021
Rev.: 01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WOLVISION and is the answer not in the manual?

Questions and answers

Summary of Contents for Wolpac WOLVISION

  • Page 1 WOLVISION TECHNICAL MANUAL Wolpac Efficient Controls Engineering Dept. MT-113 Apr/2021 Rev.: 01...

  • Page 2: Table Of Contents

    Preventive Maintenance ....................24 Lubricants and adhesives ....................25 Adjustments and technical interventions ................. 26 Exploded view of the Wolvision mechanism ..............27 Lista de Peças do Mecanismo Wolvision ................ 28 Eletronic components list ....................29 General dimensions ......................30 Warranty……………..……………………………………………………………………………32...

  • Page 3: Presentation

    Site.: www.wolpac.com/assistenciatecnica Make sure the version of this manual is the most up-to-date! Wolpac reserves the right to make any changes to this document, or to the technical specifications of the product without prior or subsequent notification to any organization.

  • Page 4: Important Safety Instructions

    2. Important Safety Instructions General Instructions The main characteristics of Wolvision, how it is installed, and the precautions to be taken to ensure proper operation are described in this manual. Read carefully before starting any type of operation to ensure the total and full performance of the product.

  • Page 5: Product Description

    3. Product Description The Wolvision product is a glass door access control equipment used for medium flow (equal to or less than 2,000 cycles*/day) and medium security level, and can be used in both directions of passage, equipped with an electronic control module capable of processing and providing information to the system in which the equipment is integrated/interconnected.

  • Page 6: Equipment Models

    Glass 1840mm Intermediary Intermediary Right Left Right Left Glass 870mm Glass 870mm Wolvision Hybrid Large Left Large Right Large Left Large Right Glass 1840mm Glass 870mm 5. Equipment Composition Wolpac Efficient Controls Engineering Dept. MT-113 Apr/2021 Rev.: 01 Page 5...
  • Page 7 11. PWDM II Slave Bracket Assembly 12. Tempered Glass Door 13. MECHANISM SHAFT 14. PWSP Slave Board Set 15. Finishes in Stainless Steel or Electrostatic Painting 16. Operation pictogram Wolpac Efficient Controls Engineering Dept. MT-113 Apr/2021 Rev.: 01 Page 6...

  • Page 8: Technical Specifications

    -10 to 55°C Relative humidity: Max. 95% non-condensing Approximate weight typical unit: 80 kg (Standard) and 82 kg (Large) Installation Location: Do not install on escape routes or obstructing emergency exits. Wolpac Efficient Controls Engineering Dept. MT-113 Apr/2021 Rev.: 01 Page 7...

  • Page 9: Installation

    Have the installation guide handy, which should be found inside the equipment packaging on the top cover. Wolpac is not responsible for any injury or damage occurring due to noncompliance with the instructions contained in this Technical Manual provided with the product.
  • Page 10 Conduits must be provided under the floor, with a minimum diameter of 1 ¼" (32 mm), providing passage boxes at the points indicated in the installation drawing (Fig. page11). Electrical connections Wolpac Efficient Controls Engineering Dept. MT-113 Apr/2021 Rev.: 01...
  • Page 11 The electrical installation of this product must be performed by a qualified technical team. The handling, installation and specifications of the cables must be in accordance with the instructions based on this manual. Basic preparation of the electrical installation For Wolvision equipment two types of cabling are required: • Power wiring •...
  • Page 12 Mounting Detail Sequence installation top view POWER SUPPLY PASSENGER BOX 4X4’’ PASSENGER BOX 4X4’’ COMMUNICATION Connection Schemes Wolpac Efficient Controls Engineering Dept. MT-113 Apr/2021 Rev.: 01 Page 11...
  • Page 13 Wolpac Efficient Controls Engineering Dept. MT-113 Apr/2021 Rev.: 01 Page 12...

  • Page 14: Turning On Equipment

    POWER SOURCE- FONTE – B RELAY POWER SOURCE- FONTE-A2 Wolpac Efficient Controls Engineering Dept. MT-113 Apr/2021 Rev.: 01 Page 13...
  • Page 15 CLOSED Wolpac Efficient Controls Engineering Dept. MT-113 Apr/2021 Rev.: 01 Page 14...
  • Page 16 JP1 CLOSED Wolpac Efficient Controls Engineering Dept. MT-113 Apr/2021 Rev.: 01 Page 15...
  • Page 17 Wolpac Efficient Controls Engineering Dept. MT-113 Apr/2021 Rev.: 01 Page 16...
  • Page 18 After the check, the steps must be redone and if the problem persists, technical assistance should be contacted by e-mail www.wolpac.com/assistenciatecnica. Congratulations! The equipment is ready for use and integration! Wolpac Efficient Controls Engineering Dept. MT-113 Apr/2021 Rev.: 01 Page 17...

  • Page 19: Pccs V Module - Electronic Integration

    4. Choose the serial port. 5. Start communication by clicking on the “Open COM” button. Important! The equipment purchased has a factory default configuration based on our experience of use. Make Wolpac Efficient Controls Engineering Dept. MT-113 Apr/2021 Rev.: 01 Page 18...
  • Page 20 (*) non-isolated voltage = When the GND of the validation system is common to the GND of the PWAC module The minimum width of the 200ms release pulse (not configurable via test program). Wolpac Efficient Controls Engineering Dept. MT-113 Apr/2021 Rev.: 01...
  • Page 21 HT, INFO2 and INFO1 Power Input Electronic cards must be powered by a specially stabilized power supply to service the Wolpac security interlock line. This power supply is full range and can work at 127V / 220V voltage. Wolpac Efficient Controls Engineering Dept. MT-113 Apr/2021 Rev.: 01...

  • Page 22: Usage Instructions

    The equipment also allows for a control configuration, ensuring a greater or lesser level of security at the site, this allowed by the barrier sensor monitoring system and the information processing logic, below are the settings: For configuration of the Wolvision security system the product configuration software is required, for more information see PCCS V Manual.
  • Page 23 Instructions for users Basic instructions on how to use the Wolvision equipment were placed just below, with the following visual instructions offered by the operational pictogram. These have been developed so that users can get used to using the product in a quick and practical manner.

  • Page 24: Wolvision Mechanism

    • 10 mm thick, clear tempered safety glass panel; • Elastic Coupling • Electromagnetic toothed brake; • Encoder for turning monitoring; • Its components receive surface treatments that provide durability and corrosion resistance. Wolvision Standard mechanism Overview Wolpac Efficient Controls Engineering Dept. MT-113 Apr/2021 Rev.: 01 Page 23...

  • Page 25: Preventive Maintenance

    • There are certain parts in this mechanism that require special care, such as the lubrication of mechanical items as described and demonstrated in the figure below. The use of specific lubricants described in item 13 is essential; Wolpac Efficient Controls Engineering Dept. MT-113 Apr/2021 Rev.: 01...

  • Page 26: Lubricants And Adhesives

    As well as in the parts and attachment components (nuts, screws etc.), the use of adhesives is recommended to maintain their proper functioning: Wolpac Efficient Controls Engineering Dept. MT-113 Apr/2021 Rev.: 01...

  • Page 27: Adjustments And Technical Interventions

    Turning damping mechanism • The adjustment in the equipment stops system is carried out at the factory, with no need for new adjustment or replacement of the stops. Wolpac Efficient Controls Engineering Dept. MT-113 Apr/2021 Rev.: 01 Page 26...

  • Page 28: Exploded View Of The Wolvision Mechanism

    15. Exploded View of the Mechanism Wolpac Efficient Controls Engineering Dept. MT-113 Apr/2021 Rev.: 01 Page 27...

  • Page 29: Lista De Peças Do Mecanismo Wolvision

    29230 ENCODER BRACKET 31915 SUBSET MOTOR SUPPORT 31912 MECHANISM BUSHING 31908 SUBSET MECHANISM SHAFT 31907 CLUTCH FLANGE 31903 THRUST BEARING 31902 CLUTCH HOLDER 31901 Code Item QTY. Name Wolpac Wolpac Efficient Controls Engineering Dept. MT-113 Apr/2021 Rev.: 01 Page 28...

  • Page 30: Eletronic Components List

    31279 S8VK-C06024 (OMRON) 24V / 2.5A 31280 S8VK-G03005 (OMRON) 5V/5A 31281 LI BATTERY - ION 21.6 V 13.2 AH 31282 PWDMII CARD - WOLPAC ENGINE DRIVER CARD 28847 PWSP PLATE CARD WOLPAC PLATE PASSAGE 30528 SENSORS 6/12 NPN PHOTOELECTRIC SENSOR 17150 Wolpac Efficient Controls Engineering Dept.

  • Page 31: General Dimensions

    18. General dimensions Wolvision Standard Wolpac Efficient Controls Engineering Dept. MT-113 Apr/2021 Rev.: 01 Page 30...
  • Page 32 Wolvision Large Wolpac Efficient Controls Engineering Dept. MT-113 Apr/2021 Rev.: 01 Page 31...

  • Page 33: Warranty

    19. WARRANTY I - This product is warranted by Wolpac - Sistemas de Controle Ltda for a period of 365 days (limited warranty), against any defects in material or workmanship, provided the following conditions are met: a) For the warranty to be valid, it is essential that the product seals remain intact and its identification label does not show signs of violation.
  • Page 34 WOLPAC EFFICIENT CONTROLS Commercial and Factory Rua Iijima, 554 Ferraz de Vasconcelos – SP – Brasil Tel.: (5511) 4674-8000 www.wolpac.com.br Wolpac Efficient Controls Engineering Dept. MT-113 Apr/2021 Rev.: 01 Page 33...
