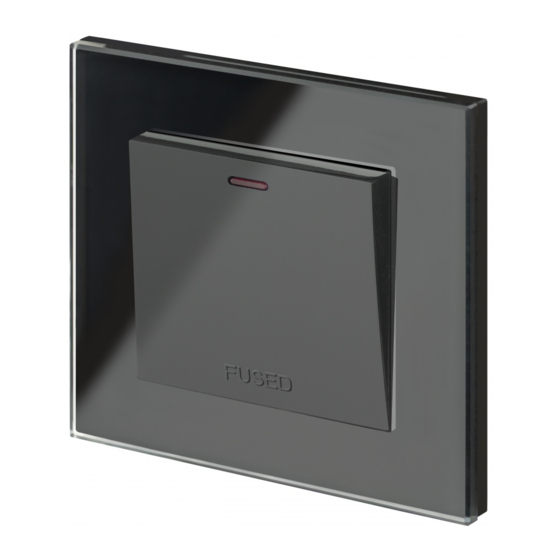

retrotouch FUSED SPUR Instruction Manual

FUSED SPUR
INSTRUCTION MANUAL

INSTALLATION WARNINGS:

BEFORE COMMENCING
INSTALLATION ISOLATE YOUR
MAINS ELECTRIC SUPPLY
Read the instructions care fully before starting the
installation process and keep them for future reference.
This product must be installed by a qualified electrician.
This product should be installed in accordance with the
relevant sections of the building regulations code, and the
current edition of the IEE Wiring Regulations (BS
7671:Requirements for electrical installations) and
appropriate statutory regulations.
:
Do not exceed the Maximum Power Rating
RATING 13A VOLTAGE 250V~
BS 1363/4 CE CERTIFIED
PATENT PENDING

INSTALLATION

Remove the glass panel
Using a flat screwdriver. Insert the screw driver in the
location notch on the bottom of the cover and twist to
unclip the cover.

Wiring

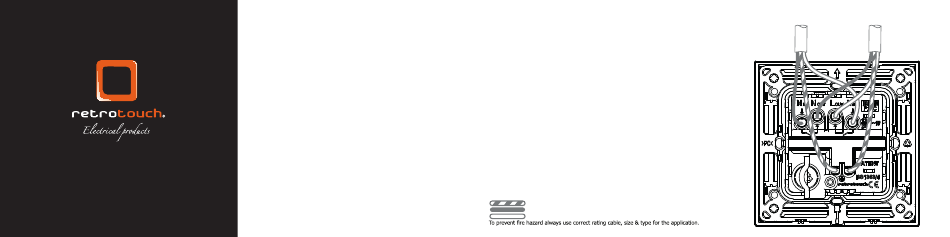

Wire as shown in the diagram. Push wires firmly into
terminals and tighten terminal screws so that wires are held
securely. No bare wires should protrude from the terminals.
Ensure correct wires are connect to the correct terminals, if
incorrectly wired, this could damage the product.
Wire identification - Twin & Earth Cable
As from 1st April 2004 new colour codes for hard wire installations was introduced.
EARTH = Green/Yellow Sleeving
Black (pre Apr 04) / Blue (After Apr 04)
NEUTRAL =
LIVE = Red (Pre Apr 04 / Brown (After Apr 04)
LOAD
SUPPLY
