Mounting Frame
Product No. MF692MS
Jets™ Mounting Frame provides a simple and complete solution for
mounting selected toilet models from Jets™ range of sanitary
fixtures.
Warranty
All products of the company are sold and all services of the company
are offered subject to Jets Vacuum AS General Sales Conditions
detailing warranty and terms and conditions of sale, copies of which
will be furnished upon request. The information provided herein is for
guidance only; it does not constitute a guarantee of the performance
or specification of any individual product or component.
Technical Data
Outside Dimensions
............................................................................................
Weight
.................................................................................................................
Generic Material
..................................................................................................
Patents and Trademarks
Jets™, Vacuumarator™, Helivac™, VC™, VOD™, CVS™ and
Softsound™ are trademarks and/or registered trademarks of Jets. ©
Copyright 2011, Jets AS.
Disclaimer
Product color reproduction is as near to actual color as product
methods allow. All rights reserved. Jets Vacuum AS has a policy of
continuous improvement on its products and reserves the right to
change materials and specifications without notice. Information
herein is current at the time of printing and is subject to change
without notice. No part of this document may be reproduced in any
form by any means without prior written approval of Jets Vacuum AS.

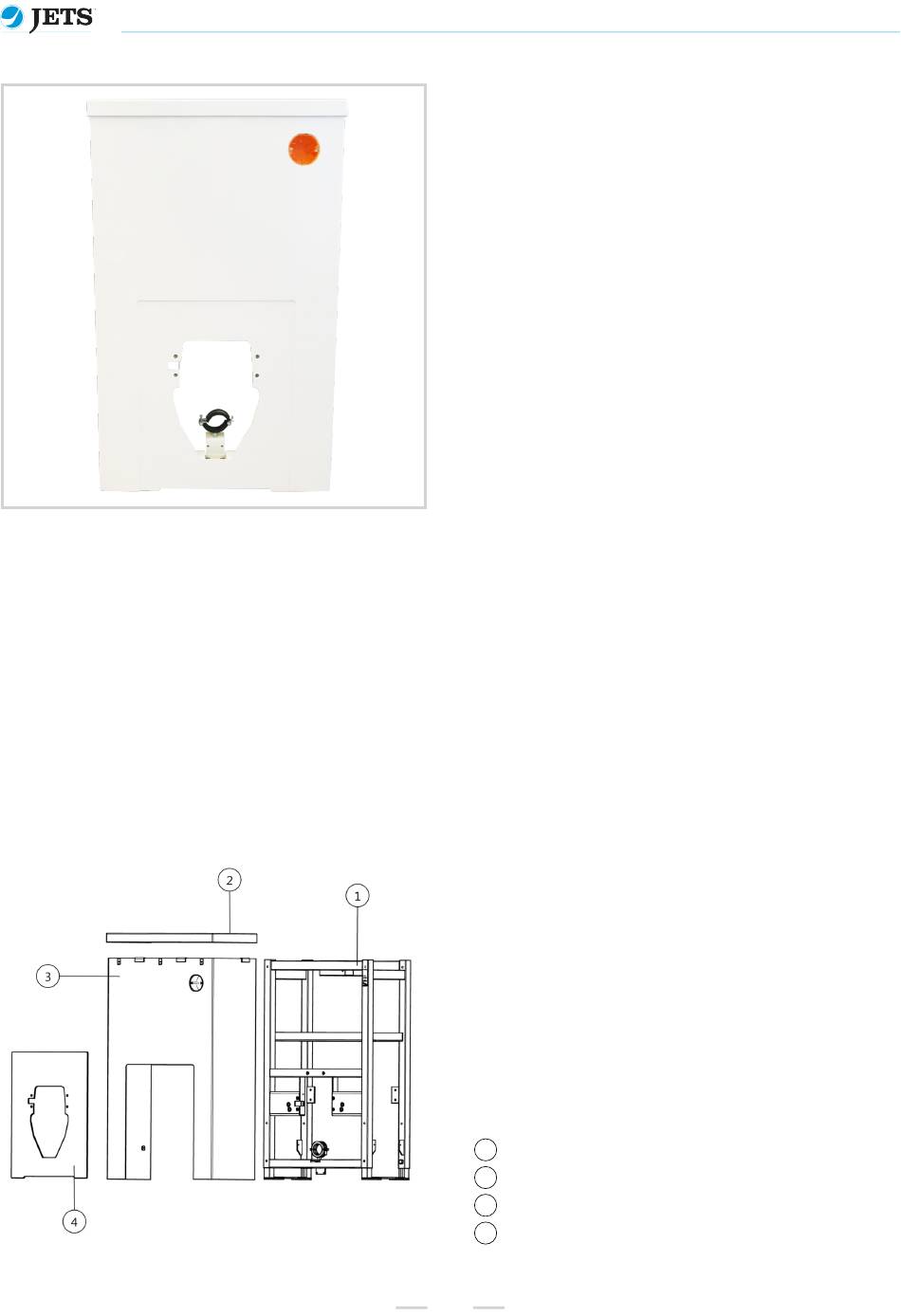

Components
Construction Characteristics
1 Mounting Frame...........................................................................................
2 Top Cover....................................................................................................
3 Main Cover..................................................................................................
4 Cover, w/Cut Out.........................................................................................
* Component/s avaliable as replacement parts.
1
Tel. +47 70 03 91 00
www.jetsgroup.com
Rev 2016-04-19 14:39
616 x 313 x 997 mm (LxWxH)
23.2 kg
ABS
069000355*
069000356*
069000357*
069000358*
Advertisement
Subscribe to Our Youtube Channel
Summary of Contents for Jets MF692MS
- Page 1 Disclaimer Product color reproduction is as near to actual color as product methods allow. All rights reserved. Jets Vacuum AS has a policy of continuous improvement on its products and reserves the right to change materials and specifications without notice. Information herein is current at the time of printing and is subject to change without notice.
-
Page 2: Dimension Drawings
Mounting Frame Tel. +47 70 03 91 00 www.jetsgroup.com Product No. MF692MS Rev 2016-04-19 14:39 Dimension Drawings A................................................315mm F.......................... CC310mm B................................................620mm G.......................... CC300mm C................................................1000mm H.......................... CC207mm D................................................305mm I........................... CC92mm E................................................610mm J........................... Release Button 850mm... - Page 3 Goods to be protected against shock, dust, humidity and moisture. Suitable adequately dimensioned transporting equipment is to be used. Note that the equipment may contain components that are easily damaged as a result of inappropriate handling. Jets Vacuum AS is not responsible for or liable for delivery delays resulting from occurrences outside of Jets Vacuum AS' immediate control.
-
Page 4: Pre-Installation
The mounting frame is designed to be used with a range of toilet models. The dimension information for each suitable model varies. Verify dimensions for correct adjustment of height, bolts and connections depending on the toilet model, prior to installation. If unclear, contact Jets Vacuum AS or your nearest supplier before starting the installation. - Page 5 Mounting Frame Tel. +47 70 03 91 00 www.jetsgroup.com Product No. MF692MS Rev 2016-04-19 14:39 3.) Mount the Frame to the Wall Using the 4 fastening holes (A) (Ø8.5), secure the frame to the wall. See extra mounting support for additional fastening.
- Page 6 Mounting Frame Tel. +47 70 03 91 00 www.jetsgroup.com Product No. MF692MS Rev 2016-04-19 14:39 7.) Mount the Cover, w/Cut Out Place the Cover, w/Cut Out ④ through the Fastening Bolts on the Mounting Frame ①. Note: Ensure that the Cover, w/Cut Out is placed on the bolts with the bottom cut lines facing the frame.
