- Page 1 BELLE 870/20024/0 02/22 3/30 WATER PUMP Operators Manual UKCA Declaration of Conformity EC/EU Declaration of Conformity...
-
Page 2: Ukca Declaration Of Conformity
- ISO 3744:2010 Acoustics — Determination of sound power levels and sound energy levels of noise sources using sound pressure Technical Files are held by Ray Neilson at the Altrad Belle address stated above:- Place of Declaration:- Sheen, Nr. Buxton,... -
Page 3: Ec/Eu Declaration Of Conformity
EC Declaration Of Conformity (DOC) We, Altrad Belle, Sheen, Nr. Buxton, Derbyshire, SK17 0EU, GB declare that the DoC is issued under our sole responsibility and belongs to the followings product(s): PRODUCT TYPE ..... Signed by: MODEL........Ray Neilson SERIAL No....... -
Page 4: Table Of Contents
ALWAYS wear or use the proper safety items required for your personal protection. If you have ANY QUESTIONS about the safe use or maintenance of this unit, ASK YOUR SUPERVISOR OR CONTACT: Altrad Belle (UK): +44 (0) 1298 84606 Contents How to use this manual .....................................4... -
Page 5: Machine Description

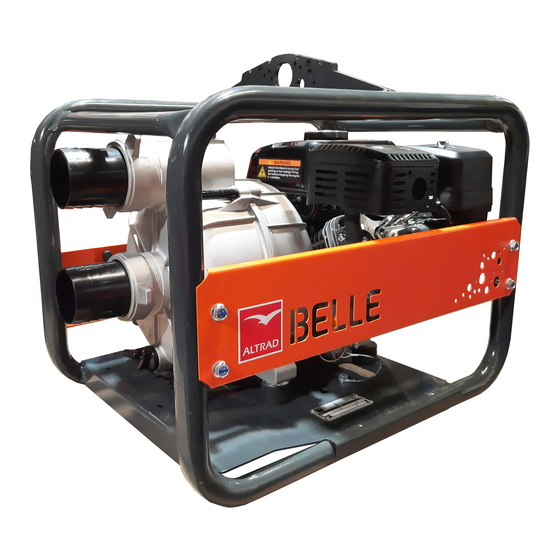

Machine Description The WPX 3/30 is a petrol engine driven, 3” semi-trash water pump designed for a variety of residential, commercial and agricultural tasks. It is suitable for sandy or muddy water, but not stones and other objects larger than 1” (25.4mm) in diameter. Ideal for use in the following situations:- •... -
Page 6: Technical Data
Technical Data 645mm 432mm Model WPX 3/30 Weight (Kg) Suction Port Diameter (in / mm) 3.0 / 80 Discharge Port Diameter (in / mm) 3.0 / 80 Max. Suction (m) Max. Head (m) Max. Flow Rate (ltr/min) 1000 Engine Model Loncin/Belle G200F - Petrol Engine Type 25 Tilt, Single Cylinder, 4-Stroke, Forced Air Cooling, OHV... -
Page 7: Decals
Decals A - Branding Decals Altrad logo decals B - Rating Decal Decal to includes main Technica Data, including Noise Level, CE mark, UKCA mark C - Lifting Point Decal Identifies the Lifting Point. D - Safety Decal Safety symbols and general safety instructions for operating the machine. -
Page 8: General Safety
It is the responsibility of the operator to ensure that he/she fully understands how to operate this equipment safely. If you are unsure about the safe and correct use of the Water Pump, consult your supervisor or Altrad Belle. -
Page 9: Hose Connection
Hose Connection DO NOT connect either of the hoses to the Water Pump whilst the engine is running. This will cause CAUTION extensive damage. Before connecting the hose to the Water Pump you must lay the hose out to its full length. SUCTION HOSE INSTALLATION Use a commercially available hose and hose connector with the hose clamp provided with the pump. - Page 10 Hose Connection DO NOT connect either of the hoses to the Water Pump whilst the engine is running. This will cause CAUTION extensive damage. Before connecting the hose to the Water Pump you must lay the hose out to its full length. DISCHARGE HOSE INSTALLATION Use a commercially available hose and hose connector, and clamp provided with the pump.
-
Page 11: Position The Water Pump
Water Pump Placement For the best performance from your Water Pump, place the Water Pump near the water level, and use hoses that are no longer than necessary. That will enable the Water Pump to produce the greatest output with the least self-priming time. As the head (pumping height) increases, pump output decreases. -
Page 12: Operatign Instructions
Operating Instructions Before you operate or carry out any maintenance on this machine YOU MUST READ and STUDY WARNING this manual. PRE-OPERATION CHECKS • Check your Water Pump before use and IMMEDIATELY replace any damaged parts. • Check the general condition of the hoses. Be sure the hoses are in suitable condition before connecting them to the pump. Remember that the suction hose MUST be reinforced construction to prevent hose collapse. -
Page 13: Service And Maintenance
Service & Maintenance The Altrad Belle WPX 3/30 Water Pump is designed to give many years of trouble free operation. It is recommended that an approved Altrad Belle dealer carries out all major maintenance and repairs. Always use genuine Altrad Belle Replacement Parts, the use of spurious parts may void your warranty. -
Page 14: Storage
Storage STORAGE PREPARATION Proper storage preparation is essential for keeping your water pump troublefree and looking good. The following steps will help to keep rust and corrosion from impairing your pump’s function and appearance, and will make the engine easier to start when you use the pump again. -
Page 15: Troubleshooting Guide
Replace / clean spark plug. Air cleaner blocked. Replace / clean air filter. Engine still will not start. Major Fault Contact Agent or Altrad Belle. Air cleaner blocked. Replace / clean air filter. Spark plug fouled. Replace / clean spark plug. -
Page 16: Warranty
Warranty Your new Altrad Belle Water Pump is warranted to the original purchaser for a period of one-year (12 months) from the original date of purchase. The Altrad Belle warranty is against defects in design, materials and workmanship. The following are not covered under the Altrad Belle warranty: 1. - Page 18 ALTRAD BELLE Sheen, Nr. Buxton, Derbyshire, SK17 0EU, GB Tel. +44 (0)1298 84606 - Fax +44 (0)1298 84722 - Email: sales@altrad-belle.com www.Altrad-Belle.com BELLE EU IMPORTER ADDRESS LIGHT ADRESSE DE L'IMPORTATEUR - DIRECCIÓN DEL IMPORTADOR - ENDEREÇO DO IMPORTADOR - ADRES IMPORTEUR CONSTRUCTION IMPORTØRENS ADRESSE - IMPORTEUR ADRESSE - INDIRIZZO DELL'IMPORTATORE - IMPORTÖRENS ADRESS - IMPORTØRADRESSE...
