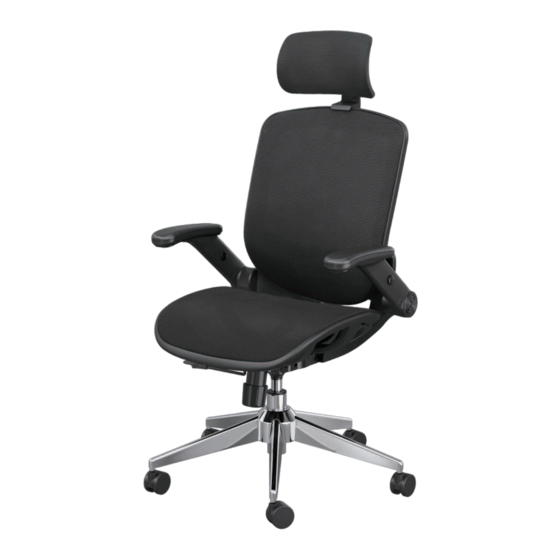

Summary of Contents for SNOVIAY LKC245

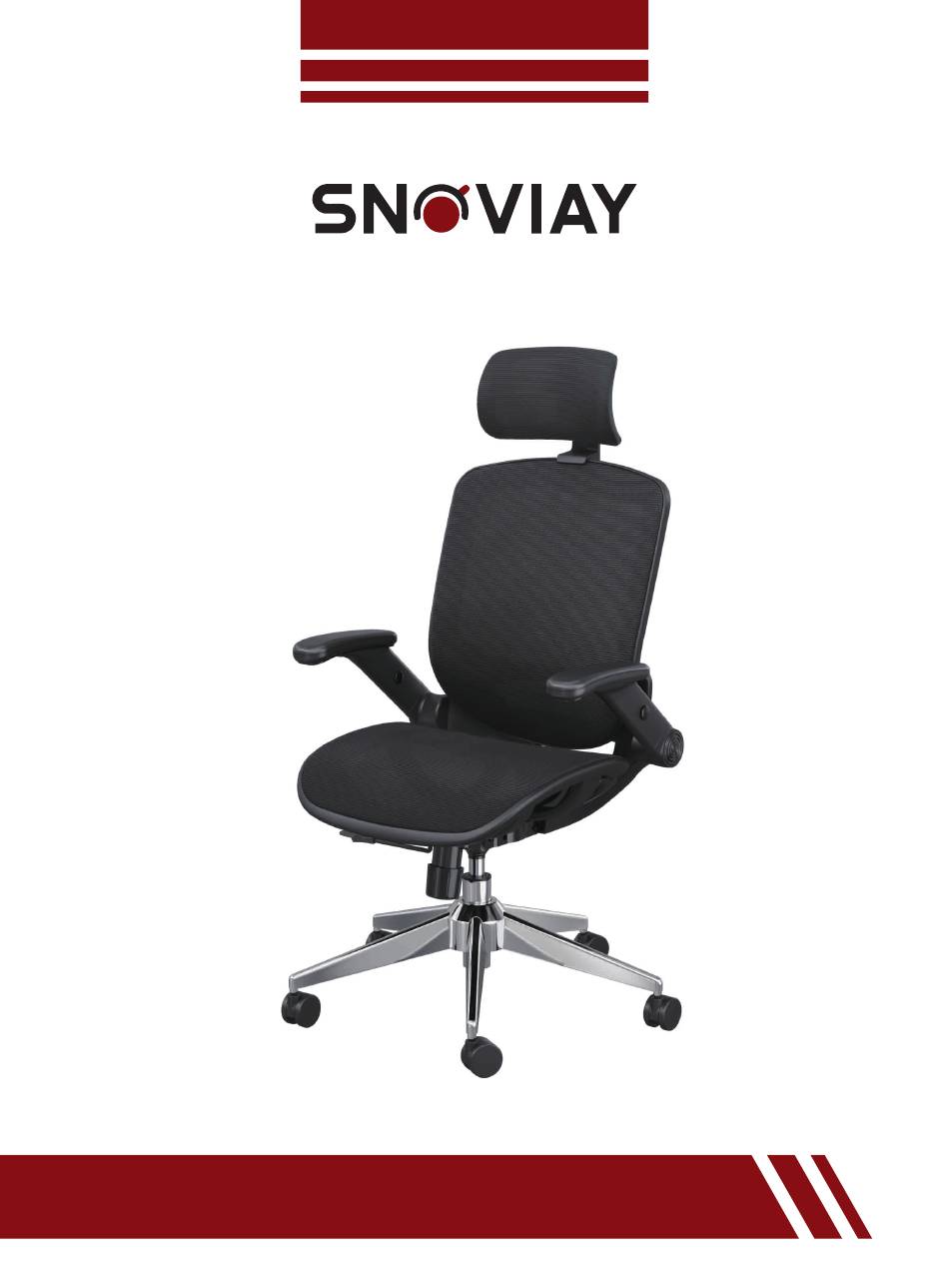

- Page 1 OFFICE CHAIR USER MANUAL...
- Page 2 CONTENTS Brand Instruction Product Feature Part Accessory Installation Manual Warning & Tips Contact Information...
- Page 3 Brand Instruction SNOVIAY LIFE SIT IN A HEALTHY WAY At SNOVIAY, good design is a fusion of practical daily functionality and seam- less integration into a wide variety of working environ- ments. SNOVIAY offers ergonomic seating solutions to keep every-...
- Page 4 Padded flip-up arms Adjustable sliding seat Adjustable headrest Three-level tilt lock function Breathable mesh design Stable five-star base Quiet rolling wheels Easy to assemble All tools included ERGONOMIC OFFICE CHAIR We want you do great things and get comfort sense while sitting in the breathable mesh chair. Inspired by the human body, the mesh chair has a stylish and ergonomic design.
- Page 5 OFFICE CHAIR STAR BASE CYLINDER COLUMN CONTROL MECHANISM 1 PC 1 PC 1 PC SEAT CUSHION BACKREST HEADREST 1 PC CASTER 1 PC 1 PC 5 PCS LARGE SCREW FOR BACKREST 4 PCS + 1 PC extra MIDDLE SCREW FOR CONTROL MECHANISM 4 PCS + 1 PC extra SMALL SCREW FOR NAPREST...
- Page 6 STEP 1: 1. To begin assembly, place Star Base (1) upside down and insert Casters (7) into bottom of Star Base (1). 2. Turn Star Base (1) right side up on the floor and insert Cylinder Column (2) into center hole on Star Base (1).
- Page 7 STEP 2: Attach Control Mechanism (3) onto the bottom of Seat Cushion (4) by using Middle Screws (9) for holes of Seat Cushion (4) and tighten screws with Hex Wrench (11).
- Page 8 STEP 3: Attach the Back Cushion (5) to the Seat Cushion (4) by positioning the back support plate over the Control Mechanism (3) with Large Screws (8), tighten but do not over tighten Large Screws (8) with Hex Wrench (11).
- Page 9 STEP 4: Position the assembled chair upright with the seat plate facing down. Insert the Cylinder Column (2) into the center hole of the Control Mechanism (3) and press down until fully engaged and rest it on the Star Base (1).
- Page 10 STEP 5: First, loosen the two Small Screws (10) of the Headrest (6), then attach the Headrest (6) to the top frame of Backrest (5) by using two Small Screws (10). Tighten Screws with Phillips head screwdriver (12). Check the chair and make sure all bolts, screws and knobs are securely tightened. Your office chair is now complete!
- Page 11 HEADREST MECHANISM This is new ergonomic headrest. You can adjust the angle and height of headrest according to below instruction: Rotate the headrest directly to adjust the angle of headrest. Lift or pull the headrest directly to adjust the height of headrest.
- Page 12 CONTROL MECHANISM To Adjust The Seat Height: Find the second handle under the right side of the seat. Rotate the handle forward, the seat height can be adjusted up and down. To Adjust The Tilt Back Function: Free: Pull the second handle out, the back of the chair is free and tilts back.
- Page 13 CONTROL MECHANISM To Adjust The Tilt Tension: The tilt tension knob underneath the seat to control the flexibility of rocking in your chair. 45Ā To adjust height of the armrest: Press the buttons on the armrests to allow the armrests to move up or down freely. Release the buttons once the desired height is reached.
- Page 14 WARNING SERIOUS INJURY MAY OCCUR IF FAILURE TO FOLLOW THESE WARNING： This chair is designed for sitting only. Do not stand on this chair. Do not use it as a stepladder. Do not use this chair unless all bolts and parts are firmly tightened. Check and retighten all bolts and parts at least every 3 months.
- Page 15 FRUSTRATION FREE SHOPPING feel free to seek help from us...
- Page 16 SNOVIAY LIFE SIT IN A HEALTHY WAY CONTACT US via your order from Amazon.com via email: info@snoviaychair.com KNOW ABOUT US visit our official.site: www.snoviaychair.com...
