Summary of Contents for Excelsecu Data Technology ESCS-W30

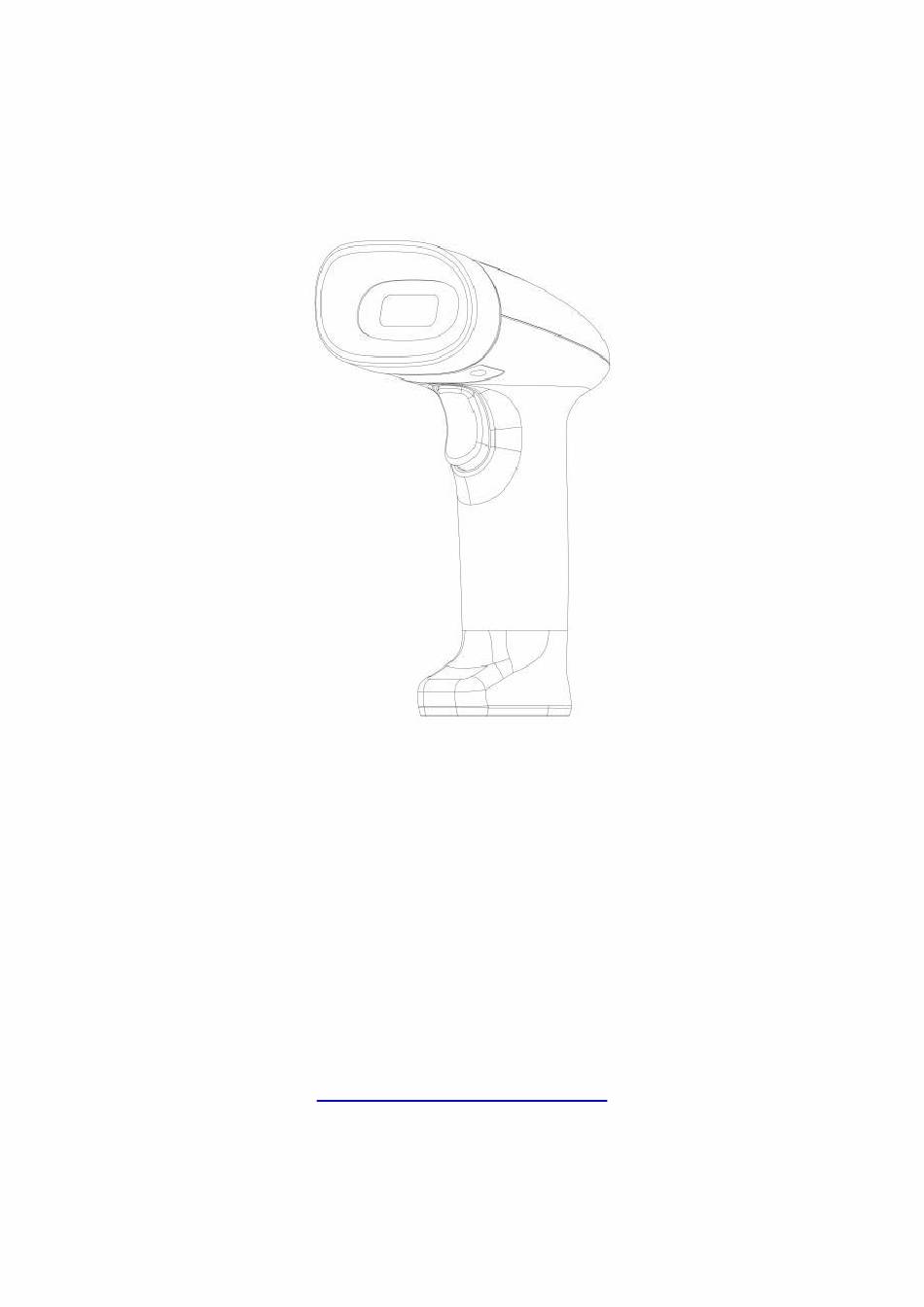

- Page 1 1D 2D Wireless Barcode Scanner ESCS-W30 User Guide This user guide is for ESCS-W30 1D 2D Wireless Barcode Scanner users only. Please read and save this manual carefully before use for future reference. Excelsecu Data Technology Co., Ltd. www.excelsecu.com...
-
Page 2: Packing List
1. Packing list ESCS-W30 …… 1 ESCS-WD30 2.4G Adapter …… 1 User Guide …… 1 2. Product instruction 2.1. How to use The device is connected with the host through USB cable. After the USB power supply is turned on,... - Page 3 barcode or QR code to be scanned (it is recom mended to keep the distance above 3cm), and press the button until the code scanned. After the device scans the code successfully, the buzzer sounded, and the green indicator will flflash once, indicating that the code scanning is successful.
- Page 4 Don't use the USB extension cable,it wi ll cause the device can not work prope rly; up the brightness of the phone Turn screen.When scanning the barcode of the mobile phone screen, check whether the brightness of the mobile phone screen is enough.
- Page 5 Open the default code type Open all code type 3.3. Volume adjustment High volume Medium volume Low volume 3.4. Restore factory Setting The default setting of the current interface is HID-KBW. If you want to set it to HID-POS, contact customer service.
- Page 6 4. Specification Model ESCS-U30 Dimension 157*95*72.5 mm Material PC+ABS Working DC 5V ± 0.25V Voltage Working <260mA Current Connection USB Indication Buzzer & LED Camera 640*480pixels, COMS, 30fps Canning Rotor angle 360 ° , inclination ± Angle 55°, declination±55° EAN13：35~155mm(13mil) Code128：60~275mm(20mil) Depth of Field...
-
Page 7: Fcc Warning
Code11、 RSS-14、 RSS Limited、 RSS Expanded 、 MSI Plessey 、 Standard 25 、 Plessey 、 ChinaPost25 、 GS1 Composite） 2D Code： QR Code 、 PDF417 、 Data Matrix （Can set open or not ： Han Xin、 Micro PDF417 、 Micro QRCode 、 MaxiCode、... - Page 8 received, including interference that cause undesired operation. Any Changes or modifications not expressly approved party responsible compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the Rules.
- Page 9 encouraged correct interference by one or more of the following measures: -Reorient relocate receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help.
