Summary of Contents for DropEffect XG Hotend

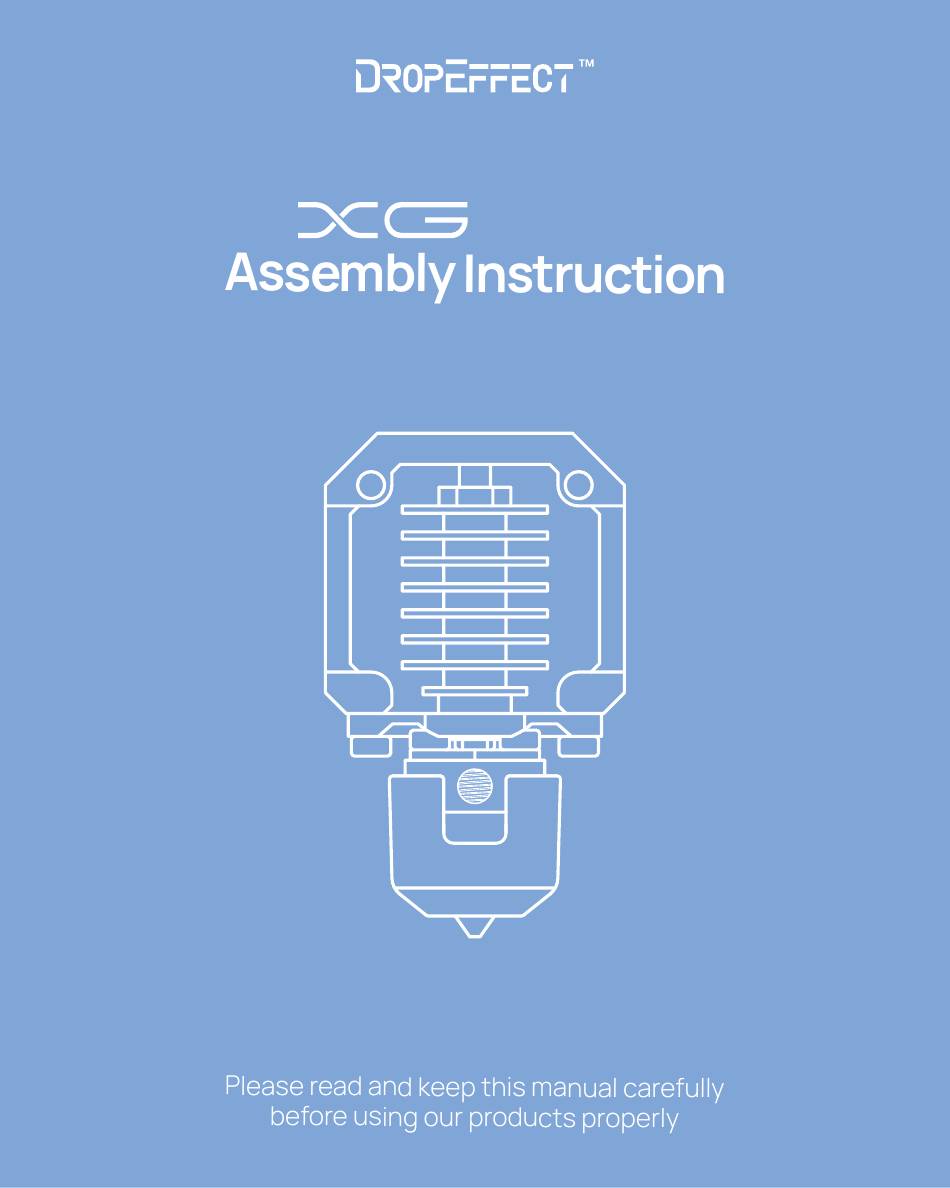

- Page 1 Hotend...
- Page 2 www.drope ect.com...
- Page 3 Groove Mount CR Mount Copper Plated Nozzle www.drope ect.com...
- Page 4 Name Quantity H6.0 Open Spanner H1.5 Hex Key H2.0 Hex Key Fans Extension wire -5cm Thermistor Extension wire -5cm Heating ring Extension wire -5cm Fans Extension wire -5cm Thermistor Extension wire -5cm Hexagon countersunk screw M3*8 M2.0*6.0 screw M2.0*4.0 titanium alloy screw Thermal Grease（0.5g）...
- Page 5 Step 1 Mount the thermistor to the heatblock through the threaded hole of M4. Step 2 Fix the heatbreak to the heatblock with H1.5 Hex Key through 3 M2*4 titanium alloy screws. At the same time, coat the external thread of the throat evenly with thermal grease.
- Page 6 Step 3 Put the heatbreak fixing seat into the threaded end of the heatbreak through the middle hole, the V slot of the heatbreak fixing seat faces the screw, and the side plane of the heatbreak fixing seat faces the thermistor direction.
- Page 7 Step 4 Use the H1.5 hex key to connect the heat dissipation frame to the heatbreak fixing seat with two M2*6 screws. Step 5 Use the H2.0 hex key to connect the 2510 fan to the heat dissipation frame with two M2.5*14 screws. www.drope ect.com...
- Page 8 Step 6 Put the silicone protective sleeve on the heatblock. Step 7 Connection of the mount: Use the H1.5 hex key to loosen the two M2*6 screws connecting the heat dissipation frame and the heatbreak fixing seat, and remove the heat dissipation frame, which can be connected with the following two di erent mounts: www.drope ect.com...
- Page 9 Step 7-1 With H1.5 hex key, use 4 M2*6 screws to connect the heat dissipation frame with the mount - Groove Mount. Step 7-2 Or with H1.5 hex key, use 2 M2*6 screws to connect the heat dissipation frame with the mount - CR Mount. www.drope ect.com...
- Page 10 Step 8 Install the nozzle: Heat the heating Hotend to 285 °C without filaments, use the H6 open spanner to tighten the nozzle with a torque of about 2.5 NM (see nozzle hot tightening assembly process for more details). www.drope ect.com...
- Page 11 Step 1 Hot - tightening is the last mechanical step before XG Hotend is ready! It is essential for the sealing of the nozzle and heatbreak to ensure that molten filaments do not leak out of the hotend during use.
- Page 12 B e F l e x i b l e W i t h Y o u r 3 D P r i n t i n g Drope ect GmbH E-mail / contact@drope ect.com Phone / +86 132-2220-5468 O icial website / www.drope ect.com...
