564 Faces
Wilmington Black - 95400415
564 Discontinued Faces
Legacy Black - 95400403
Legacy Black – 95400186
Legacy Black – 95400195
Compatibility:
• 564 SS & DF
• 564 HO
• 564 EF-I
• 564 25k
• 564 35k
The center deflectors must be in place when using this face to prevent
the facing above the fireplace from becoming too hot. If this face is
replacing a Lopi Grill (96200801), make sure to replace the center
deflectors.
Hand-Rubbed Patina Finishes
The optional patina finish is hand applied by a skilled artisan to permanently alter the metal colors and texture
of the face. Each face is individually hand-polished and fired in an oven which imparts unique color subtleties
with no two finishes alike. The patina finish on your face is a "living" color and will age and antique over time.
Enjoy the timeless, rich luster of your beautiful new face.

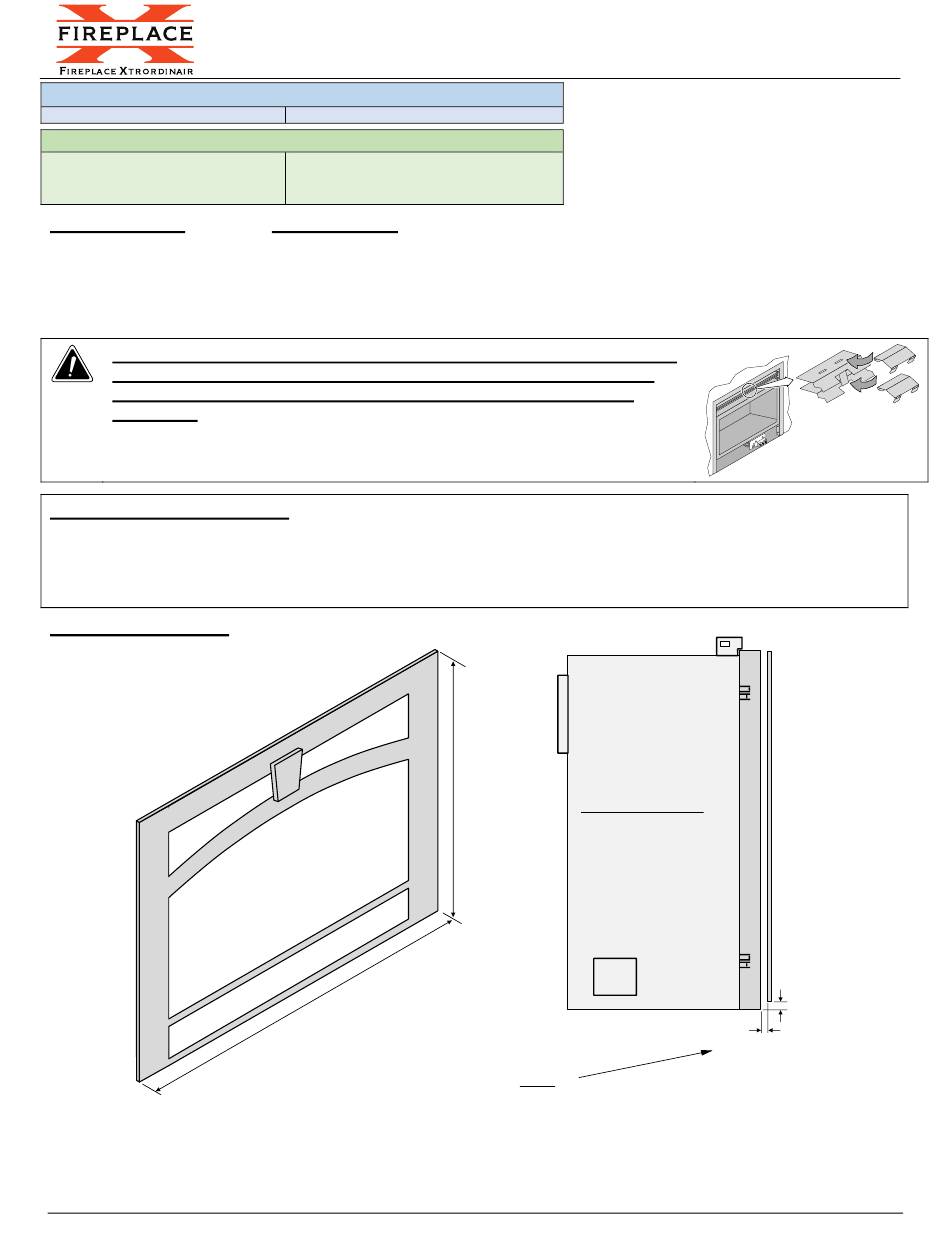

Installation Details
Page 1 of 4
564 Wilmington Face
Legacy Carbon Patina - 95400404
Legacy Carbon Patina - 95400194
Legacy Carbon Patina - 95400196
Packing List:
• Face
• (4) 8-32 Nuts
• (2) 564 Top Brackets (w screws)
• (2) 564 Upper Mounting Brackets
36"
17601480
• (2) 564 Lower Mounting Brackets
• (2) 10-24 1-1/2" Screws
• Patina Touch-Up Kit (Patina Faces Only)
29"
SIDE OF FIREPLACE
NOTE:
This face has an adjustable bracket that allows for
different facing depths to be tucked under the face.
9/15/22
1"
0" TO 1"
© Travis Industries, Inc.
Advertisement
Summary of Contents for Fireplace 564 Wilmington Face
- Page 1 • 564 35k The center deflectors must be in place when using this face to prevent the facing above the fireplace from becoming too hot. If this face is replacing a Lopi Grill (96200801), make sure to replace the center deflectors.
- Page 2 Secure the arch cover to the barrier following the directions to the right (arch cover is shipped with the fireplace). Replace the glass barrier. Arch Cover Bend the tabs ov Install face mounting brackets to the secure the arch c fireplace.
- Page 3 564 Wilmington Face Installation (continued) The facing and hearth (if applicable) must be installed prior to attaching the face. See the installation manual for complete details. Raised Fireplaces Note how the tile is 1” (maximum) above the base of the fireplace.
- Page 4 Slide the face into place. The tabs on the upper brackets insert into the slots on the fireplace The face is secured to the fireplace with four screws. Two brackets, holding the face in place of the screws are fastened to the upper brackets with while the screws are tightened.
