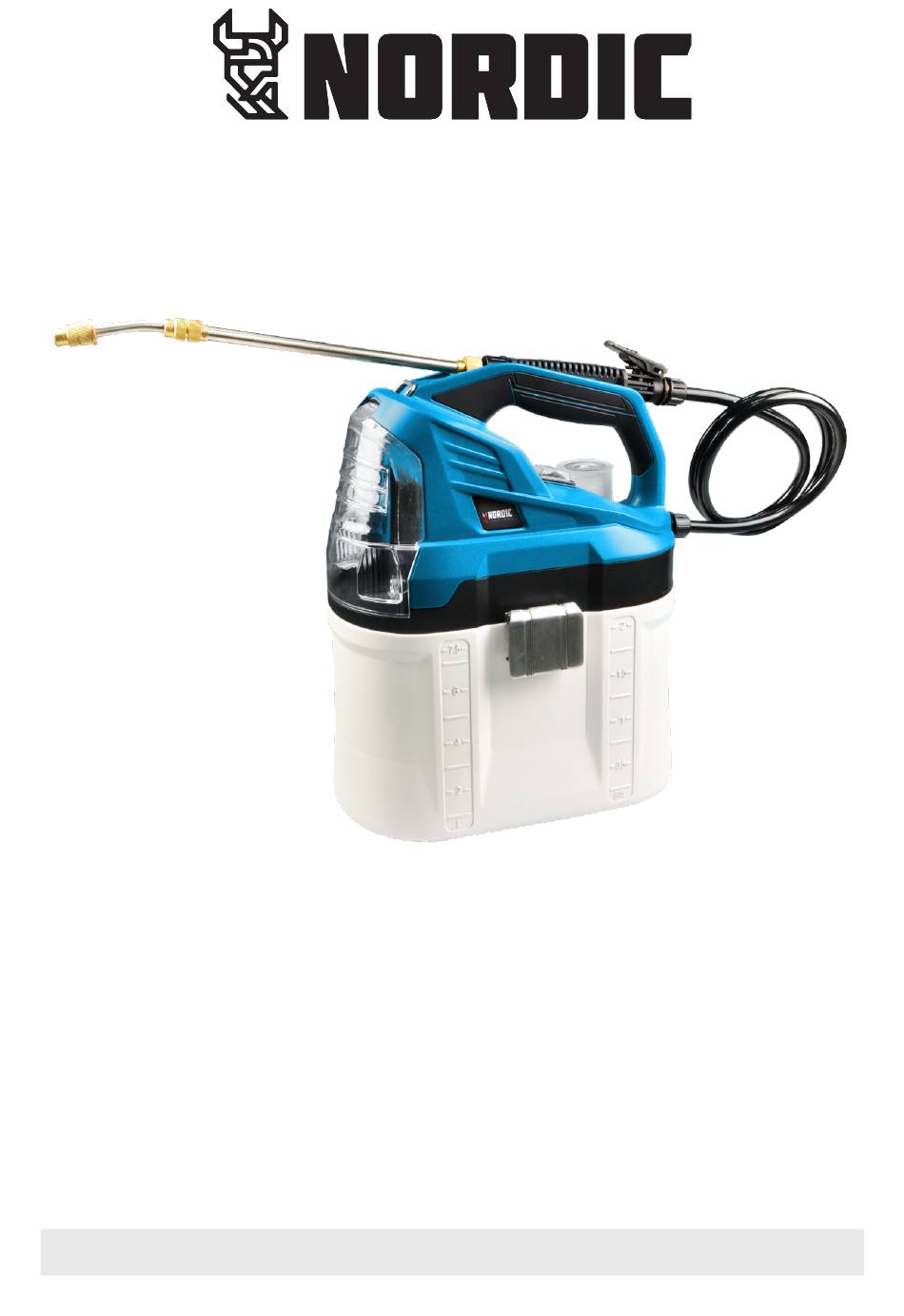

- Page 1 18V CORDLESS GARDEN SPRAYER OPERATING MANUAL GSP-L0118...
-
Page 2: Product Specification
NORDIC Your chemical sprayer has been engineered and manufactured to our high standard for dependability, ease of operation, and operator safety. When properly cared for, it will give you years of rugged, trouble-free performance. WARNING: To reduce the risk of injury, the user must read and understand the operator’s before ... -
Page 3: Electrical Safety
NORDIC • Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control. ELECTRICAL SAFETY • Always check that the power supply corresponds to the voltage on the rating plate. • Power tool plugs must match the outlet. Never modify the plug in any way. Do not use adapter plugs with earthed power tools. - Page 4 NORDIC POWER TOOL USE AND CARE • Do not expect the power tool to do more than it can. Use the correct power tool for what you want to do. A power tool will achieve better results and be safer if used in the context for which it was designed.
- Page 5 NORDIC • Dress properly. Do not wear loose clothing or jewelry. Contain long hair. Keep your hair, clothing, and gloves away from moving parts. Loose clothes, jewelry, or long hair can be caught in moving parts. • Use safety equipment. Always wear eye protection with side shields or goggles and a dust mask. Protect eyes, skin and lungs against drifting spray and during mixing, filling, and cleaning.
- Page 6 NORDIC WARNING: Some spray created from products used with the sprayer contains chemicals known to cause cancer, birth defect of other reproductive harm. Some examples of these chemicals are: • compounds in fertilizers; • compounds in insecticides, herbicides, and pesticides;...
-
Page 7: Additional Safety Instructions For Batteries And Chargers
NORDIC ADDITIONAL SAFETY INSTRUCTIONS FOR BATTERIES AND CHARGERS Use only batteries and chargers applicable for this machine. BATTERIES • Never attempt to open for any reason. • Do not store in locations where the temperature may exceed 40 °C. - Page 8 NORDIC SYMBOLS In this manual and/or on the machine the following symbols are used: Denotes risk of personal injury or damage to the tool. Read manual before use Wear eye protection Wear ear protection Wear safety gloves In accordance with essential requirements of the European directive(s) Class II - The machine is double insulated;...
-
Page 9: Operation
NORDIC OPERATION Before using the equipment: BATTERY CHARGER The lithium-ion battery can be charged at any time and will not develop a “memory” when charged after only a partial discharge. It is not necessary to run down the battery pack charge before recharging. Remove the battery pack from the tool when convenient for you and your job. -
Page 10: Packing List
NORDIC ASSEMBLY OF MAIN UNIT UNPACKING This product requires assembly. • Carefully remove the product and any accessories from the box. Make sure that all items listed in the packing list are included. WARNING: Do not use this product if any parts on the Packing List are already assembled to your ... -
Page 11: Attaching The Hose
NORDIC ATTACHING THE HOSE See Figures 3 - 4. To attach the hose to the tank: • Slide the nut on the hose away from the hose end. • Insert the hose end into the opening on the tank as shown. Make sure the connection is secure. -
Page 12: Filling The Tank
NORDIC FILLING THE TANK See Figure 8. WARNING: Always follow the chemical manufacturer’s instructions printed on their product labeling for use, cleaning, and storage. Clean thoroughly after each use, following the instructions in the Maintenance section of this manual. Chemicals should be stored out of the reach of children. Failure to do so may result in serious personal injury. -
Page 13: Operating Tips
NORDIC • The sprayer may be operated with the handle resting in the handle storage area as shown in figure 10, or you may remove and hold the handle as shown in figure 11. • Aim the sprayer nozzle directly at the plants or objects you wish to spray. - Page 14 NORDIC See this fold-out section for all of the figures referenced in the operator’s manual. Fig.3 Fig.1 Adjustable nozzle Tank Spray wand Hose Trigger with lock-on On/off button Hose end Measuring cap Fig.4 Hose Tank Transparent cover Fig.2 Handle Hose end Hose Fig.5...
- Page 15 NORDIC Fig.6 Fig.8 Depress latches to release battery pack Fig.7 Fill area Measuring Cap Tank Fig.9 Spray wand Trigger with lock-on Adjustable nozzle Handle Tighten for fan spray To release Loosen for stream To lock...
- Page 16 NORDIC Fig.10 Fig.11 Fig.12 Fig.13 Measuring cap Latches Wire Adjustable nozzle Tank Fig.14 Shoulder strap Shoulder strap shaft-1 C. Shoulder strap shaft-2...
