DRONAVIA Zephyr M300 User Manual/Instructions

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Dronavia
USER MANUAL &
INSTRUCTIONS

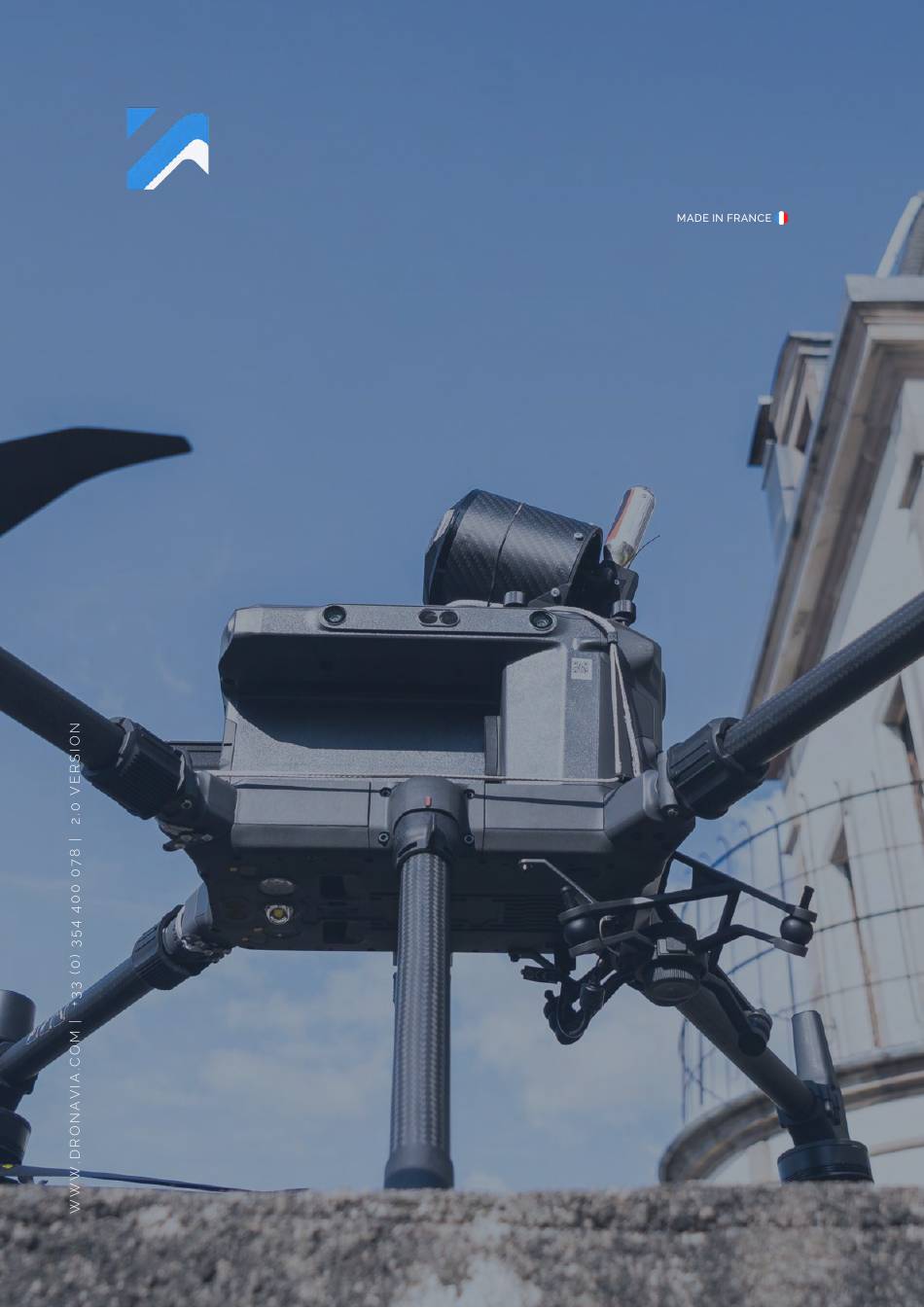

OF THE RESCUE PARACHUTE FOR DJI MATRICE 300
RTK DRONE WITH CO2 RELEASE DEVICE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Zephyr M300 and is the answer not in the manual?

Questions and answers

Related Manuals for DRONAVIA Zephyr M300

Summary of Contents for DRONAVIA Zephyr M300

  • Page 1 Dronavia USER MANUAL & INSTRUCTIONS OF THE RESCUE PARACHUTE FOR DJI MATRICE 300 RTK DRONE WITH CO2 RELEASE DEVICE...

  • Page 2: Table Of Contents

    Summary PRESENTATION OF THE ZÉPHYR M300 ZÉPHYR M300 DRONE PARACHUTE SYSTEM PARACHUTE USAGE PARACHUTE USAGE CEO's words Installation of the safety Activation of the parachute button (optional) drone with (otpional) Presentation of the drone parachute system System release with safety button (optional) Activation (optional)
  • Page 3 Summary OPERATING PROCEDURES & USEFUL LINKS MAINTENANCE Parachute reset Useful links Spring check MORE INFORMATION ABOUT Remote control reset DRONAVIA Parachute module reset More information about Folding of the canvas Dronavia MAINTENANCE AND WARRANTY Parachute storage Specific maintenance Warranty Liability notice...
  • Page 4 YOU HAVE JUST ACQUIRED YOUR ZÉPHYR MATRICE 300 PARACHUTE... At Dronavia, we have been developing since 2015 a wide range of innovative accessories to secure your professional drones. Based in the east of France, we manufacture all our products in our workshop, according to the DGAC standard, ensuring an unmatched quality.
  • Page 5 Based in Remiremont, France, DRONAVIA is at your service to advise you on the purchase of your Matrice 300 parachute and to answer any technical or commercial questions.
  • Page 6 This emergency device does not preserve the integrity of the equipment, nor the damage to property and people, it is a safety element that complements other safety elements. DRONAVIA and its distributors cannot be blamed for any malfunction or operation...
  • Page 7 WARNINGS AND PRECAUTIONS FOR Dronavia may suspend the warranty and disclaim any liability to any person who fails to observe the basic safety instructions set out below. Dronavia accepts no responsibility for damage or injury caused directly or indirectly by the use of CO2 cartridges or by the use of CO2 cartridges that do not meet the safety requirements and standards.
  • Page 8 WARNINGS AND PRECAUTIONS FOR The Zéphyr Matrice 300 parachute is a safety device which, under certain conditions, prevents the free fall of the drone equipped with it. This equipment does not prevent technical problems from occurring on the drone. Any flight with a drone implies the existence of a danger for the equipment and the people in the vicinity, independently of the equipment used.

  • Page 9: The 15 Rules To Respect

    THE 1 5 RULES TO RESPECT IT IS FORBIDDEN TO CARRY OUT ANY MANIPULATIONS OTHER THAN THOSE SPECIFIED IN THE MANUAL. THE DEVICE SHOULD ONLY BE USED BY OR UNDER THE SUPERVISION OF A RESPONSIBLE ADULT. ALWAYS KEEP THE DEVICE OUT OF THE REACH OF CHILDREN.
  • Page 10 THE 1 5 RULES TO RESPECT THE USE OF A ZÉPHYR MATRICE 300 PARACHUTE SHOULD NOT IN ANY WAY INCREASE YOUR RISK- TAKING. THE ZÉPHYR MATRICE 300 PARACHUTE ATTEMPTS TO COUNTERACT THE FREE FALL OF A MALFUNCTIONING UAV. HOWEVER, THERE ARE DROP SITUATIONS WHERE THE EFFECTIVENESS OF THE ZÉPHYR MATRICE 300 PARACHUTE MAY BE LIMITED OR IMPEDED.
  • Page 11 USES OF THE ZÉPHYR M300 PARACHUTE INTRODUCTION In this section you will find all the information you need to use your Zéphyr M300 parachute. The activation of a drone rescue system is not a harmless act. It should only be done in an emergency situation. We remind you that limiting the impact on the ground does not guarantee the preservation of the aircraft, nor the absence of damage to the ground or injury to persons.
  • Page 12 PRESENTATION OF THE COMPONENTS CO2 CARTRIDGE ELECTRONIC & CO2 MODULE CANVAS EJECTION TUBE RESETTING TOOL HANGER SUPPORTS ADDITIONAL ACCESSORIES PROVIDED: REMOTE CONTROL MODULE 1 x Allen key & 1 x Torx key 4 x hand screws for quick assembly of the parachute 4 x spacers / 1 x elastic band (to hold the lines) 1 x USB-C cord to extension port (connecting the parachute to the drone)

  • Page 13: Zéphyr M300

    PRESENTATION OF THE COMPONENTS TECHNICAL CHARACTERISTICS OF THE PARACHUTE ZÉPHYR M300 450G TOTAL WEIGHT (WITH CARTRIDGE) DEVICE CO2 CARTRIDGE EJECTOR FROM MINIMUM HEIGHT EFFICIENCY 15 METERS COMMUNICATION SRD860 WITH RADIO ENCRYPTED KEY WIRELESS JUST TO 1500 RADIO RANGE METRES 5 H (PARACHUTE) AUTONOMY PARACHUTE / RADIO 30 H (RADIO)
  • Page 14 LES PIÈCES DU SYSTÈME THE PARTS OF THE SYSTEM The Zéphyr parachute module contains the system's dedicated electronics, the wireless communication module and a power supply battery independent of that of the UAV. It is composed of an ignition button, located on the back, and an indication LED (Figure The Zéphyr module also integrates the CO2 device consisting of a 16G threaded CO2 cartridge allowing the ejection of the parachute canvas.

  • Page 15: The Parts Of The System

    LES PIÈCES DU SYSTÈME THE PARTS OF THE SYSTEM The remote control module consists of a red adhesive base, an oval ignition button on the back, a triangular parachute release button, an indicator LED, three white battery level LEDs, an extension port on the left side and a USB port on the right side for recharging (Figures 2, 3 &...
  • Page 16 INSTALLATION OF THE PARACHUTE THE ZÉPHYR MATRICE 300 PARACHUTE SYSTEM CAN BE INSTALLED IN A FEW MINUTES. TO INSTALL THE PARACHUTE, PLEASE FOLLOW THESE INSTRUCTIONS IN ORDER: REMOVE THE UPPER SCREWS OF THE 2 FRONT ARMS AND THE LOWER SCREWS OF THE 2 REAR ARMS OF THE DRONE USING THE SPANNER PROVIDED (FIGURES 6 &...

  • Page 17: Parachute Installation

    PARACHUTE INSTALLATION AT THE FRONT A PLASTIC HANGER GUIDE IS TO BE FIXED ABOVE EACH SUPPORT (FIGURE 8). When assembling, place the parachute assembly on top of the drone so that the lines run upwards. FIGURE 8 ATTACH THE 2 LINE BRACKETS TO THE REAR OF THE DRONE (FIGURE 9). Chaque suspente doit être maintenue en place par la vis centrale de chaque support.
  • Page 18 PARACHUTE INSTALLATION LOOSEN THE TWO SCREWS ON THE FRONT OF THE DRONE (FIGURE 10). FIGURE 10 REFIT THESE TWO SCREWS, ADDING THE LINE GUIDES (FIGURE 11). FIGURE 11...
  • Page 19 PARACHUTE INSTALLATION TWO MOUNTING CONFIGURATIONS ARE POSSIBLE FOR THIS PARACHUTE: - MOUNTING ABOVE THE DRONE (REFER TO PARAGRAPH 6.1) - MOUNTING BELOW THE DRONE (REQUIRES AN OPTIONAL BRACKET, REFER TO PARAGRAPH 6.2) MOUNTING ABOVE PLACE THE PARACHUTE SYSTEM (FIRING PIN MODULE TOWARDS THE FRONT OF THE DRONE) USING THE 4 HAND SCREWS MOUNTED ON THE PARACHUTE SUPPORT CARBON PLATE AND SCREW THEM INTO THE 4 INSERTS LOCATED ON THE TOP OF THE DRONE (FIGURES 12 AND 13).
  • Page 20 PARACHUTE INSTALLATION 7.1.2 MOUNTING ABOVE PASS THE TWO FRONT LINES ON EACH SIDE THROUGH THE FRONT GUIDES AND THEN THE REAR LINES THROUGH THE BOTTOM GUIDES. ADJUST THE TENSION OF THE LINES BY PASSING THEM UNDER THE ELASTIC BAND AROUND THE PARACHUTE TUBE (FIGURE 14). FIGURE 14 7.1.3 BE SURE TO TIGHTEN THE CARABINER AND INSERT THE SMALL SAFETY...
  • Page 21 PARACHUTE INSTALLATION BOTTOM MOUNTING UNSCREW THE 4 SCREWS ON THE BOTTOM OF THE DRONE (FIGURE 15). FIGURE 15 USE THE INNER HOLES OF THE OPTIONAL PARACHUTE 7.2.1 MOUNTING PLATE (FIGURE 16). FIGURE 16...
  • Page 22 PARACHUTE INSTALLATION 7.2.2 BOTTOM MOUNTING PLACE THE PARACHUTE SYSTEM (FIRING PIN MODULE FORWARD) USING THE HAND SCREWS PROVIDED IN PLACE OF THE PREVIOUSLY REMOVED SCREWS. DO NOT FORGET THE SHORT SPACERS THAT FIT BETWEEN THE PARACHUTE CARBON PLATE AND THE MATRICE 300 (FIGURE 17). ALWAYS PLACE THE 4 LINES ABOVE ALL OTHER PARTS! FIGURE 17 7.2.3...
  • Page 23 PARACHUTE INSTALLATION OPTIONAL (EXTERNAL FTS): CONNECT THE USB-C CORD TO THE PARACHUTE'S EXTENSION SOCKET TO THE EXTERNAL FTS(FIGURE 19) TO ALLOW THE PARACHUTE TO CHARGE AND AUTOMATICALLY TURN ON WHEN THE DRONE IS TURNED ON. FIGURE 19 OPTIONAL (INTERNAL FTS) BUT REQUIRED IN S3: CONNECT THE BUZZER MODULE TO THE USB-C SOCKET ON THE BOTTOM OF THE DRONE.
  • Page 24 PARACHUTE INSTALLATION INSTALL THE RED ZÉPHYR REMOTE CONTROL BASE ON THE MATRICE 300 RTK REMOTE CONTROL USING THE ADHESIVE PROVIDED (FIGURE 22). BEFORE GLUING THE BASE PERMANENTLY MAKE A TEST OF ITS POSITION. FIGURE 22 INSTALL THE RED ZÉPHYR REMOTE CONTROL BASE ON THE MATRICE 300 RTK REMOTE CONTROL USING THE ADHESIVE PROVIDED (FIGURE 23).
  • Page 25 PARACHUTE ACTIVATION TO ACTIVATE THE PARACHUTE, FOLLOW THESE STEPS IN ORDER: TURN ON THE REMOTE CONTROL MODULE BY PRESSING THE POWER BUTTON (ON THE BACK OF THE RADIO) FOR 2 SECONDS. IF YOU HAVE CONNECTED THE PARACHUTE TO THE DRONE USING THE SUPPLIED CORD, TURN ON THE DRONE AND THE PARACHUTE WILL AUTOMATICALLY TURN ON.

  • Page 26: Zéphyr M300

    YOUR PARACHUTE ZÉPHYR M300 IS ACTIVE & OPERATIONAL!
  • Page 27 PARACHUTE DISASSEMBLY TO REMOVE THE SYSTEM, SIMPLY FOLLOW THE INSTALLATION INSTRUCTIONS IN REVERSE ORDER. THE REMOTE CONTROL MODULE CAN REMAIN INSTALLED ON THE DJI M30 RADIO WITHOUT DISTURBING ITS OPERATION.

  • Page 28: Activation Of The Parachute

    ACTIVATION OF THE PARACHUTE ON A DRONE WITH FTS (OPTIONAL) TO ACTIVATE THE PARACHUTE ON A DRONE EQUIPPED WITH A FTS, FOLLOW THESE STEPS IN ORDER: TURN ON THE REMOTE CONTROL MODULE BY PRESSING THE POWER BUTTON (ON THE BACK OF THE RADIO) FOR 2 SECONDS. TURN ON THE DRONE.

  • Page 29: Without Parachute

    ACTIVATION OF THE FTS (OPTIONAL) FOR A FLIGHT WITHOUT PARACHUTE IT IS POSSIBLE TO ACTIVATE ONLY THE FTS ON A DRONE EQUIPPED WITH A PARACHUTE AND A FTS, FOR EXAMPLE IN A S2 SCENARIO FLIGHT. TO ACTIVATE ONLY THE FTS ON A DRONE EQUIPPED WITH A PARACHUTE WITH A FTS, FOLLOW THESE INSTRUCTIONS IN ORDER: TURN ON THE REMOTE CONTROL MODULE BY PRESSING THE POWER...

  • Page 30: System Status

    SYSTEM STATUS TWO LED INDICATORS ON THE REMOTE CONTROL AND PARACHUTE SIDE HELP YOU CHECK THE SYSTEM STATUS IN REAL TIME. HERE IS A SUMMARY OF THE DIFFERENT STATES: NORMAL OPERATION INITALISATION OF THE SYSTEM OPERATIONAL SYSTEM (FTS ONLY OR PARACHUTE ONLY) FTS ONLY OR PARACHUTE ONLY TRIGGERED OPERATIONAL SYSTEM (FTS &...

  • Page 31: Check The Battery Level On

    CHECK THE BATTERY LEVEL OF THE REMOTE CONTROL FOUR INDICATOR LIGHTS ALLOW YOU TO CHECK THE BATTERY LEVEL OF THE ZÉPHYR REMOTE CONTROL. A SHORT PRESS ON THE REMOTE CONTROL'S POWER BUTTON INDICATES THE REMAINING BATTERY LEVEL ACCORDING TO THE NUMBER OF INDICATORS LIT (FIGURE 25). 100% FIGURE 25...

  • Page 32: Check The Battery Level On

    CHECK THE BATTERY LEVEL OF THE PARACHUTE MODULE A SHORT PRESS ON THE PARACHUTE MODULE'S IGNITION BUTTON INDICATES THE REMAINING CHARGE LEVEL BY THE NUMBER OF TIMES THE INDICATOR FLASHES. LOAD LEVEL OF THE PARACHUTE MODULE : 100%...
  • Page 33 PARACHUTE RELEASE TO ACTIVATE THE PARACHUTE, FOLLOW THESE INSTRUCTIONS: NEVER ATTEMPT TO ACTIVATE THE PARACHUTE ON THE GROUND. REFER TO THE "SYSTEM MAINTENANCE" CHAPTER ON PAGE 41, IF NECESSARY. THE ZÉPHYR MATRICE 300 PARACHUTE IS DESIGNED TO BE ACTIVATED AT A MINIMUM HEIGHT OF 15M / GROUND IN STANDARD ATMOSPHERIC CONDITIONS.

  • Page 34: Parachute Release

    PARACHUTE RELEASE IN ORDER TO KEEP THE POSSIBILITY OF TRIGGERING THE PARACHUTE AT YOUR FINGERTIPS AND TO BE AS REACTIVE AS POSSIBLE, A SIMPLE GESTURE ALLOWS YOU TO TRIGGER THE PARACHUTE SYSTEM AND TO CUT THE MOTORS (IF A FTS IS INSTALLED) OF THE MATRICE 300 RTK. SIMPLY PRESS THE TRIANGULAR BUTTON ON THE REMOTE CONTROL.

  • Page 35: System Shutdown

    SYSTEM SHUTDOWN TO STOP, TURN OFF AND RESET THE PARACHUTE, FOLLOW THESE STEPS IN ORDER: TURN OFF THE PARACHUTE MODULE BY HOLDING DOWN THE IGNITION BUTTON FOR 5 SECONDS. TURN OFF THE REMOTE CONTROL MODULE BY HOLDING DOWN THE POWER BUTTON FOR 5 SECONDS. TURN OFF THE DRONE.

  • Page 36: Remote Control

    CHARGING THE BATTERY OF THE REMOTE CONTROL TO CHARGE THE REMOTE CONTROL BATTERY, SIMPLY CONNECT A MICRO USB CABLE TO THE MICRO USB SOCKET ON THE RIGHT AND CONNECT THE CABLE TO A COMPUTER (FIGURE 28). THE STATUS LED WILL TURN SOLID YELLOW TO INDICATE CHARGING AND SOLID GREEN ONCE THE BATTERY IS FULLY CHARGED.
  • Page 37 CHARGING THE PARACHUTE BATTERY TO CHARGE THE PARACHUTE BATTERY, SIMPLY CONNECT A MICRO USB CABLE TO THE MICRO USB SOCKET NEAR THE IGNITION SWITCH AND CONNECT THE CABLE TO A COMPUTER (FIGURE 29). THE STATUS LED WILL CHANGE TO A SOLID YELLOW TO INDICATE CHARGING AND TO A SOLID GREEN ONCE THE BATTERY IS FULLY CHARGED.
  • Page 38 INSTALLATION OF THE SAFETY BUTTON (OPTIONAL) YOU HAVE THE OPTION TO PURCHASE AND INSTALL AN OPTIONAL SAFETY BUTTON. THE SAFETY BUTTON ADDS A SECOND RELEASE BUTTON TO THE SYSTEM TO PREVENT UNWANTED TRIGGERS FROM INADVERTENTLY PRESSING THE RELEASE BUTTON ON THE ZÉPHYR REMOTE. THE SECURITY BUTTON COMES WITH A CONNECTION CABLE, TO CONNECT IT TO YOUR ZÉPHYR REMOTE CONTROL, SIMPLY CONNECT THE CABLE BETWEEN THE SECURITY BUTTON AND THE REMOTE CONTROL (FIGURES 30, 31, 32 &...
  • Page 39 INSTALLATION OF THE SAFETY BUTTON (OPTIONAL) FIGURE 32 FIGURE 33 Check before each take-off that the safety button is correctly connected to the zéphyr remote control.
  • Page 40 INSTALLATION OF THE SAFETY BUTTON (OPTIONAL) THE ZÉPHYR REMOTE CONTROL AND THE SAFETY BUTTON CAN BE POSITIONED ON THE MATRICE 300 RTK REMOTE CONTROL AS SHOWN IN FIGURE 34 BELOW. FIGURE 34...
  • Page 41 SYSTEM RELEASE WITH SAFETY BUTTON (OPTIONAL) IF YOUR ZÉPHYR REMOTE CONTROL IS EQUIPPED WITH AN OPTIONAL SECURITY BUTTON, SIMPLY PRESS THE TWO TRIANGULAR BUTTONS ON THE REMOTE AND THE SECURITY BUTTON SIMULTANEOUSLY. FOR SAFETY REASONS, IT IS NECESSARY TO HOLD THE POSITION FOR AT LEAST 1/2 SECOND UNTIL THE LED FLASHES GREEN RAPIDLY AND TO ENSURE THAT THE CONTACTS ARE MADE CORRECTLY (FIGURE 35).
  • Page 42 ADJUSTMENT OF THE ORIGINAL FLYCASE TO CARRY THE PARACHUTE (OPTIONAL) IT IS POSSIBLE TO ADAPT THE ORIGINAL CASE TO CARRY THE PARACHUTE AND THE DRONE IN IT. SIMPLY CUT AND REMOVE THE ORIGINAL WALLS AS SHOWN BELOW (FIGURE 36 & 37). FIGURE 36 FIGURE 37...
  • Page 43 ADJUSTMENT OF THE ORIGINAL FLYCASE TO CARRY THE PARACHUTE (OPTIONAL) TO TRANSPORT THE PARACHUTE IN THE ADAPTED CASE, IT IS NECESSARY TO DISASSEMBLE IT BY LOOSENING THE 4 HAND SCREWS WHICH FIX IT TO THE DRONE, THEN, WHILE LEAVING THE LINES ATTACHED TO THE DRONE, IT IS NECESSARY TO PLACE THE CO2 CARTRIDGE PARACHUTE DOWNWARDS AS SHOWN BELOW (FIGURES 37, 38 &...
  • Page 44 DANGEROUS WE ADVISE YOU TO OPT FOR THE MANUFACTURER'S MAINTENANCE SERVICE THAT DRONAVIA OFFERS. IF YOU WISH TO DO IT YOURSELF, DRONAVIA DISENGAGES ITS RESPONSIBILITY FOR THE SYSTEM, IN ADDITION TO CANCELLING THE WARRANTY IF YOU CHOOSE TO REARM THE SYSTEM YOURSELF.
  • Page 45 PREVENTIVE MAINTENANCE YOU SHOULD CARRY OUT PREVENTIVE MAINTENANCE ON YOUR PARACHUTES EVERY YEAR. CHANGE THE SPRING EVERY YEAR. A SPRING THAT HAS BEEN LEFT IN COMPRESSION FOR TOO LONG WILL GRADUALLY LOSE ITS ELASTICITY. IT IS THEREFORE RECOMMENDED TO REPLACE IT PREVENTIVELY IN ORDER TO MAINTAIN AN OPTIMAL PERCUSSION SPEED WITH THE CO2 CARTRIDGE.
  • Page 46 POST-DISARMMENT MAINTENANCE YOU MUST CARRY OUT POST-TRIGGER MAINTENANCE AFTER EACH ACTIVATION OF YOUR PARACHUTES. THE CO2 CARTRIDGE MUST BE REPLACED AFTER EACH ACTIVATION (SEE CO2 CARTRIDGE REPLACEMENT). CHECK THE TIP OF THE HARDENED STEEL FIRING PIN. THE IMPACT OF THE FIRING PIN ON THE LID OF THE CO2 CARTRIDGE CAN WEAR OUT THE TIP AND MAKE IT LESS PROMINENT.
  • Page 47 THIS PACKAGE ALSO COVERS THE RETURN TRANSPORT COSTS FOR THE PARACHUTE SYSTEM AND ITS REMOTE CONTROL. BUILDER MAINTENANCE RATE: 130 € EXCL. FOR ANY MAINTENANCE REQUEST, PLEASE CONTACT DRONAVIA AT 03 54 40 00 78 OR BY E-MAIL AT ATELIER@DRONAVIA.COM.
  • Page 48 PROCÉDURES CO2 CARTRIDGE REPLACEMENT OPÉRATIONNELLES THE CO2 CARTRIDGES ARE SINGLE-USE AND MUST BE CHANGED AFTER USE. THE NEW CARTRIDGE MUST BE INSTALLED IN LINE WITH THE FIRING PIN. WE RECOMMEND THE USE OF ZÉFAL 16G CO2 CARTRIDGES, WHICH HAVE THE FOLLOWING TECHNICAL CHARACTERISTICS: TYPE CO2 CARTRIDGE...
  • Page 49 PROCÉDURES CO2 CARTRIDGE REPLACEMENT OPÉRATIONNELLES MAKE SURE TO KEEP THE CO2 CARTRIDGE AT A TEMPERATURE BELOW 45°C DO NOT LEAVE FULL CARTRIDGES IN THE CAR WHEN THE TEMPERATURE IS TOO HIGH. IN CASE OF PROLONGED INACTIVITY, STORE YOUR CO2 CARTRIDGES AT NORMAL TEMPERATURES OF 10 TO 20°C.

  • Page 50: Parachute Reset

    AFTER A TRIP, THE SYSTEM CAN BE REUSED IF IT IS RESET ACCORDING TO THE FOLLOWING PROCEDURE, BUT IF THIS IS NOT DONE CORRECTLY, IT MAY NOT WORK PROPERLY. THEREFORE, DRONAVIA ADVISES YOU TO RETURN THE SYSTEM FOR A FACTORY RESET AND DISCLAIMS ITS RESPONSIBILITY FOR THE SYSTEM, IN ADDITION TO VOIDING THE WARRANTY IF YOU CHOOSE TO RESET THE SYSTEM YOURSELF.
  • Page 51 PROCÉDURES PARACHUTE RESET OPÉRATIONNELLES TO RESET THE SYSTEM, PLEASE FOLLOW THESE STEPS IN ORDER: TURN OFF THE PARACHUTE MODULE AND THEN THE REMOTE- CONTROL MODULE. REMOVE THE CO2 CARTRIDGE (FIGURE 41). INSERT THE RESET TOOL INTO THE HOLE LEFT BY THE CO2 CARTRIDGE (FIGURE 42). FIGURE 41 FIGURE 42...
  • Page 52 PROCÉDURES PARACHUTE RESET OPÉRATIONNELLES SCREW THE TOOL IN AS FAR AS IT WILL GO (FIGURE 43). A FORCE MUST BE APPLIED AGAINST THIS OPERATION. FIGURE 43 SWITCH ON THE REMOTE CONTROL AND THE ELECTRONIC MODULE. WAIT FOR THE INITIALIZATION OF THE LATTER. THE FORCE DESCRIBED ABOVE SHOULD DISAPPEAR AND THE LED ON THE MODULE SHOULD BLINK GREEN (IF THIS IS NOT THE CASE, REPEAT STEPS 4 AND 5 UNTIL THE FORCE DISAPPEARS AND THE LED BLINKS GREEN)

  • Page 53: Spring Check

    PROCÉDURES SPRING CHECK OPÉRATIONNELLES TO CHECK THE SYSTEM'S SPRING OR PERCUSSION TIP, FOLLOW THESE STEPS IN ORDER: TURN ON THE REMOTE CONTROL MODULE AND THEN THE PARACHUTE MODULE. REMOVE THE CO2 CARTRIDGE. INSERT THE ARMING TOOL AS FAR AS IT WILL GO, HOLDING IT FIRMLY IN PLACE.

  • Page 54: Remote Control Reset

    PROCÉDURES REMOTE CONTROL RESET OPÉRATIONNELLES TO RESET YOUR REMOTE CONTROL, FOLLOW THESE STEPS : IN CASE OF A MALFUNCTION, A BUG OR IF THE SYSTEM DOES NOT RESPOND ANYMORE, A RESET MANOEUVRE ON THE REMOTE CONTROL CAN SOLVE YOUR PROBLEM. TO RESET THE REMOTE CONTROL, YOU WILL FIND A SMALL HOLE ON THE LEFT SIDE (FIGURE 44).

  • Page 55: Parachute Module Reset

    PROCÉDURES PARACHUTE MODULE RESET OPÉRATIONNELLES RESET OF REMOTE CONTROL AND PARACHUTE MODULE : TO RESET THE PARACHUTE MODULE, THE RESET BUTTON IS LOCATED ON THE BACK OF THE PARACHUTE MODULE (FIGURE 45). SLIP A PAPER CLIP OR OTHER THIN OBJECT INTO THE BUTTON AND A SHORT PRESS WILL RESET THE PARACHUTE.

  • Page 56: Folding Of The Canvas

    CRITERIA AND A DEFINED CHRONOLOGY. IF YOU DO NOT FEEL CAPABLE OF DOING THIS, WE STRONGLY ADVISE YOU TO CALL ON COMPETENT OR SPECIALISED PEOPLE, OR TO CONTACT DRONAVIA FOR A WORKSHOP RETURN. BEFORE FOLDING, TAKE THE OPPORTUNITY TO :...

  • Page 57: Maintenance And

    WITHOUT SOAP AND THEN DRIED. GUARANTEE DRONAVIA TAKES GREAT CARE IN THE DESIGN AND PRODUCTION OF ITS PRODUCTS. WE GUARANTEE OUR PARACHUTES FOR ONE YEAR FROM THE DATE OF PURCHASE AGAINST ANY DEFECT OR DESIGN FAULT THAT MAY OCCUR IN THE COURSE OF NORMAL USE OF THE PRODUCT.

  • Page 58: Useful Links

    USEFUL LINKS FOR FRANCE, WE RECOMMEND THAT YOU CONSULT THE WEBSITE OF THE MINISTRY ECOLOGY, SUSTAINABLE DEVELOPMENT AND ENERGY IF YOU HAVE ANY DOUBTS OR QUESTIONS. WEBSITE OF THE MINISTRY OF ECOLOGY & SUSTAINABLE DEVELOPMENT AND ENERGY http://www.developpement- durable.gouv.fr/quelle-place-drones-dans-ciel- francais DETAILS OF THE ORDER OF 11/04/2012 : https://www.legifrance.gouv.fr/affichTexte.do? cidTexte=JORFTEXT000025834986...
  • Page 59 MORE ABOUT DRONAVIA AT DRONAVIA, WE HAVE BEEN DEVELOPING A WIDE RANGE OF INNOVATIVE ACCESSORIES TO SECURE YOUR PROFESSIONAL DRONES SINCE 2015. BASED IN THE EAST OF FRANCE, WE MANUFACTURE ALL OUR PRODUCTS IN OUR WORKSHOP, IN ACCORDANCE WITH THE DGAC STANDARDS, ENSURING AN UNRIVALLED QUALITY.
