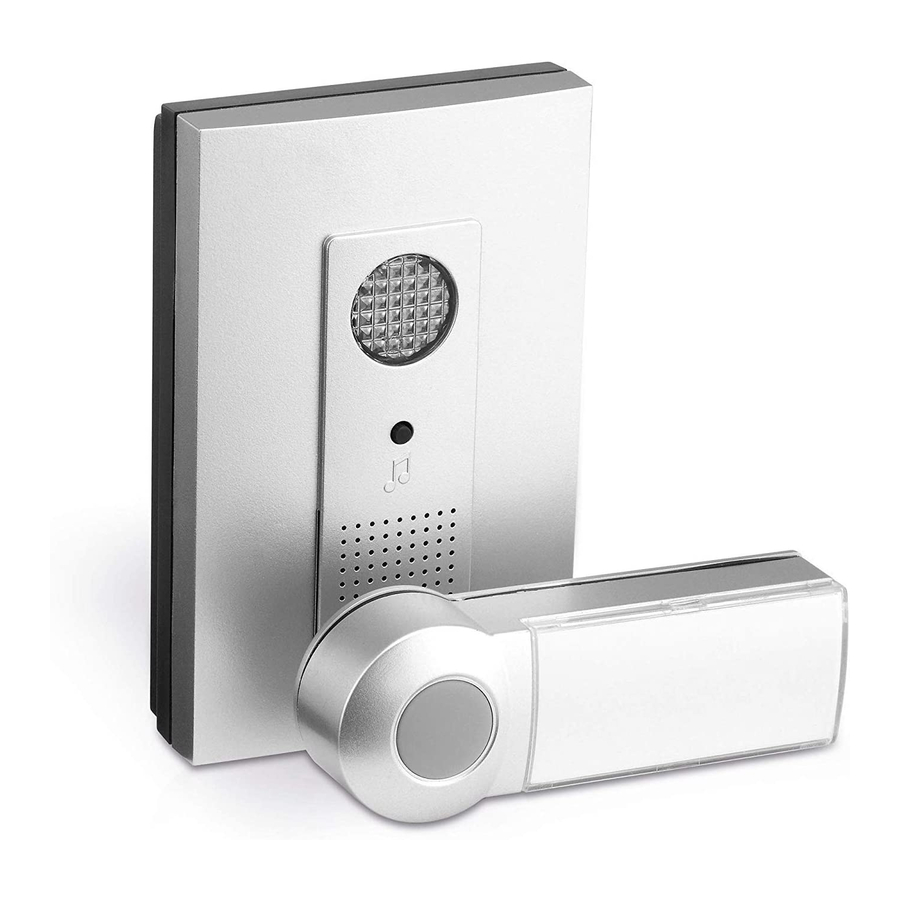

Conecto CC50231 - Wireless Doorbell Set Manual

GENERAL NOTES

Read this user's manual completely and carefully. It is part of the product and contains important notes for operating. Keep this document for other users or for personal reference.

DELIVERY CONTENT

1 Bell with power plug
1 Bell button
1 Battery for the bell button
Mounting material (wall plug, screws & sealing rings)
User Manual

SAFETY INSTRUCTIONS

• Make sure that all electrical connections, such as cable connections, comply with to the relevant policies
• ATTENTION! Do not overload power outlets and extensions; this can cause fire or an electric strike.
• If you are facing any trouble with using the device, or if you have any safety issues, please contact an expert.
• Keep out of the reach of children.
• Avoid hard impacts, this can lead to damaging the electronic circuits.
• Never replace damaged power leads yourself! Please remove the devices from the mains and contact a specialist company/ dealer.
• Opening and repairing the device must be performed only by an authorized specialist.
• Wireless systems could be affected by phones, microwaves and other electronic devices that are operating within the installation and operation of the device.

SPECIFICATIONS

COMMISSIONING

SET UP BELL BUTTON

Please pay attention to power lines, gas and water pipes during installation.

NOTE: The installation of the transmitter to a metal surface (e. g. door frame made of metal) can reduce the transmitter power.

1. Drill holes in the wall and insert the dowels.
2. Carefully open the cover with a screwdriver by pushing the retaining collar inside.
3. Supply the back of the cover with the sealing rings included in delivery, before you mount the cover at the frontage.
4. Insert the battery. Pay attention to the correct polarity and a centred placing of the battery.
5. Close the cover by clipping the round side first and locking the angled side with the retaining collar afterwards. Make sure that the seal is placed correctly.

NOTE: If the frontage is very coarse-grained we recommend an additional sealing of the back (e. g. with acrylic). Thereby you can prevent that water enters the case at the backside.

SET UP RECEIVER

6. Remove the battery cover and insert 3 pieces of Batteries AA 1.5V DC into the cabinet. When the bell is heard, it means the installation was successful.


PAIRING

7. After installing the receiver with the batteries, the bell rings 2 times and is for the next 30 seconds in the pairing mode. It connects automatically to the bell button. And then the bell is ready for operation.


MELODY SELECTION

8. You can switch between 16 different melody by pressing the "♫" button on the receiver.


Three Function Mode

1. only melody
2. melody + flash
3. only flash

Three Volume Choices

1. volume high
2. volume medium
3. volume low

PAIRING RESET

9. To reset the pairing memory, just put the receiver into the pairing mode by removing and placing batteries again.

After the bell rings 2 times, press the "Delete" button inside the housing of the transmitter and when it rings twice again, it means that the pairing memory has been reset successfully.

IP PROTECTION CLASSES

INTERNATIONAL PROTECTION CLASSES ACCORDING TO DIN EN 60529 (IEC 529/VDE 047 T1)

Diagrams in accordance with DIN EN 60259

An additional letter K can be used for the second index figure for classes 4 and 6 to indicate higher requirements for road vehicles.

COUNTRY OF DESTINATION

Germany
Austria

MAINTENANCE

The device is maintenance-free, so please do not open the device. You will invalidate your warranty if you open up the device. Clean the outside with a soft, dry cloth or a brush.

Do not use any cleaning products that contain carbonic acid, benzene, alcohol or similar substances. Such substances attack the surface of the device and their vapours are also hazardous to health and explosive. Do not use sharp edged tools, screwdrivers, wire brushes or similar to clean the device.

COMPLIANCE

Please dispose of this product by taking it to your local collection point or recycling center for such equipment. This will help to protect the environment in which we all live.

CE CONFORMITY

SatChef GmbH hereby declares that the CC50231 radio communication system complies with Directive 2014/53/EU.
The full text of the EU Declaration of Conformity is available at the following internet address: www.satchef.de

Before putting the product into operation please observe the respective countryspecific regulations!

SatChef GmbH
Zillenhardtstr. 41
73037 Göppingen
Germany

www.satchef.de

WEEE Reg.-No.: DE 85 375 348
