DERUN LIGHTING TECHNOLOGY CO., LTD
Part No: DR-CON-IR20M-3CH-LV

Summarization

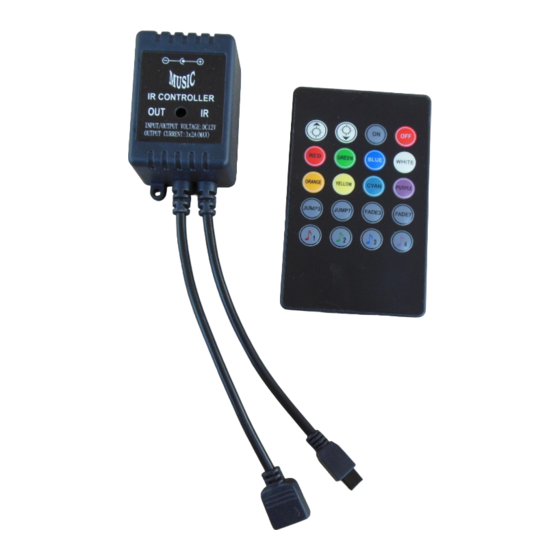

20 key infrared music LED controller adopts the advanced micro control unit. It is used for controlling a variety of
LED lamp. For instance, point-source light, flexible strip light, wall washer light, glass curtain wall light and so on,
it has many advantages such as low cost, convenient connection and ease of use. Meanwhile you could adjust
brightness, static colors and color changing effects via infrared remote control, when it is in sound control-mode,
the colors will changs with the music rhythm.
Technical Prameters:
●working-temperature: -20-60
●output: 3 circuit
●ecternal dimension: L63*W35*H22mm
●net weight:50g
●maximum current:4A
●output current: 2A

Remote control functions

button
Function
When in static mode(default): to adjust the brightness(16 grades)
When in jump3, jump7,fade3, fade7 mode: to adjust the light flashing rate(8 grades)
Web:
www.derunledlights.com
User manual
℃
●input voltage:DC12-24V
●connection mode: common anode
●packing size:L88*W65*H40mm
●gross weight:66g
●static power loss: <1W
●output power: 72W
Email: info@derunledlights.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DR-CON-IR20M-3CH-LV and is the answer not in the manual?

Questions and answers

Summary of Contents for DERUN LIGHTING TECHNOLOGY DR-CON-IR20M-3CH-LV

  • Page 1 DERUN LIGHTING TECHNOLOGY CO., LTD User manual Part No: DR-CON-IR20M-3CH-LV Summarization 20 key infrared music LED controller adopts the advanced micro control unit. It is used for controlling a variety of LED lamp. For instance, point-source light, flexible strip light, wall washer light, glass curtain wall light and so on, it has many advantages such as low cost, convenient connection and ease of use.
  • Page 2 DERUN LIGHTING TECHNOLOGY CO., LTD When in music mode: to adjust the sensitivity of receiving music On/Off Turn on /off the controller Red/green/blue To select corresponding static color White/orange Yellow/cyan/purple Jump3 3 colors jump changing Jump7 7 colors jump changing...
