PC2 Power Controller
Reference Guide
OVERVIEW
The PC2 Power Controller has two independently controlled 240V AC power outlets designed to
suit power switching
applications.
An internal 12V DC power supply provides power to drive two opto-isolated 12 Amp power relays
with a maximum load for both outlets fused at 10 Amps. Control inputs, typically from low voltage
relays or switches, connect easily to the captive screw terminal block located on the opposite side to the
Power outlets on the power controller.
By providing a latched contact to O/P1 and O/P2 in respect to GND, equipment plugged into Outputs
1 & 2 respectively will be powered on.

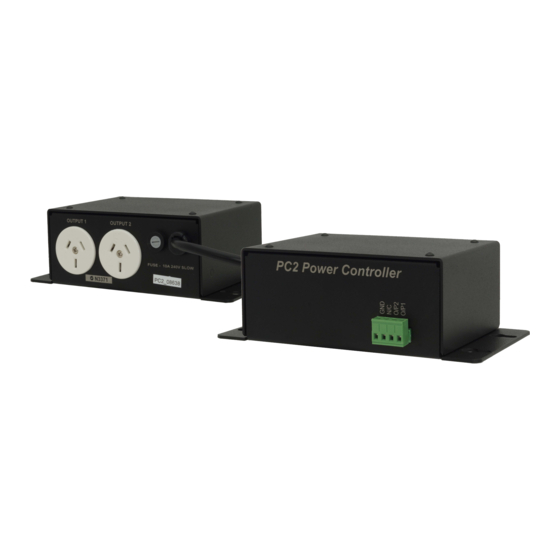

Housed in a compact metal enclosure with a textured black powder coated finish, the power controller
can be easily fastened to any flat surface using the keyhole-shaped slots in the flanges.
• 2 x 12 Amp power relays (total current - 10 Amps)
• Latching low voltage input control
• Simple plug and socket (2) connection to 240V AC
requirements
for
audio-visual,
Sales Enquires 1800 00 77 80
www.madisonav.com.au
commercial,
industrial or domestic
Advertisement
Table of Contents
Summary of Contents for Madison AV PC2
- Page 1 PC2 Power Controller Reference Guide OVERVIEW The PC2 Power Controller has two independently controlled 240V AC power outlets designed to suit power switching requirements audio-visual, commercial, industrial or domestic applications. An internal 12V DC power supply provides power to drive two opto-isolated 12 Amp power relays with a maximum load for both outlets fused at 10 Amps.
- Page 2 SETUP Input Wiring O/P1 Latching switch or relay O/P2 Install Latching switch or relay contacts as shown SPECIFICATIONS Power Control - 12V DC with a maximum of 10mA/contact Outlets - 240V AC 10A (max.all relays on) Case Size 60mm x 100mm x 185mm (HWD) Weight 0.6 kg Mounting...
