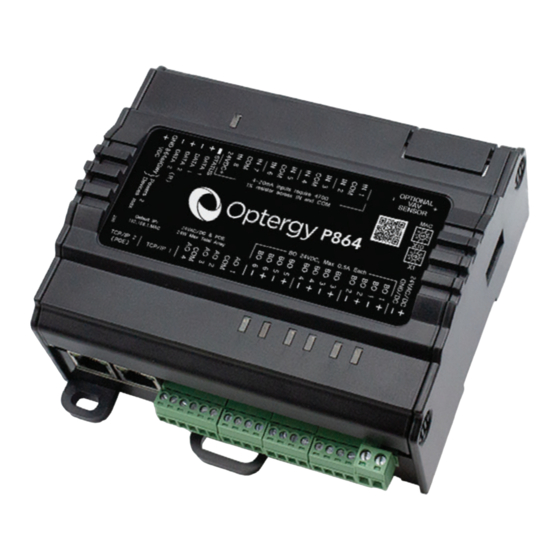

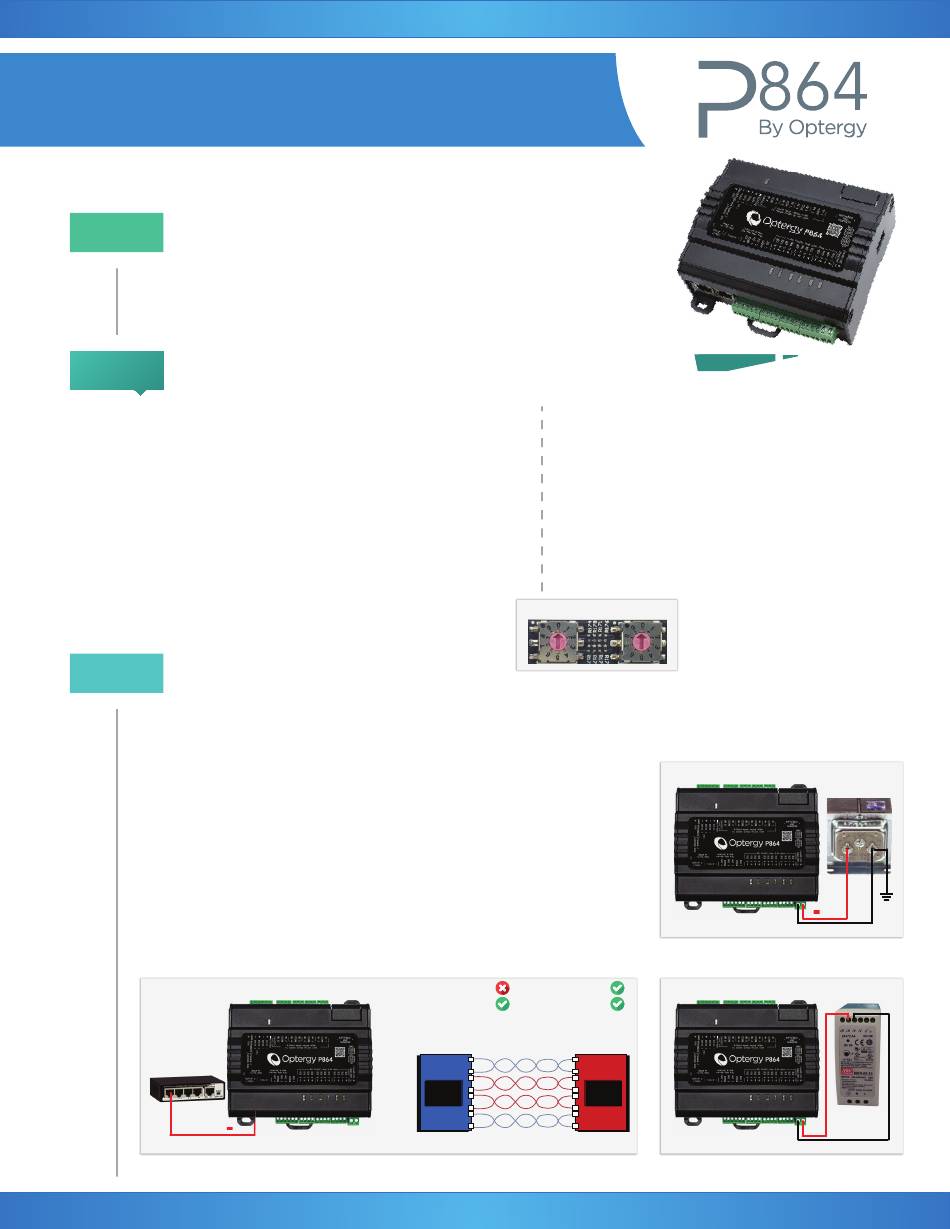

Optergy P864 Start-Up Instructions

P864 Startup Instructions
A quick guide to set up your hardware and software.
1 Unbox hardware
• The P864 default configuration has BACnet IP enabled and MS/TP.
Routing is disabled. This means it will scan on IP and/or MSTP.
• Remove the real time clock battery isolator tape.
Set the BACnet MS/TP
2
MAC address
• The MAC address is configured using the 2
rotary switches underneath P864 top cover.
• To release the hinged cover press round
plastic buttons inward and hinge the cover
open.
• To set the MAC address, rotate the switches
to the desired locations.
e.g. to set MAC address 25, move the X10
rotary switch to position 2 and the X1 rotary
switch to position 5.
• MAC address range is 0-99, note: 0-0 is 99.
3 Connect Power
Warning: Internally this device uses a 24 VAC half-wave rectifier and can only share the same AC
power supply as other half-wave rectified devices.
P864 Power can be supplied by:
• 24 VAC ½ wave (grounded secondary) 24 W max.
Refer to Figure 1.
• 24 VDC Power Supply 24 W max. Refer to Figure 2.
• PoE+ (Power over Ethernet). Refer to Figure 3.
P864 has an onboard 24VDC power supply:
• Stay within power budget (24 W).
Figure 3
Power over Ethernet (PoE)
18 Watts
TCP 2 (PoE+) TCP 2 (PoE+)
P864INRev2.0 | © 2020 Optergy
o 802.3 at, Type 2, Mode A or B.
o Not compatible with 802.3 af
o P864 PoE+ on TCP/IP 2
o PoE+ can be loaded up to 24 W max.
P864 Rev1
P864 Rev2
Pins 1,2+ Voltage
Equipment
OR Set the BACnet IP & Set the BACnet IP &
TCP/IP Address
• The IP address is configured using the 2
rotary switches underneath the P864 top
cover.
• To set the IP address, rotate the switches
to the desired locations
e.g. to set IP address to 192.168.1.20,
move the X10 rotary switch to position 2
and the X1 rotary switch to position 0.
• Switch positions allow for settings 1-100,
note: 0-0 is 100.
x10
P864 Rev1
P864 Rev2
Mode A Mode B
Pins 7,8+
3,6- 4,5-
1 1
2 2
4 4
Power
5 5
Powered
Sourcing
7 7
Device
8 8
3 3
6 6
Blue = Data Red = Power
MODE B 10/100 TX only
page 1 of 2
x1
Figure 1
24 VAC/GND
Figure 2
info@optergy.com | www.optergy.com
Ground
24 VAC 24 VAC
24 VDC +
24 VDC -
