- Page 1 MICRO GROW GREENHOUSE SYSTEMS, INC 26111 YNEZ RD., SUITE C-4, TEMECULA, CA 92591 PHONE (951)-296-3340 FAX (951)-296-3350 Revision 1.3, 8/30/04 Ventmate Plus...
-
Page 2: Installation Procedures
1/6 H.P. CUSTOM CONTACTOR AND RELAY PANEL AVAILABLE A custom-built load contactor and load relay panel is available from Micro Grow Greenhouse Systems, Inc. This panel will contain all the required switching apparatus for your project, as well as a correctly sized machine tool transformer. -
Page 3: System Testing
These are readily available from Micro Grow Greenhouse Systems, Inc. Generally these separate control boxes feature overcurrent protection for the particular motor on the vent or shade system, provisions for direct limit switch connections, and a manual means of operating the vent or shade system independent of the main control system. -
Page 4: Programming Switches

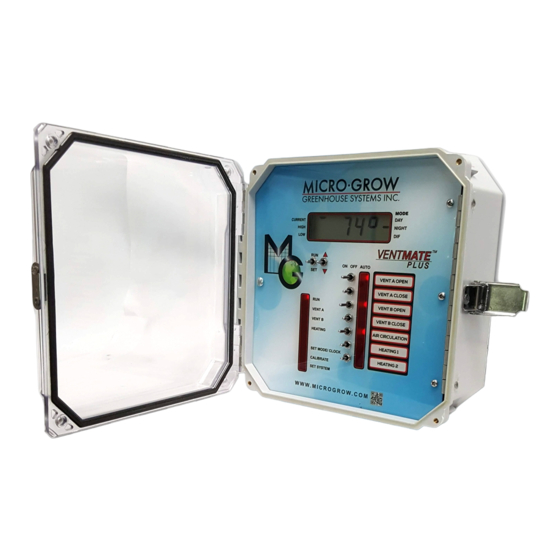

PROGRAMMING SWITCHES There are two main programming switches located on the Ventmate Plus front panel. These are: RUN-SET SWITCH RUN - Returns the control to the run mode. SET-Advances through the program lights to program the system. VALUE SWITCH UP-Increases the value of the displayed item. DOWN-Decreases the value of the displayed item. - Page 5 NIGHT TEMPERATURE SETPOINTS: 1. Continue to toggle the SET switch down until the NIGHT MODE indicator on the LCD display is flashing on the LCD display along with either the VENT A, VENT B or the HEATING light, release the switch. 2.
-
Page 6: Run Mode
input. Use the VALUE switch to raise or lower the flashing value. If an override is not being used, ignore this step. TO SET SAFETY DELAY: A safety delay is the amount of time that your particular vent motor waits to operate upon being sent a signal. -
Page 7: Dip Switch Settings
DIP SWITCH SETTINGS The control system allows for customization of temperature separations and differentials between stage operations. These are determined by the settings of the DIP switches located on the inside of the circuit board of the control. Refer to the drawing of the actual control connections to set these DIP switches. - Page 8 THE DISPLAY WILL ALTERNATE BETWEEN THE CURRENT TEMPERATURE, AND THE HIGHEST AND LOWEST READING DURING THE LAST 24 HOURS. THE CURRENT VENT POSITION, TIME OF DAY AND MODE IS ALSO DISPLAYED. EASY FRONT PANEL TOGGLE SWITCHES FOR PROGRAMMING AND CALIBRATION. EACH OUTPUT HAS A FRONT PANEL MOUNTED SWITCH TO SELECT THE MODE OF...
- Page 9 . . / 0 1 . 2 3 4 . ! " & % "...
- Page 11 , & &...
- Page 12 & # & # & # * + ,-. ( . / 0 1 ) 2 * ) 3 -4 . ( / 0 5 ) -( ) + ,0 3 -,6 ) 3 ) 7/ 8 * ) 9) : -4 -( ) ) / -( ) :* -/ - 6 / 0 2 / 7 "...
-
Page 13: Limited Warranty
Micro Grow Greenhouse Systems, Inc. warrants that all of the products Micro Grow Greenhouse Systems, Inc. manufactures are free from defects at the time of shipment by Micro Grow Greenhouse Systems, Inc. This warranty covers defects in workmanship and materials. No warranty is extended on any parts, materials, or components manufactured by others and purchased by Micro Grow Greenhouse Systems, Inc., and any warranty on these materials is limited to the warranty supplied...
