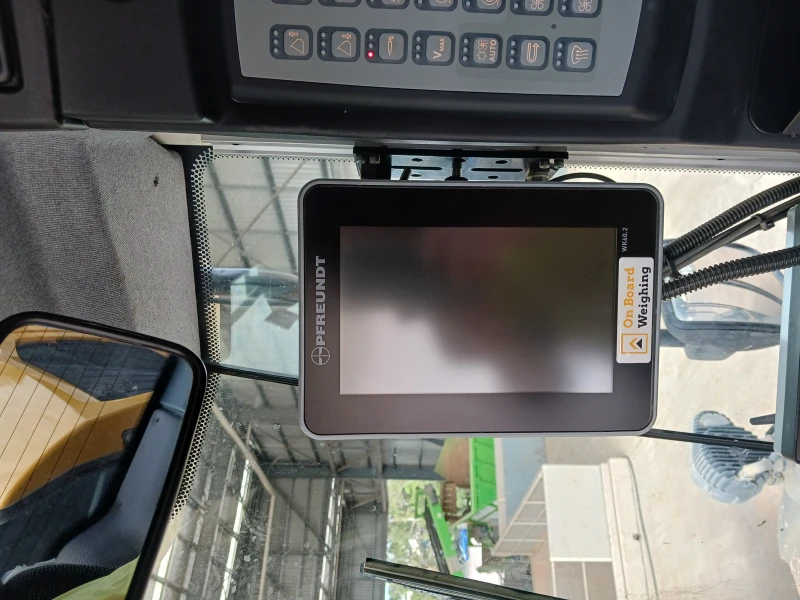

Summary of Contents for PFREUNDT WK60 Series

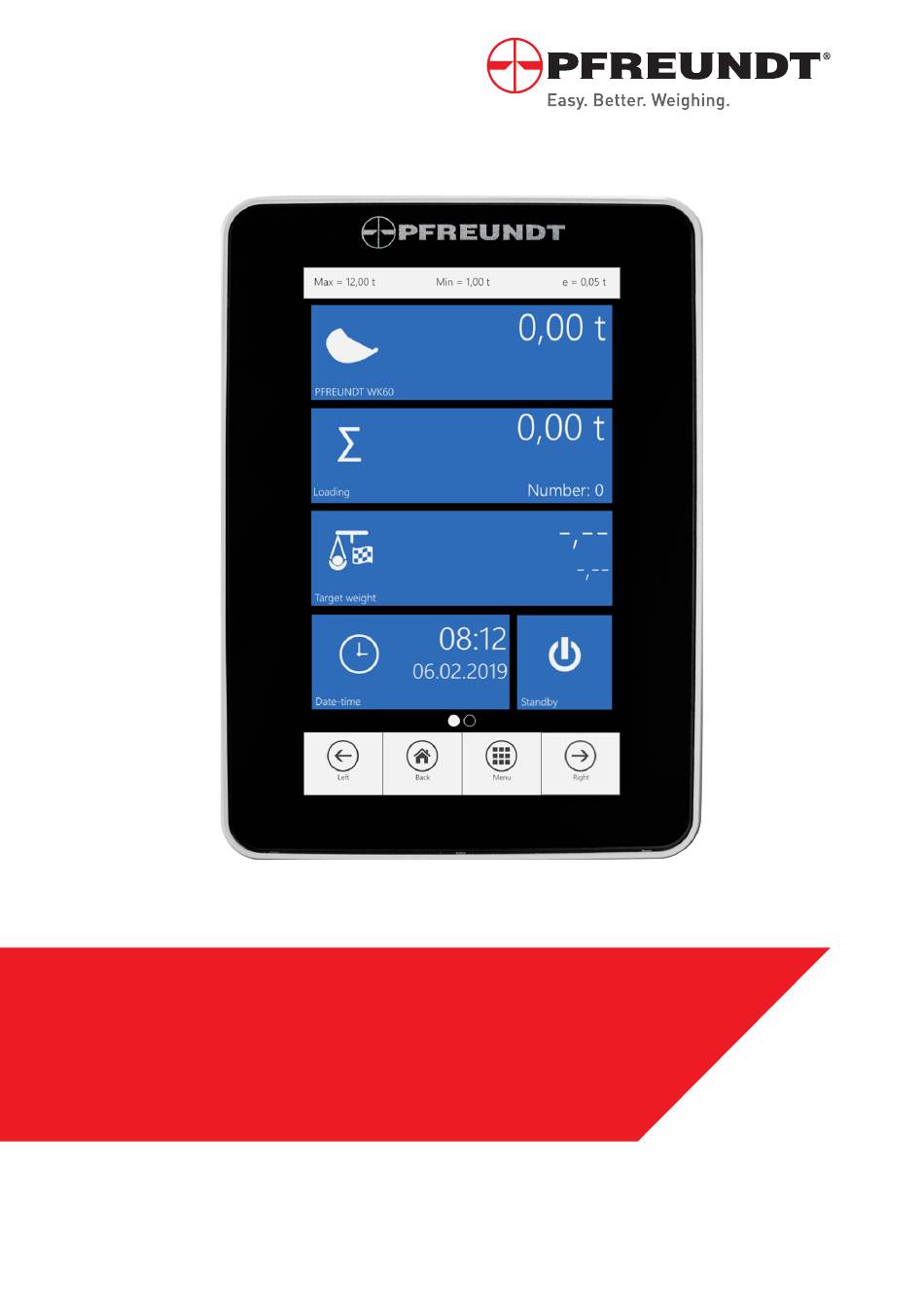

- Page 1 Operating Manual Wheel loader- / telescopic handler- and forklift scale WK60 series Valid from program version: 1.1.60 (N1 measuring principle) / 1.3.62 (SWT measuring principle) Document no.: WK60-RAD-BA-H-2022.01-EN English (US) (translation of the original German manual)
-
Page 2: Using This Manual
1.1 Hazard symbols in this manual Danger point or hazardous situation 1.2 Symbols and illustrations used Symbol Description Steps to take • Listing a) or 1) Lists Figure no. Photos and drawings are numbered Additional information Please read the relevant manual www.pfreundt.de... -
Page 3: Safety Notes
Inadequate maintenance can endanger persons due to undetected damage to the scale. • Inspect the scale and all associated components for damage regularly. • Have damaged components replaced by PFREUNDT Service. 2.1 Intended use (for legal-for-trade scales) The scale is designed for use on: •... - Page 4 The fee for the services pursuant to §5 (1), No. 12 of the MessEV will be adjusted every three years to reflect price developments and published in the Federal Ga- zette by the PTB [National Metrology Institute of the Federal Republic of Germany]. www.pfreundt.de...
- Page 5 Changes or modifications made to this equipment not expressly approved by PFREUNDT GmbH may void the FCC authorization to operate this equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
- Page 6 Overloading transport vehicles is life-threatening. Overloaded transport vehi- cles are unsafe in traffic. • Obtain information about permissible loading of such vehicles and comply strictly with such limits. • Avoid improper weighing by, for example, ensuring the correct position of the vehicle during weighing. www.pfreundt.de...
-
Page 7: Switching On The Scale

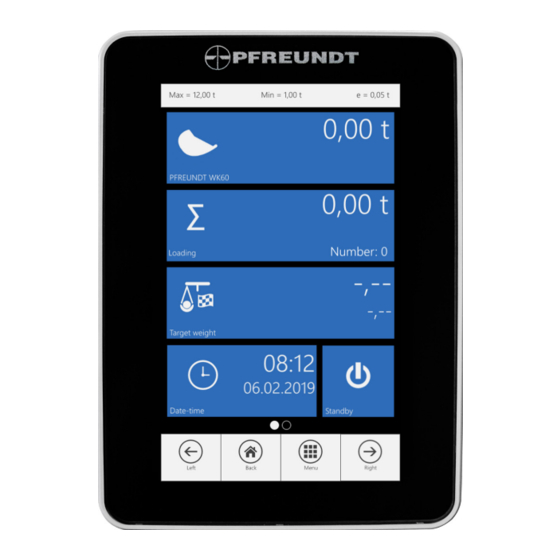

4. The weighing program 4.1 Switching on the scale Hold the On/Off button down for about 2 seconds. The weighing unit activates. After the start-up process, the weighing program opens. Figure no. 1 PFREUNDT GmbH | Operating Manual | WK60-RAD-BA-H-2022.01-EN... - Page 8 • Create and print a weighing b) Application area document c) Page display (1 of 2) • Select and manage master d) Menu bar data Target weight • Enter / select and manage target weight • Display of target weight and the remaining weight www.pfreundt.de...
-
Page 9: Menu Options
Backweighing If you only want to weigh a partially loading bucket (e.g. to avoid overloading the vehicle), you must enable backweighing. After emptying the loading bucket, backweighing is no longer possible. PFREUNDT GmbH | Operating Manual | WK60-RAD-BA-H-2022.01-EN... - Page 10 * Raise the loading bucket completely * For forklifts, position the mast vertically. Totals display incl. number of weighings The scale applica- tion requires a zero setting The lifting arm moves through the proximi- ty switch N1 www.pfreundt.de...
-
Page 11: Zeroing The Scale
Pull the empty loading bucket in completely. Depending on the configuration, move the lifting arm from below or from above to any position within the weighing area and stop briefly. The zeroing takes place automatically. PFREUNDT GmbH | Operating Manual | WK60-RAD-BA-H-2022.01-EN... - Page 12 Move the lifting arm through the weighing position from below several times (e.g. 10 times). 10 x Weighing position Continue with (depending on the configuration): • Zeroing the scale • Perform a weighing www.pfreundt.de...
- Page 13 Continue weighing until the trans- port vehicle is fully loaded or you have reached the specified target weight. Finish the loading process, e.g. by printing out a weighing slip, see chapter "7. Quit the loading process". PFREUNDT GmbH | Operating Manual | WK60-RAD-BA-H-2022.01-EN...
- Page 14 Continue weighing until the trans- port vehicle is fully loaded or you have reached the specified target weight. STOP Finish the loading process, e.g. by printing out a weighing slip, see chapter "7. Quit the loading process". www.pfreundt.de...
- Page 15 The fixed weight displays and is Finish the loading process, e.g. added to the total. by printing out a weighing slip, see chapter “7. Quit the loading process”. PFREUNDT GmbH | Operating Manual | WK60-RAD-BA-H-2022.01-EN...
- Page 16 The current selection of master data can be saved as a favorite. You can save multiple favorites. Cash sales The customer may want to or have to pay in cash. The loading process only ends after you press the button "Obtain amount". Settings Choose the settings for the master data. www.pfreundt.de...
- Page 17 You can add the master data back to the selection later. Cancel loading Quit loading Print weighing slip The loading process ends and a weighing slip is printed. PFREUNDT GmbH | Operating Manual | WK60-RAD-BA-H-2022.01-EN...
- Page 18 Open the page "CUSTOMER - All". Enter the customer name or the customer number in the input field "Search" and confirm with "Ok". The customer you are looking for displays. The search and selection are the same for all master data. www.pfreundt.de...
-
Page 19: Data Transfer
8.2 Data transfer via the PFREUNDT Web Portal The PFREUNDT Web Portal can also be used to transfer master and weighing data. The connection takes place via WLAN or a mobile network. -
Page 20: Description Of The Functions
The data is stored so as to be tamper-proof. If necessary, business documents must contain an identification for each weighing result (WELMEC 2.5 / Section 6.4). PFREUNDT Apps Not all functions are installed on delivery. With this application you can install or uninstall additional functions or applications. - Page 21 With this application, you can assign different materials to a delivery note. You can pause a summary document and the materials it contains at any time and restart it for processing. Date-time Configure the date and time. PFREUNDT GmbH | Operating Manual | WK60-RAD-BA-H-2022.01-EN...
- Page 22 Select a protocol for transferring the weighing data to an exter- nal computer. Interfaces manager This application is used to configure various hardware interfaces such as Bluetooth, GPS, etc. Order management Select and process loading orders. Can only be used in conjunction with the PFREUNDT Web Portal. www.pfreundt.de...
- Page 23 However, the scale only uses 1 prefix at a time to store the loads. Relay Connection and use of external relays at the multifunctional connections MIO 1/2 of the weighing unit. PFREUNDT GmbH | Operating Manual | WK60-RAD-BA-H-2022.01-EN...
- Page 24 10. Technical data WK60 series Supply voltage: 9 V to 36 V Printers need 24 V, use a transformer if necessary. Rated voltage: 24 V Power consumption including printer: max. 6 A Protection class per ISO 20653:2013-02: IP42 / IP5K2...
- Page 25 Class 1 (1 W, 30 dBm) @ GSM 1800 Class 3 (0.2 W, 23 dBm) @ LTE (FDD) Class E2 (0.5W, 27dBm) @ EDGE 850 / 900 Class E2 (0.4W, 26dBm) @ EDGE 1800 / 1900 PFREUNDT GmbH | Operating Manual | WK60-RAD-BA-H-2022.01-EN...
-
Page 26: Instructions For Care And Cleaning
Do not use aggressive or abrasive cleaning agents. WK60 weighing unit and pPrinter matrix You can clean the WK60 weighing unit and the PFREUNDT pPrinter Matrix printer with a damp cloth. Touchscreen To clean the touch screen, use a lint-free cloth (such as a microfiber cloth or eyeglass lens cleaning cloth). - Page 27 Observe the applicable national laws and regulations for waste disposal. © Copyright We reserve all copyrights for this documentation. Misuse, in particular duplica- tion and disclosure to third parties, is not permitted. PFREUNDT GmbH | Operating Manual | WK60-RAD-BA-H-2022.01-EN...
- Page 28 PFREUNDT GmbH | Robert-Bosch-Str. 5 | 46354 Südlohn Head office +49(0)2862/9807-0 | Sales +49(0)2862/9807-100 www.pfreundt.de | info@pfreundt.de...
