minrray VC460 User Manual

Intelligent 4k all-in-one video bar

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

All-in-one Video Bar

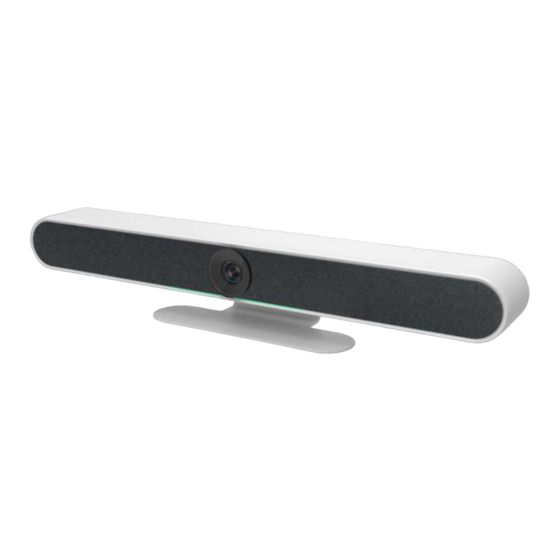

Intelligent 4K All-in-one Video Bar

User Manual

（V1.0）

Table of Contents

Need help?

Do you have a question about the VC460 and is the answer not in the manual?

Questions and answers

Summary of Contents for minrray VC460

Page 1 All-in-one Video Bar Intelligent 4K All-in-one Video Bar User Manual （V1.0）...
Page 2  Intelligent 4K All-in-one Video Bar User Manual Preface This manual is to ensure that the user can use the product properly and avoid danger while operating. Before using this product, please read the user manual carefully and keep it properly for future reference Overview: This manual describes the operation of Intelligent 4K All-in-one Video Bar.
Page 3  Intelligent 4K All-in-one Video Bar User Manual Attention This manual introduces functions, installations and operations for this product in details. Please read this manual carefully before installation and use. Precautions: This product can only be used in the specified conditions in order to avoid any damage to the camera: 1）...
Page 4  Intelligent 4K All-in-one Video Bar User Manual FCC Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Page 5  Intelligent 4K All-in-one Video Bar User Manual - English: " This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device."...
Page 6: Table Of Contents
 Intelligent 4K All-in-one Video Bar User Manual Contents Quick Start ........................6 1.1 Interfaces ......................6 1.2 Device Startup ..................... 6 1.2.1 Power on ..................... 6 1.2.2 Statue Indicator Light .................. 6 1.3 Video Output ....................... 7 1.4 Audio Input ......................7 1.5 Audio Output .......................
Page 7: Quick Start
 Intelligent 4K All-in-one Video Bar User Manual 1. Quick Start 1.1 Interfaces Interfaces USB audio video in out, type C HDMI HDMI video output LINE IN Audio linear input LINE OUT 3.5mm linear output Extension Mic RJ45 extension mic Power jacket HEC3800 power socket(DC12V), input AC110V-AC220V, output DC12V/2A 1.2 Device Startup...
Page 8: Video Output
 Intelligent 4K All-in-one Video Bar User Manual 1.3 Video Output 1. USB：Connect device to Pcs through USB cable, and open the video software to select device to output. 2. HDMI：Connect device to monitor through HDMI cable, and then select the correct input source on the monitor to output.
Page 9: Product Overview
 Intelligent 4K All-in-one Video Bar User Manual 2. Product Overview 2.1 Product Introduction 2.1.1 Dimension 2-1 Dimension 2.1.2 Supplied Accessory When you unpack your box, please check that all the supplied accessories are included. ●Supplied ○Optional Items Quantity ● All-in-one video bar ●...
Page 10: Product Features
 Intelligent 4K All-in-one Video Bar User Manual 2.2 Product Features With all-in-one design, this device has 4K UHD camera, microphone array, high fidelity speaker and electric privacy cover. Boasting powerful functions like face recognition, voice localization, voice tracking, and intelligent noise reduction, this product could automatically adjust the image size according to the number of participants to present the optimal frame.
Page 11: Technical Specification
 Intelligent 4K All-in-one Video Bar User Manual 2.3 Technical Specification 120° （ D ） /106° （ H ） / 72° （ V ） Iris F2.0 Lens Focal 1.89mm Length Digital Zoom Sensor High quality CMOS sensor, effective pixel 8 million, 16:9 Minimum 0.5Lux Illumination...
Page 12  Intelligent 4K All-in-one Video Bar User Manual Pickup 6 meters Distance Frequency 120 Hz–16 kHz Response Speaker Built in dual speaker Voltage 2*10W Output Speaker Voice 80±3 dB 1.0M/1.0W Pressure Frequency 100 Hz-20 KHz Response Audio Processing AEC, AGC, ANS Automatically adjust the screen size according to the number of Group Framing participants to present the best framing...
Page 13  Intelligent 4K All-in-one Video Bar User Manual Bar-shaped While displaying the working status, it can also be lit where the Indicator Indicator speaker's voice comes from. Can be connected to a mobile phone or other device via Bluetooth Bluetooth Bluetooth 5.0 as a Bluetooth microphone and speaker Compatibility...
Page 14: How To Use
 Intelligent 4K All-in-one Video Bar User Manual 3. How to Use 3.1 Remote Control Number Function Description Bluetooth Auto Framing & Voice Tracking Menu HOME Up, down, left, right Answer call Microphone muted...
Page 15: Menu Setting
 Intelligent 4K All-in-one Video Bar User Manual Reject the incoming call Volume up/down Set/call out preset #1 (Long press 3 sec to set preset, short press to call out preset) Set/call out preset #2 (Long press 3 sec to set preset, short press to call out preset) Zoom in/out 3.2 Menu Setting...
Page 16  Intelligent 4K All-in-one Video Bar User Manual 1) Language Move arrow to (Language), and press【← →】to change the option 2) Setting Move arrow to (Setting), and press【HOME】to enter the exposure interface. Setup ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ Image Style Default Auto Framing Close Auto Framing Sen Medium Voice Location...
Page 17  Intelligent 4K All-in-one Video Bar User Manual Voice Tracking: on/off Voice Tracking Sen: high/medium/low Locate Mode: Smart mode/pan mode/movie mode/discussion mode Prompt Info: On/off Menu Mirror: On/off Transfers Mode: Bulk/synchronization 3) Exposure Move arrow to (exposure), press【HOME】to enter exposure interface. EXPOSURE ＝＝＝＝＝＝＝＝＝＝＝＝＝...
Page 18  Intelligent 4K All-in-one Video Bar User Manual BLC: On/off ( only available in auto mode) Anti-Flicker: 50Hz, 60Hz, off (only available in auto, iris priority, bright priority mode) Gain Limit: 0 – 15(only available in auto, iris priority, bright priority mode) Dynamic Range: 1 –...
Page 19  Intelligent 4K All-in-one Video Bar User Manual AWB Sensitivity：High/medium/low(only Hue：0～8 available in auto mode) 5) Image Move arrow to (image), and press【HOME】to enter image page. IMAGE ＝＝＝＝＝＝＝＝＝＝＝＝＝＝ Brightness Contrast Sharpness Flip-H Flip-V B&W-Mode Color Gamma Default Low-Light Mode Close [↑↓]Select [←...
Page 20  Intelligent 4K All-in-one Video Bar User Manual NOISE REDUCTION ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ NR-2D NR-3D [↑↓]Select [← →]Change Value 2D NR：Auto, manual 1～7 3DNR：Off, 1～8 7) Version Move arrow to (version) VERSION ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ Camcra Version 1.0.0 2020-12-16 Audio Version 1.0.0 2022-5-19 8) Restore Default Move arrow to (restore default), and press【HOME】to enter RESTORE DEFAULT page.
Page 21: Maintenance And Troubleshooting
 Intelligent 4K All-in-one Video Bar User Manual RESTORE DEFAULT ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ Restore Default? Restore default: Yes/no (color style and video format cannot be restored) 4. Maintenance and Troubleshooting 4.1 Maintenance 1）If the camera will not be used for a long time, please turn off the power switch. 2）Use a soft cloth or lotion-free tissue to clean the camera body.
Page 22  Intelligent 4K All-in-one Video Bar User Manual c. Check whether the menu has been exited. Only after exiting the menu, the remote control can work normally; if the webpage outputs an image, the menu will not be displayed, then the menu will automatically exit and remote control can work on camera after 30 seconds without any operation...
Page 23 Copyright Notice The entire contents of this manual, whose copyright belongs to our company may not be cloned, copied or translated in any way without the explicit permission of the company. Product specifications and information referred to in this document are for reference only and as such are subject to updating at any time without prior notice...
