Summary of Contents for Medel OPUS 2

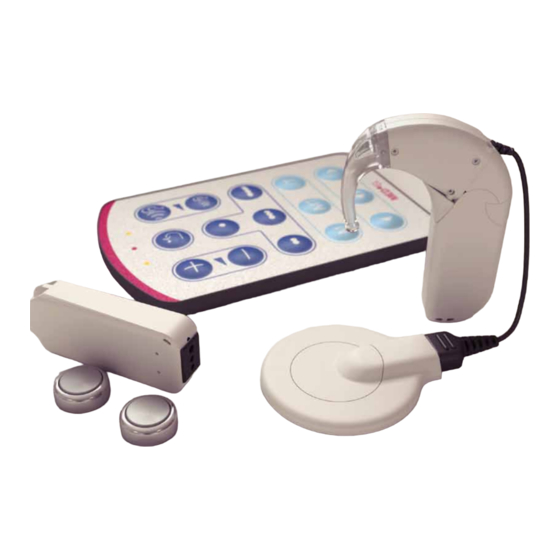

- Page 1 MAESTRO Cochlear Implant System ™ QuickGuide OPUS 2 Audio Processor...
- Page 2 – multiple wearing styles and battery options, including the BabyBTE, the world’s first processor designed ™ especially for young children – the new XS battery pack makes the OPUS 2 the smallest audio processor available today – Automatic Sound Management...
- Page 4 Integrated telecoil: The telecoil is located in the OPUS 2 control unit and requires no additional parts or cables. Select telecoil settings using the FineTuner remote control to reduce background noise with hearing aid compatible telephones and induction loop systems.
- Page 5 Coil Control Unit Coil Cable On/Off Switch Earhook Connecting Piece Battery Pack DaCapo Frame and Battery Pack Enlarged to show detail...
-
Page 6: The Perfect Fit
Since 1999, this modular design has offered MED-EL users a variety of wearing configurations to meet the needs of all ages and activities. When implant users select the OPUS 2, they will have the option to choose several wearing option choices. -
Page 7: Mini Battery Pack
Mini Battery Pack Children’s Battery Pack BabyBTE/ActiveWear The body-worn option that is powered For small children, this configuration For infants & small children or individuals by a single AAA or rechargeable is ideal because only the tiny, ultralight participating in high-energy activities. battery. - Page 8 From ON to OFF, and everything in between The standard battery pack includes an easy ON/OFF mechanism and connecting piece. The battery pack latch functions as the ON/OFF switch. Control Unit 3 short pins Turning the audio processor ON and OFF You may select the following positions: 1.
-
Page 9: Changing The Batteries
OPUS 2 Processor: The DaCapo Rechargeable Battery System is compatible 1. Open the battery pack lock (a). with MED-EL’s OPUS 2, OPUS 1 and TEMPO+ processors. 2. Remove the battery pack The system consists of the DaCapo Frame and battery pack cover (b). - Page 10 OPUS 2 processor. The FineTuner is not required for everyday use of the audio processor. When the OPUS 2 is turned on, it will return to the same program, volume and sensitivity settings that were in use when it was turned off. The FineTuner is configured...
- Page 11 Any of these keys can be deactivated when the audiologist volume setting sensitivity setting programs the OPUS 2 processor. When a key has been deactivated, the FineTuner will still send the command, program selection but the OPUS 2 processor will ignore the command.
- Page 12 FineTuner Indicator Light Signals The FineTuner has 3 indicator lights that can provide useful information about how the FineTuner is operating. Indicator lights are located above the FineTuner keyboard and include a red LED in the center with amber LEDs to the left and right. These LEDs can provide the following information: FUNCTION LIGHT PATTERN...
- Page 13 Connect to the World The OPUS 2 features an integrated state-of-the-art telecoil and an FM Battery Pack Cover for completely wireless access to a wide variety of telephones, public sound systems, MP3 players and direct- link systems – such as FM and Bluetooth systems.
- Page 14 Using Telecoil Delivering sound by magnetic induction A telecoil is a special circuit inside the audio processor designed to pick up electromagnetic signals. These magnetic signals – or induction signals – are wirelessly transmitted to the audio processor by using either a neckloop, silhouette, or induction loop system.
- Page 15 - Many FM receivers and direct-link devices with the standard 3-pin connector (e.g., Phonak MicroLink MLxS) can be used with the OPUS 2 FM battery pack cover. Turn the audio processor off, insert the receiver, and turn the processor back on. When the FM system is activated, the audio processor will automatically integrate the sound signal.
- Page 16 MED-EL Medical Electronics 2511 Old Cornwallis Road, Suite 100 Headquarters Durham, NC 27713, USA Fürstenweg 77a Tel.: 919-572-2222 6020 Innsbruck, Austria Fax: 919-484-9229 office@medel.com Toll Free: (888) MED-EL-CI (633-3524) implants-usa@medel.com www.medel.com Join us on Facebook facebook.com/medel.hearlife Follow us on Twitter twitter.com/medel Watch us on YouTube youtube.com/MEDELnetwork...
