Summary of Contents for Enel X JuiceRouter
- Page 1 JuiceRouter User Manual ENGLISH...
-
Page 2: Table Of Contents
Table of contents Welcome Package Contents Additional Required Parts Power Over Ethernet Cable Fasteners for Wall Installation Ethernet Cable To Connect JuiceRouter To Computer Specifications Characteristics Connection Diagram Dimensions 10/100BASE-TX RJ-45 Pin Outs Installation Hardware Installation Power And Ethernet Web Dashboard... -
Page 3: Welcome

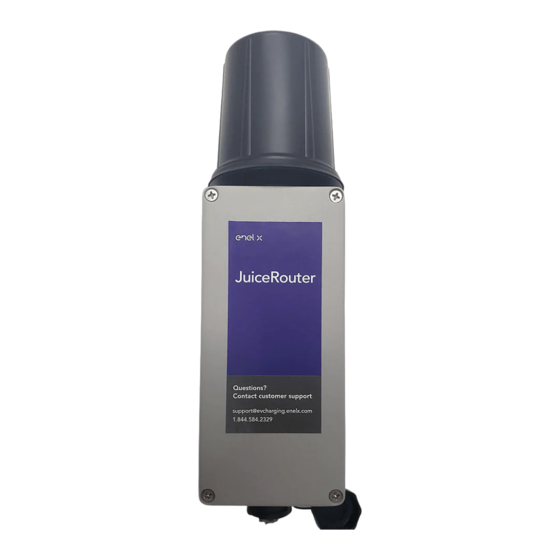

Welcome Welcome to JuiceRouter! JuiceRouter is a cellular hotspot that allows you to create your own WiFi network to get your JuiceNet devices online. Package Contents > JuiceRouter > RJ-45 Gland > Passive Power over Ethernet (PoE) 24V injector >... -
Page 4: Fasteners For Wall Installation
Hardware Installation section). Ethernet Cable To Connect JuiceRouter To Computer It is possible to access the JuiceRouter's Web Dashboard via WiFi or a hardwired connection (refer to the Web Dashboard section). To connect via a hardwired connection, supply your own Ethernet cable with RJ-45 connectors. -
Page 5: Specifications
10/100BASE-TX PoE Ethernet with audo MDI/MDI-X POWER INPUT 10/100BASE-TX RJ-45 Passive PoE CONNECTOR NOTE JuiceRouter does not have an on/off switch. When plugged in, JuiceRouter remains NOTE The maximum distance a JuiceBox should be placed from a JuiceRouter is 75 ft (23... -
Page 6: Connection Diagram
Connection Diagram NOTE The 10/100BASE-T Ethernet port can be used to access the JuiceRouter’s web management interface. Refer to the Web Dashboard section for more information. -
Page 7: Dimensions
Dimensions 10/100BASE-TX RJ-45 Pin Outs SOURCE VOLTAGE 9-30 Vdc Data Data Data Data... -
Page 8: Installation
Installation Hardware Installation JuiceRouter can be installed onto a wall or a pole: > If installing onto a wall, supply your own fasteners. > If installing onto a pole, use the included U-bolts. Power And Ethernet 1. Procure the included RJ-45 gland. - Page 9 Gland base Split washer Rubber seal Spacer 3. Route the Ethernet cable through the cap, spacer, rubber seal, and split washer. NOTE These components have a “clamshell” design that allows them to be installed onto the cable. 4. Compress the split washer, rubber seal, and spacer so that they fit together inside the cap.
- Page 10 Ensure that the connector is fully connected before continuing. 6. Unscrew the protective cap on the bottom of the JuiceRouter. 7. Connect the Ethernet cable to the port on the base of the JuiceRouter. Fully tighten the gland. NOTE The POE injector and AC adapter are not outdoor rated and must be installed inside or in a sealed outdoor enclosure.
-
Page 11: Web Dashboard
Web Dashboard Connect To The Dashboard There are 2 ways to connect to the JuiceRouter’s web dashboard: > Use an Ethernet cable to connect a computer to the open Ethernet port on the PoE injector > Connect to the JuiceRouter's WiFi: >... -
Page 12: Change The Juicerouter Wifi Ssid And Password
Change the JuiceRouter WiFi SSID And Password 1. In the top menu, select Wireless > Radio1. 2. Enter a new SSID and password, then select Submit. Change the JuiceRouter Timezone 1. In the top menu, select System > Settings. 2. In the “Time Settings” section, select a new timezone from the dropdown menu. Then,... -
Page 13: Connect Juicebox To Juicerouter
Connect JuiceBox to JuiceRouter Once JuiceRouter is broadcasting a WiFi signal, JuiceBox can connect to it. Refer to the appropriate JuiceBox Manual: JuiceBox 1.0 JuiceBox 2.01...
