Summary of Contents for Koga HORIZON 4K

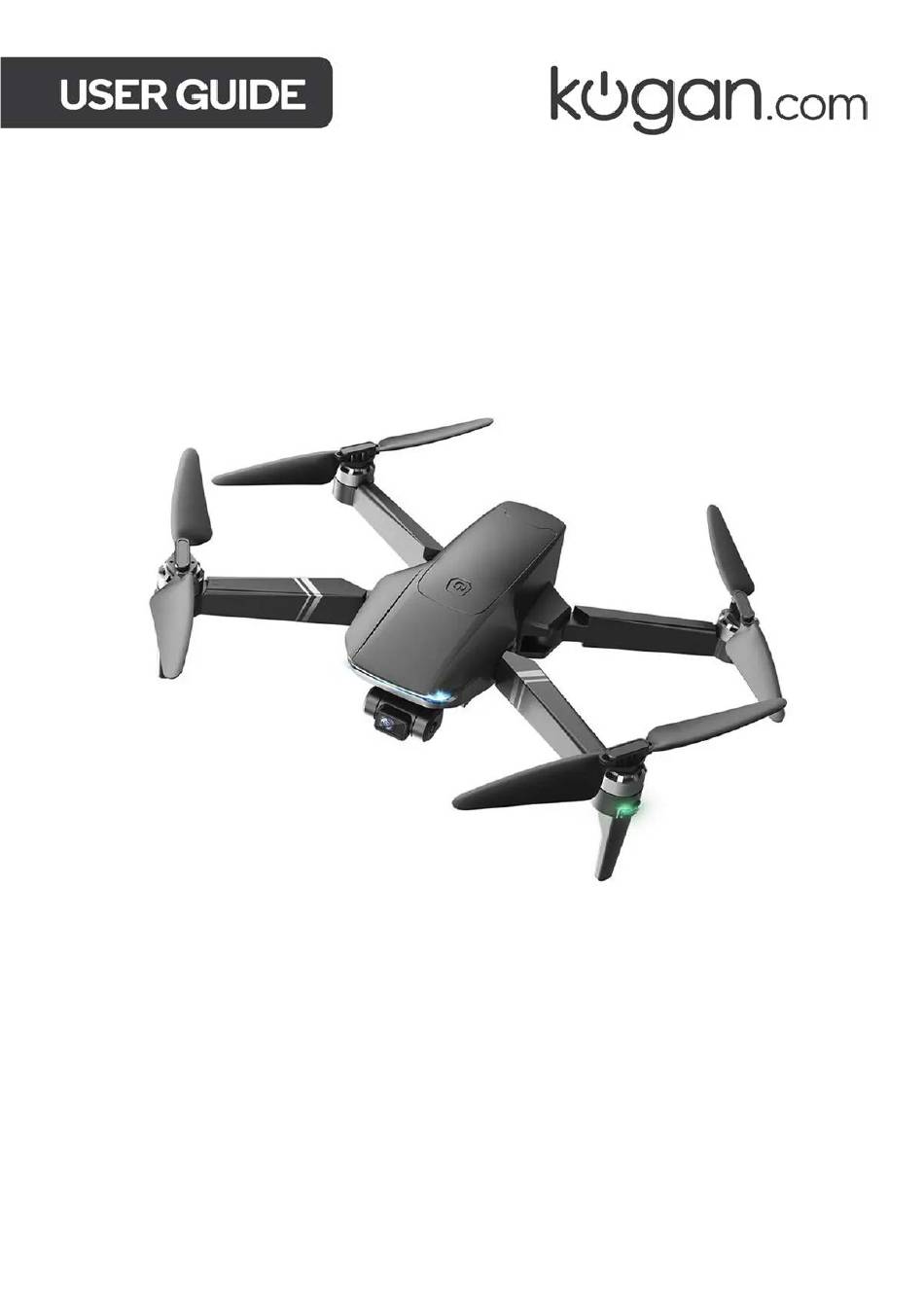

Page 1 HORIZON 4K DRONE KAHRZNDRONA...
Page 2: Table Of Contents
Safety & Warnings Components List Overview Before Use Pairing with the Remote Control Pairing with the App Operation Cleaning & Care Troubleshooting Notes...
Page 3: Safety & Warnings
SAFETY & WARNINGS Ensure to read all instructions and warnings in this user guide prior to first use. Retain this user guide for future reference. WARNING: This drone may need to be registered. Check with your local authority on the rules for registration. •...
Page 4 • Do not fly the drone over areas affecting public safety or where there are emergency operations taking place. • This drone contains electrical components. Always keep this drone away from water and other liquids. Exposure to water or moisture in any form can cause this drone to malfunction resulting in a crash.
Page 5: Components List
COMPONENTS LIST • Horizon 4K Drone • Screwdriver • Remote control • USB charging cable • Battery • User guide • Spare propeller (x4) • Storage bag • Propeller protection (x4) OVERVIEW Drone – Front view Propeller Motor Camera Indicator light Drone –...
Page 6 Remote control – Front view Gyro calibration button Right joystick Left joystick Return button Take-off/land button Power switch Geomagnetic calibration button Remote control – Back view Speed switch Headless mode/GPS button Capture/record button Battery indicators Camera angle adjustment switch...
Page 7 CSJ GPS app interface 21 22 23 24 25 26 27 Back Reverse camera Show/hide movement controls GPS signal indicator Waypoint flying Settings Flying zone Distance information Gallery Battery remaining on the remote control Flying records Battery remaining on the drone VR split screen mode...
Page 8 App interface with movement controls Device tracking Flying forwards/backwards Return Gesture photo/video Take-off Photo Land Video Orientation control Add music Altitude control Flying left/right Unlock...
Page 9: Before Use
BEFORE USE Charging the battery of the drone 1. Press on the battery at the back of the drone, then pull the battery out. 2. Connect one end of the USB to 3-pin connector cable into the 3-pin connector on the bottom of the drone.
Page 10 Charging the remote control 1. Connect one end of the USB to Micro-USB cable into the Micro-USB port on the remote control. Connect the other end of the cable to a USB power adapter. 2. Plug the power adapter into a wall socket and turn it on to start charging. The number of battery indicators illuminated will increase as the remote control is charged.
Page 11: Pairing With The Remote Control
PAIRING WITH THE REMOTE CONTROL 1. Drone pairing Place the drone on a flat surface. Press the power button on the drone, followed by sliding the power switch on the remote control to the right. You will hear two beeps to confirm the drone has paired to the remote control. 2.
Page 12 3. Geomagnetic calibration Next, the drone will need to be horizontally and vertically calibrated. Press and hold the geomagnetic calibration button for three seconds, The remote control will make a beep sound and the indicator lights will turn off. Slightly lift and rotate the drone in a horizontal direction 360° on the ground or until you hear a beep.
Page 13: Pairing With The App
PAIRING WITH THE APP App installation Apart from the remote control, the drone can also be controlled by using the ‘CSJ GPS’ app. 1. Scan the below QR code to download the ‘CSJ GPS’ app according to your phone’s operating system. Android 2.
Page 14: Operation
OPERATION Unlocking Before the drone is flown, it needs to be unlocked. This is a protection measure to prevent the drone from flying without warning. 1. Place the drone on a flat surface. 2. Push the left and right joysticks diagonally downwards on the remote control or press the unlock button.
Page 15 Flight controls • Use the left joystick to control the flight altitude and to turn the drone’s orientation left and right • Use the right joystick to control the forward, backward, left, and right-pan movements • If the left joystick is released, the drone will hover at the given height Left joystick Increase altitude (ascent)
Page 16 Changing the speed This drone features low-speed, and high-speed modes. By default, the drone flies under low-speed mode. • To change to high-speed mode, push the speed switch on the remote control to the right. After hearing two beeps, the drone will enter high-speed mode. •...
Page 17 Waypoint flying mode This mode allows users to set different points on a map for the drone to fly to when outdoors. All points must be within 100 metres of the drone’s current position. Using the app: 1. Tap on the waypoint flying icon. A map will appear with the drone’s current location. 2.
Page 18 Device tracking mode This mode allows the drone to follow the connected mobile device. When the device moves its position, the drone will follow the location of the device. Using the app, tap the device tracking icon to activate this mode. Tap the device tracking icon again to deactivate this mode.
Page 19 Gesture control Gesture control allows users hands-free operation to take photos and record videos. Tap the gesture photo/video icon on the app, then press and hold the slider to the right to activate the mode. To take a photo, make a V sign with your right hand towards the camera. Your connected device’s display will show a three-second countdown before it takes a photo.
Page 20: Cleaning & Care
CLEANING & CARE Once cooled, wipe the drone with a dry cloth to clean any dust or debris. Propeller replacement If the propellers are damaged or otherwise need replacing, follow the steps below: 1. Use the screwdriver to remove the screws that are attached to the current propellers. Remove the propellers.
Page 21: Troubleshooting
TROUBLESHOOTING Problem Possible cause/s Solution/s The drone does not • GPS calibration has • Ensure the drone is outdoors, and respond to the remote failed retry calibrating the GPS control or app and the • The drone is on low •...
Page 22: Notes
NOTES...
Page 24 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com...
