- Page 1 KGL1 Time Switch User Manual □ Please carefully read this User Manual before installing and operating the product. and keep this manual properly for future reference...
-
Page 2: Structural Features

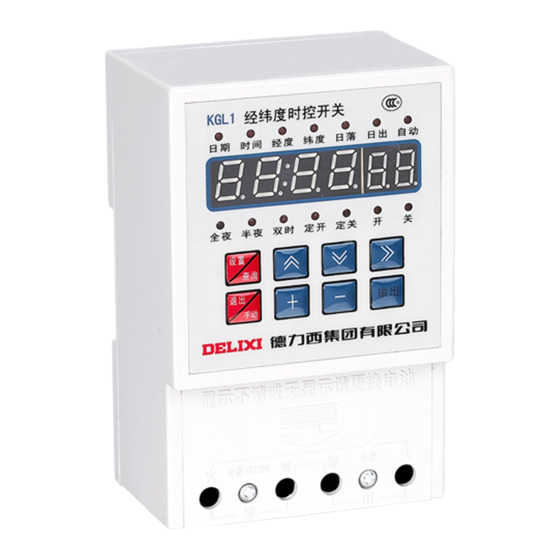

I. Overview 1.1 Scope of Application It is suitable for AC 50/60Hz control circuit with the voltage of 380V and below as a delay timing element to adjust the control time automatically based on the seasonal changes according to the local latitude and longitude. The product is used to turn on or turn off the power of various control circuits, suitable for street lights, neon lights, advertising sign lights, radio and television equipment and various household appliances. - Page 3 3.4 Use category: Ue: AC240V/380V; Ie: 3A/1.9A; Ith: 10A; AC-15 3.5 Enclosure protection grade: IP50; 3.6 Pollution level: 3; 3.7 Contact capacity: 30A AC220V (resistive) 3.8 Time error a day ≤±2s; 3.9 Built-in power supply: High-efficiency lithium battery to provide 10-year memory after power outage; 3.10 Mechanical life: Greater than or equal to 1 million times;...
- Page 4 V. Installation and Operation 5.1 Inquire the sunset and sunrise lamp ON/OFF time of the set date 5.1.1 Short press the Set / Query key to enter the lamp ON/OFF time query, and date setting menu (left two-digit indicates year, middle two-digit indicates month, right to-digit indicates day). 5.1.2 Press the ︽, ︾...
- Page 5 Note: When switching to the F-2 mode, the default timing off time of the product is 23.30, and the timing on time is 3.30. 5.2.6 Press the Exit/Manual key in the menu at any level to exit the settings menu. 5.2.7 In the setting state, the standby state will exit automatically if no any key is operated within 30s.
- Page 6 VI. Operation Precautions 6.1 In order to prevent the contact from heating under strong current, please tighten the screws of the wiring terminal when connection. 6.2 It is strictly forbidden to install and disassemble the energized product. 6.3 The equipment that may cause major economic losses or personal safety is designed to make the technical characteristics and performance values have sufficient allowance, and safety measures such as double circuit protection should be adopted.
- Page 7 XI. Company Commitment Under the condition that users follow the use and storage conditions and the product are well sealed. within 24 months from the production date. our company will provide repair and replacement service free of charge for any damage or abnormal operation due to poor manufacture quality.
- Page 8 Certificate Inspector: Check 01 Production date: See label on inner box DELIXI GROUP CO., LTD. Manufacturer: Zhejiang Delixi Electrical Co., Ltd. Address: No. 155. Zhandong Road. Liushi Town. Yueqing City. Zhejiang P/C: 325604 Tel: (86-577) 61778888 Fax: (86-577) 61778000 Customer Service Hotline: 400-826-8008 www.delixi-electric.com...
