RP-0522
Thank you for trust in RUDDOG Products.
Please read and understand this manual
before the first use.

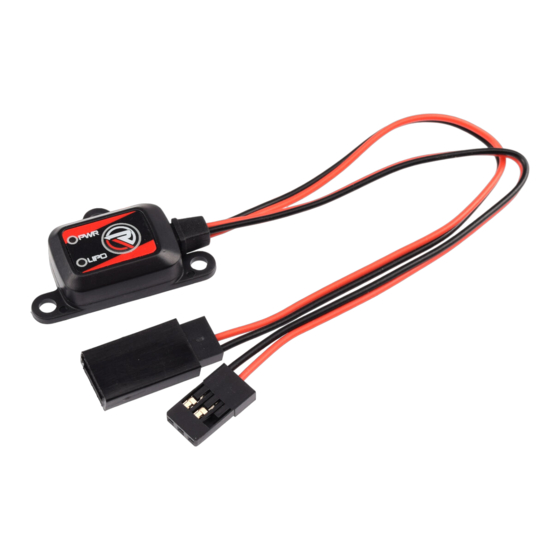

The RUDDOG Electronic Power Switch has been developed for radio controlled nitro engine model
cars. The simple to use power button can easily installed in your model either in place of your
transponder mount, or by using double sided tape. The sealed case and electronic design eliminates
the problems usually associated with a mechanical switch. The switch also features a LiPo mode,
which detects low voltage of your receiver battery and cut o automatically to protect your battery.
However, this feature can also be turned o if you have other safety guards in place or want to use a
NiMH or NiCd battery. Besides that, the switch also informs you about the current condition of your
battery pack.
SETUP
NiMH/NiCd (No Voltage Cut Off)
Please press and hold the button for about one second. The PWR LED will turn on. For switching o
please press and hold button until all LEDs turn o . The PWR LED also shows you the remaining
battery capacity when switched on.
Advertisement
Table of Contents
Summary of Contents for Ruddog RP-0522
- Page 1 Please read and understand this manual before the first use. The RUDDOG Electronic Power Switch has been developed for radio controlled nitro engine model cars. The simple to use power button can easily installed in your model either in place of your transponder mount, or by using double sided tape.
- Page 2 LiPo (With battery protection turned on) Please press and hold the more than three seconds. The PWR LED and LIPO LED will turn on. For switching o please press and hold button until all LEDs turn o . The PWR LED also shows you the remaining battery capacity when switched on.
