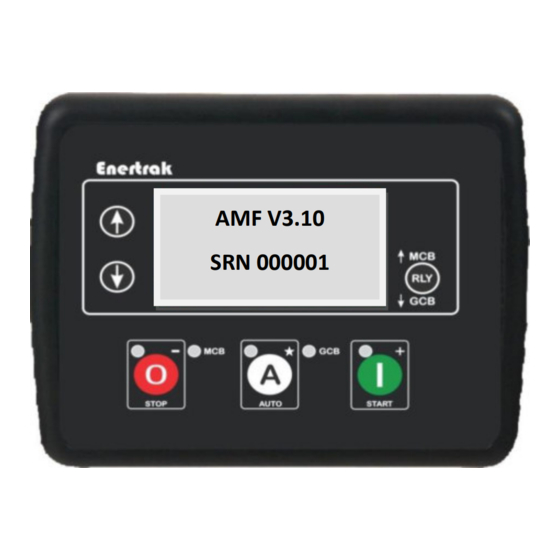

- Page 1 USER MANUAL AMF CONTROLLER MODEL – AMF-9920 AMF V3.10 SRN 000001 Version – 3.10 Release of Date- 22/01/2021...
-
Page 2: Table Of Contents
Table of Content Sr.No. Description Page No. Introduction Features Front Panel Configuration Push Button Display Parameter Specification- LED Action on Faults Description of Programming Parameter Operation A) Configuration Parameters – Timer (Page-1) Programming Parameters B) Configuration Parameters – Generator (Page-2) C) Configuration Parameters –... - Page 3 Action Activation Input Sources Output Sources Instrumentation Icons MODE ICON LOAD SWITCHING ICON WARNING ALARM ICONS ELECTRICAL TRIP ALARM ICONS SHUTDOWN ALARM ICONS Communication Port A)Can Interface 22-23 B)USB Connection DO’S AND DON’T General characteristics Terminal description 26-30 Display Monitoring...
-
Page 4: Introduction
Indian conditions. The AMF-9920 series module has been designed to allow the operator to start and stop the generator, and if required, transfer the load to the generator either manually or automatically. -

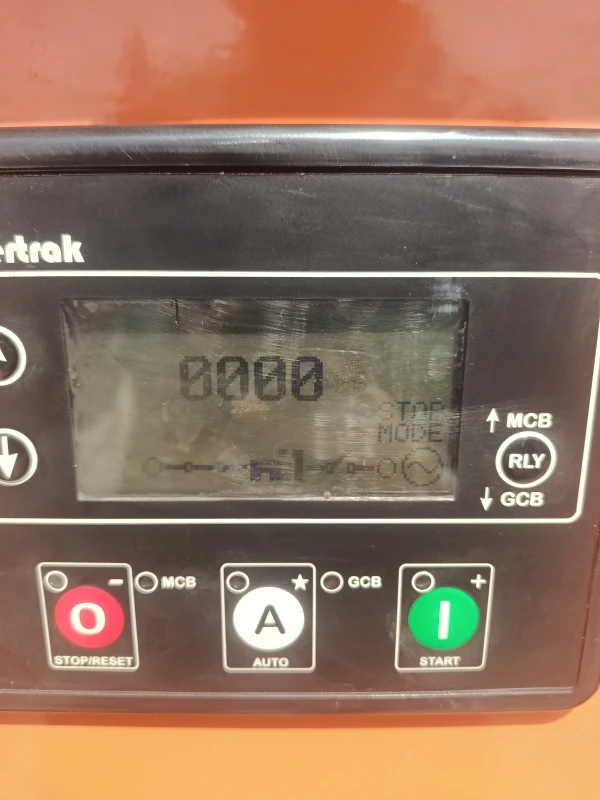

Page 5: Push Button
PUSH BUTTON- ICON DESCRIPTION STOP/RESET MODE This key is used to Stop DG Set in Manual Mode & Reset if any fault Condition Present. AUTO MODE This key is used to set in Auto Mode and for event log exit. MANUAL/START MODE This key is used to start the DG Manually. - Page 6 L2L3 000V Mains Voltage(L-L) Display Screen-8 L3L1 000V Graphical 00.00Hz Mains Frequency Screen-9 Display L1 00.00A Graphical L2 00.00A Load Current (A) Display Screen-10 L3 00.00A 00.0% L1 00.00 KW Active Power % & Graphical 00.0% L2 00.00 KW Active Power Per Phase (kW) Display Screen-11 00.0% L3 00.00 KW...
-
Page 7: Specification- Led
SPECIFICATION –LED LED will glow, whenever the corresponding condition is sensed by the controller. LED Status NORMAL Active START STOP AUTO ACTION ON FAULTS Sr.No. Name of Faults Description of Indication FAIL TO START When after no. of Set attempt , DG not start then FAIL TO START fault occur &... -
Page 8: Description Of Programming Parameter
Description of Programming Parameter Step Process Press and hold the buttons together to enter the editor mode. Display shows PROGRAMMING MODE PASSWORD 0000 button .For Password Enter “1” at first digit. Press button 1 appear on right side on LCD means first digit from MSB can change from 0-9 by using PROGRAMMING MODE PASSWORD... -
Page 9: Operation
Press the buttons to adjust the value to the required setting Press the button to save the current value, the value ceases flashing. Press and hold the button to save and exit the editor, the configuration icon is removed from the display. If User wants to see Event log Fault History then Press &... -
Page 10: Programming Parameters
Current Unbalance Detection A) Controller doesn’t take any action till the current is below 25% of the Over current Set Limit in three Phase. B) Controller Monitors the Current and upon any phase current exceeding 25% compares it with other phase currents and if the difference between max current and other phase current exceed set value in % defined then controller consider it as a current unbalance condition. -
Page 11: B) Configuration Parameters - Generator (Page-2)
Configuration Parameters – Generator (Page 2) INDEX SETTABLE PARAMETER RANGE DEFAULT ALTERNATOR POLES 0- 36 ENGINE UNDER VOLTAGE TRIP ENABLE On (1), Off (0) On(1) ENGINE UNDER VOLTAGE TRIP LEVEL 120-250V 160 V ENGINE UNDER VOLTAGE WARNING ENABLE On (1), Off (0) On(1) ENGINE UNDER VOLTAGE WARNING LEVEL 120-250V... - Page 12 ENGINE OVER FREQUENCY WARNING ALARM 45-60 Hz 52.5 Hz LEVEL ENGINE OVER FREQUENCY TRIP ENABLE On (1), Off (0) On(1) ENGINE OVER FREQUENCY TRIP LEVEL 45-60 Hz 53 Hz ENGINE OVER FREQUENCY ACTION DELAY 0-99s CT PRIMARY 0005-9999 AMPERE LOAD RATING ( PER PHASE ) 0-9999A OVER AMPERE TRIP ENABLE On (1), Off (0)
-
Page 13: C) Configuration Parameters - Mains (Page-3)
Configuration Parameters – Mains (Page 3) INDEX SETTABLE PARAMETER RANGE DEFAULT 0 (DG 3P EB 0 (DG 3P EB MAINS AC SYSTEM CONFIGURATION MAINS FAILURE DETECTION ENABLE On (1), Off (0) On(1) MAINS UNDER VOLTAGE ENABLE On (1), Off (0) On(1) MAINS UNDER VOLTAGE TRIP VOLTAGE LEVEL 120-250 V... -
Page 14: E) Configuration Parameters - Digital Inputs (Page-5)
DG HIGH BATTERY ACTION DG HIGH BATTERY RETURN VOLT LEVEL 12.0-18.0V 15.0V DG HIGH BATTERY TRIP LEVEL 12.0-18.0V 16.0 V DG HIGH BATTERY DELAY 0 -99s DG CHARGING ALTERNATOR ACTION DG CHARGING ALT. TRIP VOLT. LEVEL 0-35.0V 04.0 V DG CHARGING ALTERNATOR DELAY 0 -99s CHG ALT TYPE FAN FAULT ENABLE... -
Page 15: F) Configuration Parameters - Analogue Inputs (Page-6)
DIGITAL INPUT D SOURCE (LLOP/HWT/LFL/RWL/CANOPY/EMG /REMOTE START/ 0(Input Source) EARTH FAULT/DOOR OPEN/SIMULATE AUTO/SIMULATE START/SIMULATE STOP/SIMULATE MAINS/MAINS FAIL) DIGITAL INPUT D POLARITY On (1), Off (0) Off (0) DIGITAL INPUT D ACTION DIGITAL INPUT D DELAY 0 -99s ANALOGUE INPUT A (SET AS DIGITAL) SOURCE (LLOP/HWT/LFL/RWL/CANOPY/EMG /REMOTE START/ 0(Input Source) EARTH FAULT/DOOR OPEN/SIMULATE AUTO/SIMULATE... -
Page 16: Configuration Parameters - Output (Page-7)
ANALOGUE INPUT A OIL PRESSURE DELAY 0-99s Temperature ANALOGUE INPUT B SENSOR TYPE Temperature ANALOGUE INPUT B SENSOR SELECTION Eicher Eicher ANALOGUE INPUT B TEMPERATURE ENABLE ANALOGUE INPUT B TEMPERATURE TRIP POINT 0-999 ANALOGUE INPUT B TEMPERATURE OPEN ENABLE ANALOGUE INPUT B TEMPERATURE DELAY 0-99s ANALOGUE INPUT C SENSOR TYPE Fuel... -
Page 17: K) Configuration Parameters - Sensor(Page-11)
DIGITAL OUTPUT E POLARITY On (1), Off (0) On (1) DIGITAL OUTPUT F SOURCE OUTPUT Choke FUEL/ENERGISE TO STOP/MCB OPEN/GCB OPEN/MCB SOURCE CLOSE/GCB CLOSE/BUZZER/CHOKE/ALT PULSE/LFL/AS IDLE RELAY/As Fail to Start/ As Fail to Stop) DIGITAL OUTPUT F POLARITY On (1), Off (0) On (1) Configuration Parameters –... - Page 18 1007 Scheduler 1 Stop Time 1008 Scheduler 2 Start Time 1009 Scheduler 2 Start Day 1010 Scheduler 2 Start Week 1-4 , L 1011 Scheduler 2 Stop Time 1012 Scheduler 3 Start Time 1013 Scheduler 3 Start Day 1014 Scheduler 3 Start Week 1-4 , L 1015 Scheduler 3 Stop Time...
- Page 19 Configuration Parameter – Sensor & Timers (Page -11) 0-1500 Ω INDEX SETTABLE PARAMETER RANGE DEFAULT Resistance R01 TO R10 1101 -1120 0-1500 Ω Pressure P01 TO P10 0-10 1121-1140 Resistance R01 TO R10 0-1500 Ω Temperature T01 TO T10 0-300 1141-1160 Resistance R01 TO R10 FUEL L01 TO L10...
-
Page 20: Sensor Type
AC SYSTEM SENSOR TYPE SENSOR TYPE AC SYSTEM Index Type Index Type None 3-Phase DG, 3-Phase Mains Digital Input 1- Phase DG , 1-Phase Mains Fuel Sensor 3-Phase DG, 1-Phase Mains Pressure Sensor 1-Phase DG, 3-Phase Mains Temperature Sensor DIGITAL INPUT POLARITY DIGITAL OUTPUT POLARITY OUTPUT POLARITY DIGITAL INPUT POLARITY... -
Page 21: Input Sources
INPUT SOURCES LLOP CANOPY EMERGENCY Remote Start Earth Fault Door Open Simulate Auto Simulate Start Simulate Stop Simulate Mains Mains Fail Input OUTPUT SOURCES Fuel Relay Start Relay Energize To Stop Open Mains Output Open Gen Output Close Mains Output Close Gen Output Buzzer Choke... -
Page 22: Instrumentation Icons
INSTRUMENTATION ICONS When viewing instrumentation pages, an icon is displayed in the Inst. Icon section to indicate what section is currently being displayed. Icon Details The default home page which displays generator voltage and mains voltage Generator voltage and frequency instrumentation screen Mains voltage and frequency instrumentation screen Load power instrumentation screen Engine speed instrumentation screen... -
Page 23: Warning Alarm Icons
WARNING ALARM ICONS Warnings are non-critical alarm conditions and do not affect the operation of the generator system, they serve to draw the operators attention to an undesirable condition. By default, warning alarms are self-resetting when the fault condition is removed. Icon Fault Description... -
Page 24: Shutdown Alarm Icons
SHUTDOWN ALARM ICONS Shutdown alarms are latching and immediately stop the Generator. On initiation of the shutdown Condition the module de-energizes the ‘Genset Contactor Output’ to remove, the load from the generator. Once this has occurred, the module shut down the generator immediately. -
Page 25: Communication Port
Communication Port CAN INTERFACE A) Modules are fitted with the CAN interface as standard and are capable of receiving engine data from engine CAN controllers compliant with the CAN standard. B) CAN enabled engine controllers monitor the engine’s operating parameters such as engine speed, oil pressure, engine temperature C) This allows generator controllers to access these engine parameters with no physical connection to the sensor device. -
Page 26: Do's And Don't
USB CONNECTION The USB port is provided to give a simple means of connection between a PC and the controller. The various operating parameters (such as output volts, oil pressure, etc.) of the remote generator are available to be viewed or changed. •... -
Page 27: General Characteristics
GENERAL CHARACTERISTICS Rating /Phase /Class 3X230V , 50 Hz ,1Ph/3Ph Minimum Supply Voltage Maximum Supply Voltage AC Current Input -/5A 50/60Hz,1-3Ph Display Type Graphical LCD display Size 138.50 x 113X40mm Panel Cut Out 118 x 92mm Accuracy Class 1.0 Frequency Range 45Hz to 55Hz... -
Page 28: Terminal Description
TERMINAL DESCRIPTION PIN NO. DESCRIPTION PIN NO. DESCRIPTION DC Supply Input Digital Input D (-Ve) DC Supply Input CAN Port H/485 A (+Ve) CAN Port L/485 B DC Output A DC Output B CAN Port Screen/ NO CONNECTION (START) Charge Alt. / Excite Generator L1 (U) Voltage Monitoring DC Output C Generator L2 (V) Voltage Monitoring... -
Page 29: Display Monitoring
Monitoring Mode use the “Navigation UP/DOWN Keys” to scroll/browse the screens. In monitoring mode the screen will scroll automatically after a predefined time or one can Display Version Generator & Mains Voltage (L-N) Generator & Mains Voltage (L-L) Generator Voltage ( L-N ) Generator Voltage ( L-L ) Generator Frequency... - Page 30 Mains Voltage ( L-N ) Mains Voltage ( L-L ) Mains Frequency Load Current Active Power Apparent Power...
- Page 31 Combined Active Power ,Apparent Power Factor Power & Avg. Power Factor DG kWh & Eb kWh Battery Voltage Charging Alternator Oil Pressure...
- Page 32 Temperature Fuel Level Run Hours & No of Start Service Hour Engine Speed Meter Serial & Communication ID...
- Page 33 Fault Alarm Status Real Time Clock Enertrak IT-3, EPIP RIICO Industrial Area Sitapura, Jaipur (Raj.) -302022 Customer Support: - Email – raj.enertrak@gmail.com Mobile No. – 8233000062...
