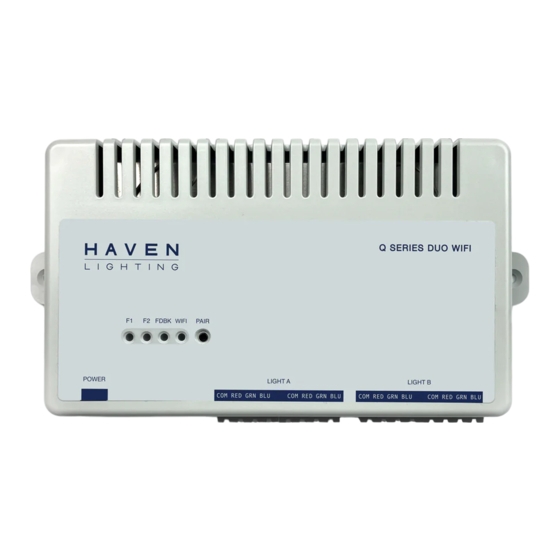

HAVEN LIGHTING Q Series Operation Manual

Full color duo led controller

What's in the Box?

1 x Q Series – Full Color Duo LED Controller w/ Connectors

2 x Wood Mounting Screws

2 x Dry Wall Anchors & Screws

2 x Wireless Wall Switch w/ Screws*

2 x Double Sided Tape (for non-screw mounting option)

1 x Power Supply

* Wireless Wall Switch NOT included with WiFi version. see attached Wireless Wall Switch guide.

This lighting controller must be mounted in a clean and dry environment with good ventilation. Do not block or cover the

vents in the enclosure. Avoid mounting the controller within a metal enclosure. If this is a requirement, we highly

recommend that your purchase an antenna extender cable and mount the antenna outside the metal enclosure.

STEP 1: Connect Antenna

(Dry wall mounting optional with

included anchors and screws or

double-sided tape)

STEP 4: Mount controller

havenlighting.com

Q SERIES – FULL COLOR DUO LED CONTROLLER

COM RED GRN BLU

STEP 2: Connect wires to connectors

STEP 5: Connect to power

OPERATIONS MANUAL

Note: DO NOT CONNECT

TO POWER UNTIL STEP 5

STEP 3: Plug in connectors

RevQ

Table of Contents

Do you have a question about the Q Series and is the answer not in the manual?

Page 1 Q SERIES – FULL COLOR DUO LED CONTROLLER OPERATIONS MANUAL What’s in the Box? 1 x Q Series – Full Color Duo LED Controller w/ Connectors 2 x Wood Mounting Screws 2 x Dry Wall Anchors & Screws 2 x Wireless Wall Switch w/ Screws*...
Page 2 Full Color LED Controller Note: Fuse lights should be on for proper operation. Wiring Pairing Button Feedback Lighting Connectors Fuse 2 Fuse 1 Antenna COM RED GRN BLU Light B Control (5 Amps) Light A Control (5 Amps) 24 VDC Power Technical Information 8"...
