Lipidex AirCycler SmartExhaust FV-WCPT1-W Quick Start Manual

Bath Fan/Light Switch/Delay Timer/Ventilation Controller
aust™ Instruction Manual
m wire. Use with copper or copper clad wire only.
fuse panel.
h from wall box if there is one already installed.
g the supplied wire nuts.
exposed. Twist wires together tightly
bare copper is exposed.
e. If a light is not connected, be sure to
and secure with electrical tape.
ll box with supplied mounting screws.
to desired minutes.
ng dial to desired minutes per hour.
e box.
Dial Settings
will run for set DELAY time.
at least 1 second then down again.
on for at least 10 seconds.
or set VENTILATION time.
n will be subtracted from VENTILATION time for that hour.
xceed set VENTILATION time, the excess time will be subtracted

Wiring Diagram

Black - Hot
Green - Ground
White - Neutral
FOR SUPPLY CONNECTIONS, USE 18 AWG OR LARGER
WIRES SUITABLE FOR AT LEAST 105 ˚C
SmartExhaust™
Light: 450 Watts @ 120 VAC
(Blue Wire)
Fan: 150 Watts @ 120 VAC
(Red Wire)
Operation: 120VAC 60hz ±10%
2.5" minimum wall box recommended
Cover plate not included. Use any
standard switch plate.
This product may be covered by one or more of
the following patents and patents pending:
8,185,244 & 7,258,280
SmartExhaust™
A Division of
Lipidex Corporation
Ratings:
120VAC, 60 Hz, 5A
LISTED
Appliance Control
U.S. Patent
Pending
Ventilation
/Hour

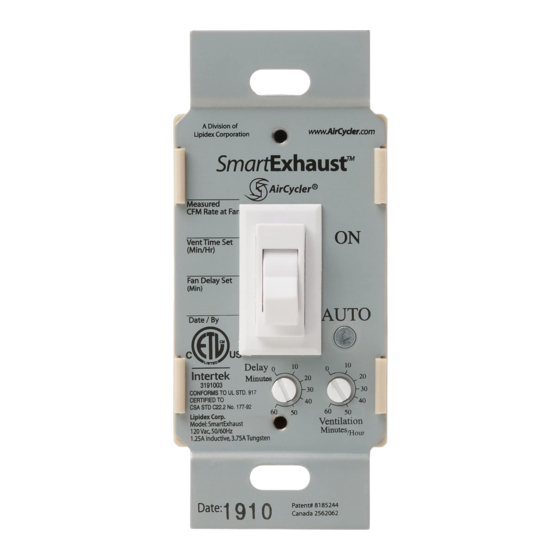

The SmartExhaust™ comes from the same people who brought you the
AirCycler® line of ventilation controllers. The SmartExhaust™ is a simple,
smart, exible and economical solution to meet exhaust ventilation require-
ments.
The SmartExhaust™ is designed to replace the bathroom fan and light
Blue - Light Hot
switch. By using a microprocessor to monitor and control fan operation, a
Red - Fan Hot
precise amount of ventilation can be provided.
Bath
Light
Turn the switch o : The light turns o , the fan remains running for a set delay time
There are only two settings on the SmartExhaust™ switch: VENTILATION
and DELAY. You can set the number of minutes per hour that you want the
Speci cations:
fan to run with the VENTILATION setting. You can set the number of
minutes that you want the fan to run after the bathroom light has been
turned o with the DELAY setting. The DELAY setting provides additional
run time for the fan to complete ventilating the bathroom after use. The
SmartExhaust™ is so smart that if you don't want or need the fan to run
after use there is a simple technique to do so. How? Within three seconds of
turning the light o , turn it back on then o again within three more
seconds. In just a few seconds, the SmartExhaust™ knows you don't want
the fan to continue running.
Since you are substituting an existing switch, or maybe even two, there are
no additional labor costs to the SmartExhaust™ installation. The light and
fan are operated by the same switch so the ventilation strategy cannot be
defeated.
Earn a LEED point for Enhanced Exhaust Ventilation!
Make standard bath fans ASHRAE 62.2 compliant
Microprocessor technology provides precise ventilation times
Fan runs every hour for set ventilation less any set manual and
delay operation
Excess manual and/or delay operation is subtracted from the next
hours ventilation time
The SmartExhaust™ is great for meeting ventilation codes,
reducing mold, mildew and pollutants - It saves you energy
and money
Enables the use of energy e cient CFL's in the bathroom
It's Simple, It's Smart, It's Easy...
It's the Most Economical Ventilation Solution!
Turn the Switch on: The light and Fan turn on
Turn the switch o , on, o : The delay cycle is cancelled for that use
