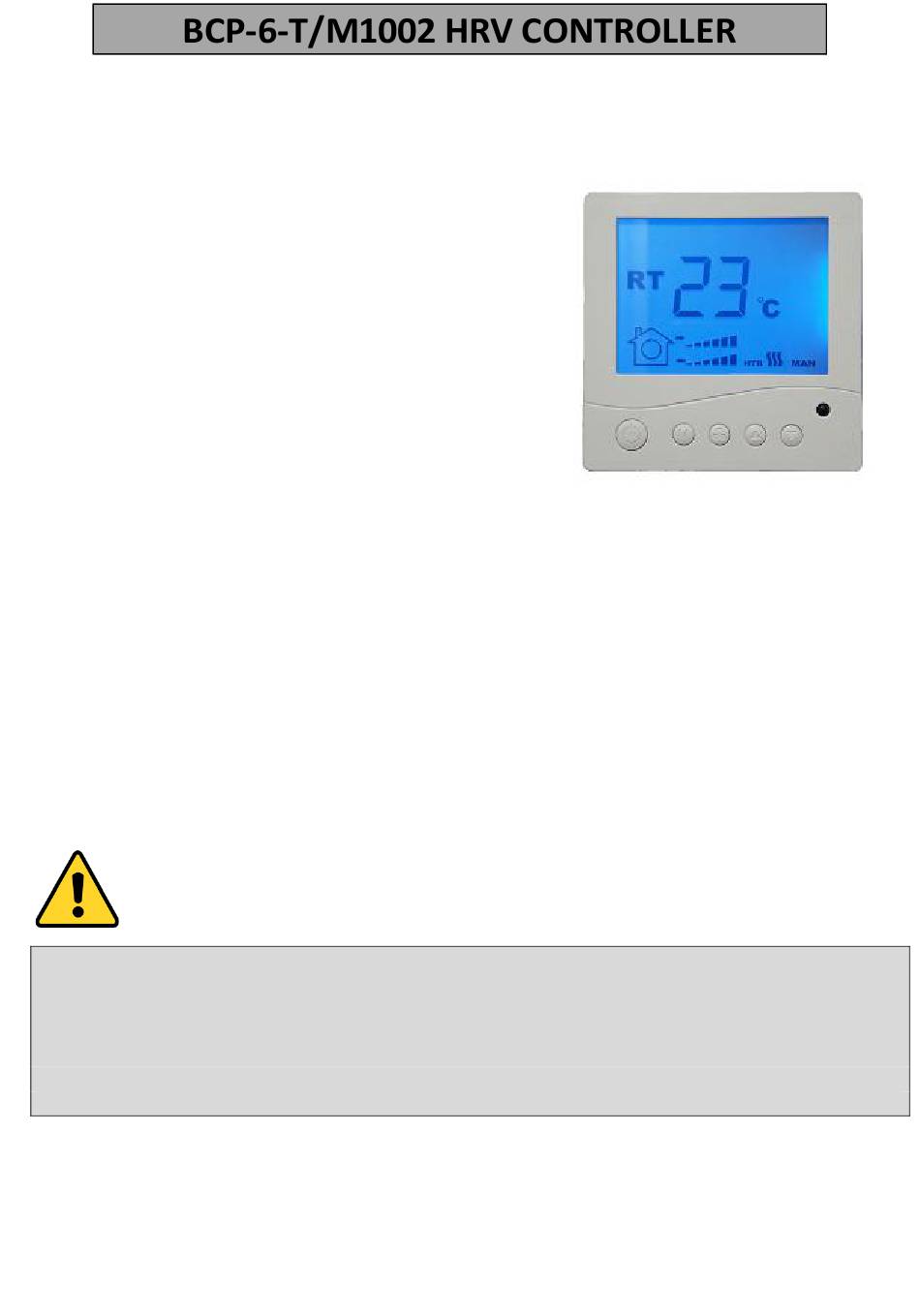

3.1" Large Screen
-
2 Part Control Panel (Mainboard + Room Panel)
-
Aspirator, Vantilator 6 Level Speed Control
-
Automatic/Manuel Mode
-
3 Stage Heater Control
-
Return Air Temperature Input (NTC 10K)
-
Carbon dioxide Control (CO2 Transmitter Input)
-
BMS Input (Dry Contact)
-
Dirty Filter Input
-
On/Off Damper Output
-
Minimum ve Maximum Set Temperature Limit
-
Weekly Program (for BCP-6-T)
Order Code:
Room Panel: BCP-6-X
X:
T
Mainboard: M1002
Warning
Please read the manual and following cautions before you begin installing the device.
Responsibility of accidents and damages caused by failure to observe the warnings in the manual belongs to
user. Operation on the device cause damage to device and system. In this case damaged device will be out of
warranty.
>
Weekly Program
1
User Manual BCP-6-T v01 06/17
Advertisement
Table of Contents
Summary of Contents for HAVKON BCP-6-T
- Page 1 Responsibility of accidents and damages caused by failure to observe the warnings in the manual belongs to user. Operation on the device cause damage to device and system. In this case damaged device will be out of warranty. User Manual BCP-6-T v01 06/17...
- Page 2 TECHNICAL SPECIFICATIONS ENVIROMENTAL SPECIFICATIONS Operating/Storage Temperature 0 ... +40°C/0 ... +50°C (Without Condensation) Relative Humidity 0…95 % r. H (Without Condensation ) Protection Class Mainboard: IP 00 / Room Panel: IP 20 According to EN 60529 Height Up to 2000m It should be used in no flammable and no environments.
- Page 3 DIMENSIONS BCP-6-T (Room Panel) M1002 (Mainboard)
- Page 4 Connections M1002-M control devices are designed for HRV with mono stage fan or EC fan. The device should be used according to instructions. There is no power on the device when mounting. The device should be protected from vibration, humidity and pollution. Cross and shield cable should be use for signal and communication signals.
- Page 5 It selects Aspirator, Vantilator or Heater when the device is manual mode. Weekly Program Settings: (BCP-6-T) Press Mode button 2 second when the device ON mode. For every day select start and stop hours by pressing Up and Down buttons. And continue with pressing button.
- Page 6 Temperature Sensor Position Settings: Press UP and DOWN buttons at the same time 3 seconds when the device OFF mode. Parameter Numbers and Settings Value are shown on the screen. For example (“1 05”). Set the parameter number as 2 by pressing FAN Button. Set Temperature sensor position settings value with Up and Down buttons (0-1).
- Page 7 Backlight Settings: Press UP and DOWN buttons at the same time 3 seconds when the device OFF mode. Parameter Numbers and Settings Value are shown on the screen. For example (“1 05”). Set the parameter number as 6 by pressing FAN Button. Set Backlight Settings with Up and Down buttons (0-2).
- Page 8 HAVKON Elektronik Tel : +90 216 412 45 17 www.havkon.com...
