Hydraulics Incorporated KWR-004 Instruction Manual

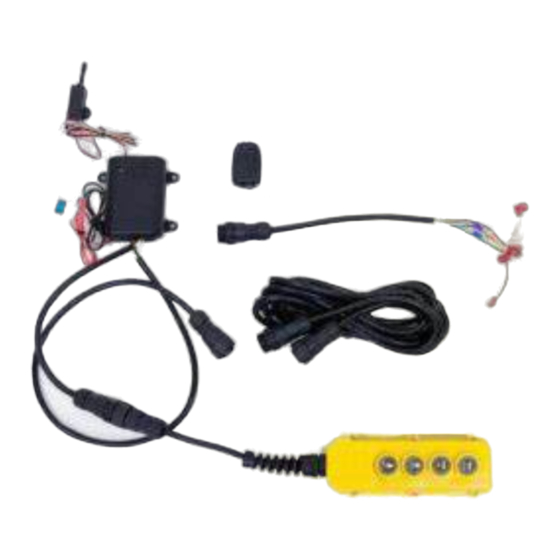

Wireless Instruction Manual 4-Function (P/N KWR-004)

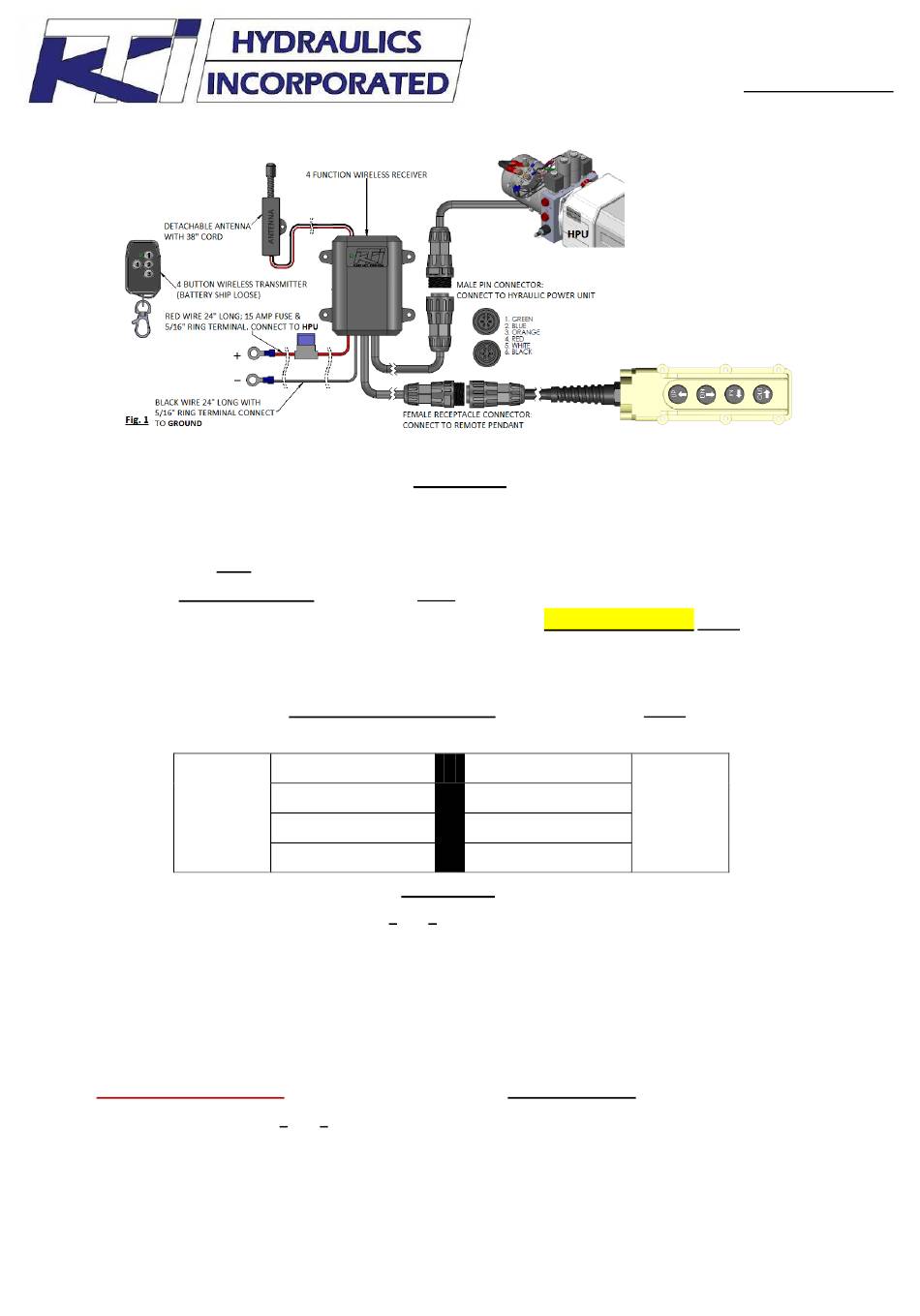

1.) Mount Wireless Receiver.
a. Select desired mounting location preferably in a sealed box not exposed to the elements.
b. Antenna must be mounted outside, not in metal box away from mechanical, moving parts.
2.) Connect the Male Pin Connector to Power Unit.
3.) Connect positive (Red Wire) & negative (Black Wire) ring terminal to Hydraulic Power Unit.
a. Connect (+) Red wire to the same terminal on Start Solenoid as positive cable from the battery.
b. Connect (-) Black wire to the Ground terminal on the motor or negative terminal on the battery.
4.) Connect Remote Pendant to Female Receptacle Connector on Wireless Receiver.
5.) Operate your Wireless Remote and Remote Pendant to insure proper functionality.
Wireless
Remote
1.) To turn power ON or OFF, press both buttons 1 and 2 simultaneously. When the receiver is OFF, the LED indicator will
not illuminate. When the receiver is ON, the LED indicator will flash GREEN every 5 seconds to show that the receiver
is connected to a power source above 9 Volts. If the power source is below 9 Volts the LED indicator will flash RED
every 5 seconds. NOTE: Wireless Receiver will not operate below 8.5 Volts.
2.) When receiver is ON, pressing any button on key fob, the LED on receiver will remain ON. LED light cuts off when the
button is released.
3.) 20 Minute Shut-down Mode
a. Press both buttons 1 and 2 simultaneously to turn the receiver ON.
b. In Shutdown Mode; the Remote Pendant is still active.
********Wireless Remote Comes Preprogrammed********

Installation

(Fig. 1)
Button # 1
Button # 2
Button # 3
Button # 4

Functions

- Receiver shuts down after being idle for 20 minutes.
Tel. (949) 752-8818, Fax (949) 756-1520
(Fig. 1)
Up function Remote
Pendant
Down function
Out function
In function
2621 S. Daimler St
Santa Ana, Ca 92705
www.ktihydraulicsinc.com
(Fig. 1)
Page 1 of 2
