Hongxing CD101 Instruction Manual

Digital controller

Advertisement

Quick Links

DIGITAL CONTROLLER
/
/
CD101 CD401 CD501 CD701 CD901
INSTRUCTION MANUAL
Before operating this instrumen, please carefully read this manual and fully
understand its contents. And always keep it around you to make it available
easily anytime.
·
If failure or error of this instrument could result in a critcal accident
of the system, install an external protection circuit to prevent such
an accident.
·
Do not turn on the power supply until all of the wiring is completed.
Otherwise electric shock, fire or malfunction may result.
·
Use this instrument within the scope of its specificatons. Otherwise
fire or malfunction may result.
·
Do not use this instrument in the places subject to flammable or
explosive gas.
·
Do not touch high-voltage blocks such as power supply terminals,
etc. Otherwise electric shock may result.
·
Never disassemble, repair or modify the instrument. This may
Cause electric shock, fire or malfunction.
CAUTION
·
Only clean the instrument when power off.
·
Please use a soft cloth or cotton paper to clean up the stain
on the display.
·
Do not clean up or touch the display by hard matters in case
of any scratch.
·
Never use sharp & hard matters such ass screwdrivers or ball
pen to touch the buttons on the panel, in case of any scratch
or damage.
1. PRODUCT CHECK
Check whether the delivered product is as specified by referring to the
following model code list.
CD
01
1 2
3
Control action
F: PID action and auto account (inverse action)
D: PID action and auto account (direct action)
Input type,
Range code :
First control output[OUT1](heat-side)
M: Relay output
T:Triac
8: Current (4to20mA DC)
First alarm[ALM1],
Second
N: No alarm
A: Deviation high alarm
B: Deviation low alarm
C: Deviation high/low alarm
D: Band alarm
E:
Deviation high alarm
With hold action
F:
Deviation low alarm
With hold action
Communication function
N: no communication function
Waterproof/dustproof construction
N: No
Waterproof/dustproof construction
1:
Waterproof/dustproof construction
<Accessories>
Mounting bracket: 2 pieces *1
Mounting screws (with hexagon nuts) :
Instruction manual [IMCX01-E1]
*1 ,Cd101,
Mounting bracket: 1 pieces
/
/
IMCX01-E1
WARNING
4
5
6
7
8
See 8.INPUT RANGE TABLE."
V: Voltage pulse
G: Trigger (for triac driving)
alarm[ALM2]
G:Deviation high/low alarm with
hold action
H:Process high alarm
J:Process low alarm
K:Process high alarm with hold
action
L:Process low alarm with lold
action
5: RS-485(2-wire system)
2 pieces *1
(1 copy)
2. MOUNTING
2.1 Mounting cautions
(1) This instrument is intended to be used under the following environmental c
Onditions. (Iec1010)
*OVERVOLTAGE CATEGORY II
(2) Avoid the following when selecting the mounting location.
·
Ambient temperature of less than 0
·
Ambient humidity of less than 45% or more than 85% RH.
·
Rapid changes in ambient temperature which may cuse condensation.
·
Corrosive or inflammable gases.
·
Direct vibration or shock to the mainframe.
·
Water, oil, chemicals, vapor or steam splashes.
·
Excessive dust, salt or iron particles.
·
Excessive induction noise, static electricity, magnetic fields or noise.
·
Direct air flow from an air conditioner.
·
Should be used indoors where the system is not exposed to direct sunlight.
·
Heat to be accumulated radiation heat

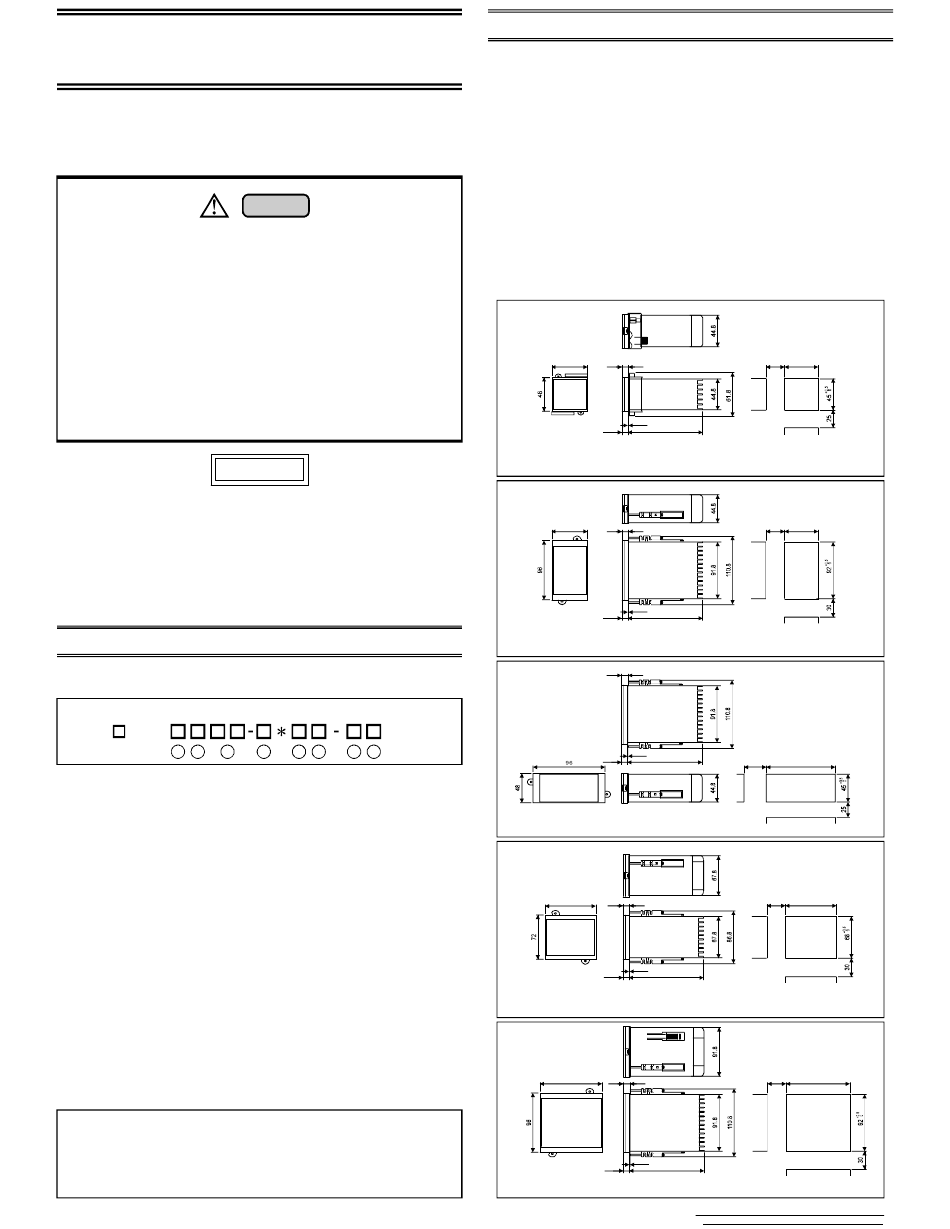

2.2 Dimensions
CD101
48
9.2
1*
8.2
*1: Rubber packing (option)
This instrument corres ponds to a panel thickness of 1 to 10 mm.
CD401
48
9.2
1*
8.2
*1: Rubber packing (option)
This instrument corres ponds to a panel thickness of 1 to 10 mm.
CD501
9.2
1*
8.2
*1: Rubber packing (option)
This instrument corres ponds to a panel thickness of 1 to 10 mm.
CD701
72
9.2
1*
8.2
*1: Rubber packing (option)
This instrument corres ponds to a panel thickness of 1 to 10 mm.
CD901
96
9.2
1*
8.2
*1: Rubber packing (option)
This instrument corres ponds to a panel thickness of 1 to 10 mm.
T e l . 0 0 8 6 5 7 7 6 2 7 5 7 9 5 8
1
F a x . 0 0 8 6 5 7 7 6 2 7 5 1 9 2 0
*POLLUTION DEGREE-2
or more than 50 .
+0.5
25
45
0
100
+0.5
25
45
0
100
100
+0.5
30
92
0
+0.5
25
68
0
100
+0.5
25
92
0
100
i n f o @ h o n g x i n g c h i n a . c o m
w w w . h o n g x i n g c h i n a . c o m
