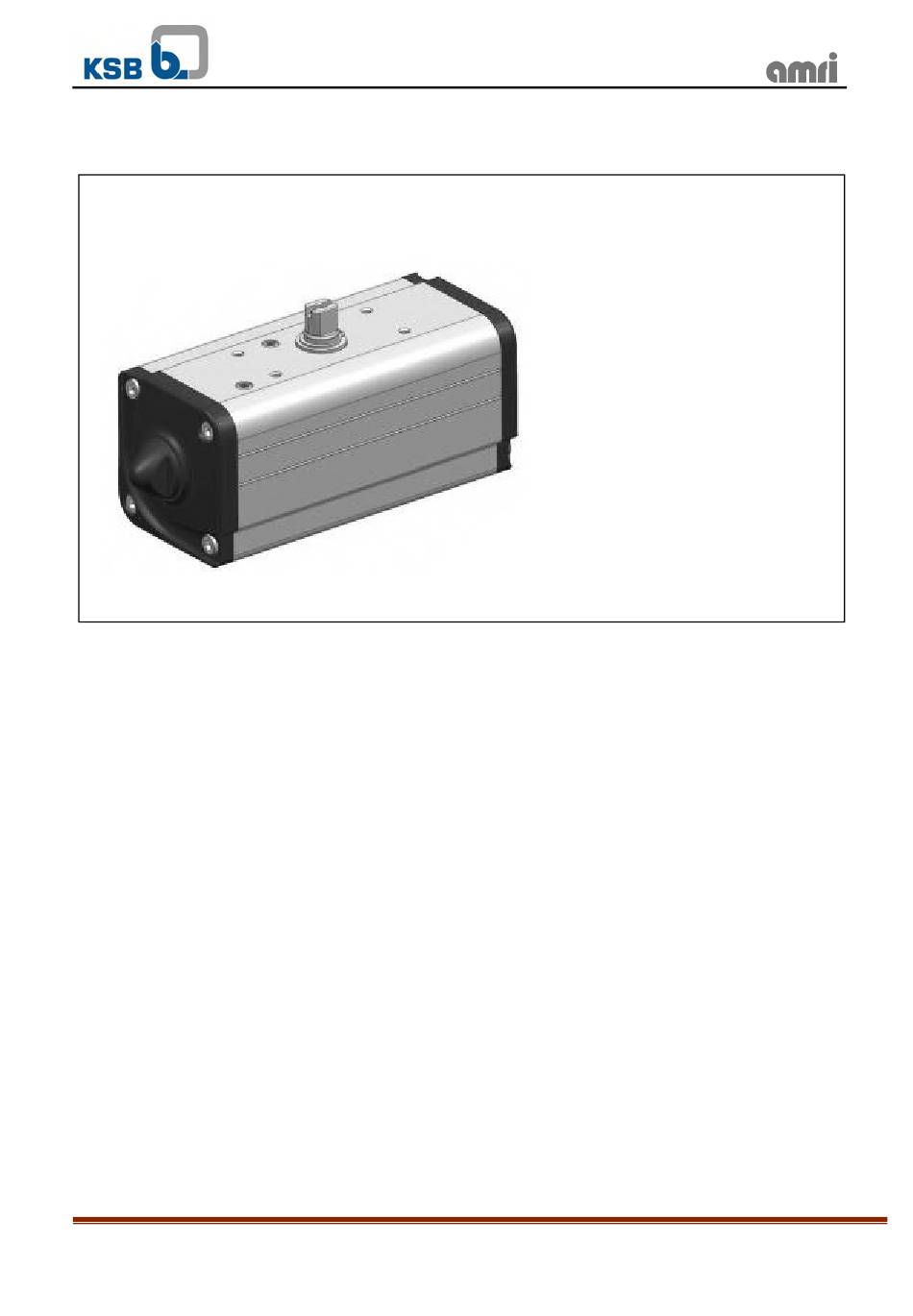

amri ksb NG 1 Instruction Manual

Part turn pneumatic actuator
Hide thumbs

Advertisement

Quick Links

Download this manual
Ref.: 8513.81/05-EN
ACTAIR - NG2 to NG160
INSTRUCTION MANUAL
DYNACTAIR – NG1 to NG80
Part turn pneumatic actuator
ACTAIR NG2 to 160
DYNACTAIR NG1 to 80
INSTRUCTION
MANUAL
CONTENTS
1) GENERAL FEATURES
2) WORKING CONDITIONS
3) OPERATION AND ROTATION DIRECTION
4) SAFETY NOTICE
5) INSTALLATION INSTRUCTION
6) MAINTENANCE AND MATERIALS SPECIFICATION
7) ATEX 2014/34/EU
8) ACTUATORS SPECIAL VERSIONS
9) STORAGE
10) TROUBLESHOOTING GUIDE
11) DISPOSAL
Page 1 of 28

Advertisement

loading
Need help?

Need help?

Do you have a question about the ksb NG 1 and is the answer not in the manual?

Questions and answers

Summary of Contents for amri ksb NG 1

  • Page 1 Ref.: 8513.81/05-EN ACTAIR - NG2 to NG160 INSTRUCTION MANUAL DYNACTAIR – NG1 to NG80 Part turn pneumatic actuator ACTAIR NG2 to 160 DYNACTAIR NG1 to 80 INSTRUCTION MANUAL CONTENTS 1) GENERAL FEATURES 2) WORKING CONDITIONS 3) OPERATION AND ROTATION DIRECTION 4) SAFETY NOTICE 5) INSTALLATION INSTRUCTION 6) MAINTENANCE AND MATERIALS SPECIFICATION...

  • Page 2: General Features

    ACTAIR - NG2 to NG160 INSTRUCTION MANUAL DYNACTAIR – NG1 to NG80 1) GENERAL FEATURES KSB manufacture a wide range of part turn pneumatic actuators for valve remote control. The actuators are available on Double Acting “ACTAIR NG” and Spring Return “DYNACTAIR NG” versions. - The principle of the actuator application is to open and close the connected valve, without the manual operation with lever or hand wheel, by means of an electric-pneumatic connection on remote control.
  • Page 3 ACTAIR - NG2 to NG160 INSTRUCTION MANUAL DYNACTAIR – NG1 to NG80 f) Cycle time. The cycle time is dependent on different operating and installation factors such as the supply pressure, the flow capacity, the connection pipe size, the solenoid valve performance, the valve torque and characteristics, environmental temperature condition Actuator opening, closing and open/close cycle times (sec.).
  • Page 4 ACTAIR - NG2 to NG160 INSTRUCTION MANUAL DYNACTAIR – NG1 to NG80 For aggressive atmosphere and severe environmental condition select the required protection from the external finishes please contact KSB. l) Marking and classification All KSB actuators bodies are marked with the Manufacturer name and address, the actuator Type code including the Series and Size, and its range of Pressure and Temperatures working conditions and limits.
  • Page 5 ACTAIR - NG2 to NG160 INSTRUCTION MANUAL DYNACTAIR – NG1 to NG80 3) OPERATION AND ROTATION DIRECTION Double Acting. The pistons of standard ACTAIR NG actuators are mounted as shown below. This provides the highest torque at the valve start opening for valve clockwise to close. The pistons are then in their outermost position and the end travel stops can be fine adjusted.
  • Page 6 ACTAIR - NG2 to NG160 INSTRUCTION MANUAL DYNACTAIR – NG1 to NG80 Double Acting operation cycle (ACTAIR NG Type). Simple Acting Spring Return fail to close operation cycle (DYNACTAIR NG Type) Actuator operation functionality remote control should be done by means of direct solenoid valve connection to the actuator standard interface VDE/VDI 3845 NAMUR, or by means of pipes screwed on the ports marked with the numbers 2 and 4 and connected to a separate control cabinet.

  • Page 7: Rotation Direction

    ACTAIR - NG2 to NG160 INSTRUCTION MANUAL DYNACTAIR – NG1 to NG80 Fig 3.1 – Typical air connection schema A) Rotation direction In accordance with the international standard ISO 5599-2 the actuator air ports connection position, location, orientation and form shall be clearly identified and marked with the numerate 2 and 4. Standard Double Acting and Simple Acting Spring Return actuators shall be Clockwise (CW) direction to valve Close, and Counter Clockwise (CCW) direction to valve Open.

  • Page 8: Installation Instructions

    ACTAIR - NG2 to NG160 INSTRUCTION MANUAL DYNACTAIR – NG1 to NG80 5) INSTALLATION INSTRUCTIONS The principle of the actuator application is to open and close the connected part turn valve installed in a plant, without the manual operation, by remote control by means of an electric-pneumatic connection. The normal sizing of actuators requires a 20%-30% safety margin over the valve breakaway torque to handle valves.
  • Page 9 ACTAIR - NG2 to NG160 INSTRUCTION MANUAL DYNACTAIR – NG1 to NG80 Fig 5.2 – Valve/Actuator assembly: (A) direct-mount (B) plate-mount (C) bracket-mount Screw torque wrench setting TORQUE Nm SIZE Steel Stainless steel (Cl 8-8) (A4 - 70) 3 to 4 3 to 4 4 to 5 4 to 5...
  • Page 10 ACTAIR - NG2 to NG160 INSTRUCTION MANUAL DYNACTAIR – NG1 to NG80 Fig 5.3 Actuator/Valve rotation control and mounting. ACTAIR NG Type: Closing position valve Opening position valve DYNACTAIR NG ( Type: Fail to close) Closing position valve Opening position valve Mounting on the valve The actuator can be positioned in 4 positions at 90°...
  • Page 11 ACTAIR - NG2 to NG160 INSTRUCTION MANUAL DYNACTAIR – NG1 to NG80 Fig 5.4 Stroke adjustment. Both actuator versions, Double Acting and Spring Return, are provided as standard with 10° stroke adjustment. A) ACTAIR NG (Double Acting) - Close adjustment instruction Port 2 Port 4 -4°...
  • Page 12 ACTAIR - NG2 to NG160 INSTRUCTION MANUAL DYNACTAIR – NG1 to NG80 DYNACTAIR NG ( Single Acting) Spring return Fail to Close - Adjustment instruction OPEN adjustment Port 2 Port 4 -4° 95° Valve NOTA: Representation in arrangement M Open Adjustment: The stroke adjustment on the actuator mounted on the valve should be done with the valve free of any flow pressure or friction impediments, in addiction the actuator shall be disconnected from air supply and equipment.
  • Page 13 ACTAIR - NG2 to NG160 INSTRUCTION MANUAL DYNACTAIR – NG1 to NG80 CLOSE adjustment Port 2 -4° 6° Port 4 95° Valve NOTA: Representation in arrangement M Close adjustment: The stroke adjustment on the actuator mounted on the valve should be done with the valve free of any flow pressure or friction impediments, in addiction the actuator must be disconnected from air supply and equipment.
  • Page 14 ACTAIR - NG2 to NG160 INSTRUCTION MANUAL DYNACTAIR – NG1 to NG80 6) MAINTENANCE AND MATERIALS SPECIFICATION Life time 20 years or number of cycles as per EN15714-3 2009 (see table below). Nominal torque a Nm Piston or vane actuator Maximum stroking time for Minimum number of cycles b testing, based on 0-90°...
  • Page 15 ACTAIR - NG2 to NG160 INSTRUCTION MANUAL DYNACTAIR – NG1 to NG80 Fig 6.1 Actuator components and material list. ACTAIR NG type DYNACTAIR NG type ACTAIR NG type DYNACTAIR NG type POS. DENOMINATION MATERIALS STANDARDS Cylinder Aluminium alloy EN AW 6063 Anodized Piston Aluminium alloy EN AB 46100...
  • Page 16 ACTAIR - NG2 to NG160 INSTRUCTION MANUAL DYNACTAIR – NG1 to NG80 Spring Steel DIN 1.7102 O-ring Nitrilic rubber / FKM / FVMQ External elastic pin of the yoke Steel DIN 1481 Internal elastic pin of the yoke Steel DIN 1481 Centering ring Aluminium alloy DIN AIMgSiPb Anodized...
  • Page 17 ACTAIR - NG2 to NG160 INSTRUCTION MANUAL DYNACTAIR – NG1 to NG80 Fig 6.3 Disassembly. Actuator disassembly operation must have done with the actuator free from any pneumatic and electric connection and dismounted from the valve. Verify that the actuator is air bag free, and the spring return actuator is completely in its springs rest position. Check that the airport 2 and 4 are absolutely vented.
  • Page 18 ACTAIR - NG2 to NG160 INSTRUCTION MANUAL DYNACTAIR – NG1 to NG80 C) The dynamic seal (part N° 10), O-ring (part N° 12) and supports (part N° 11) should be checked before replacement. Do not use sharp tools to cut the dynamic seal and O-ring or remove the supports from the piston as this may cause furrows or marks.
  • Page 19 ACTAIR - NG2 to NG160 INSTRUCTION MANUAL DYNACTAIR – NG1 to NG80 B) Push into its piston seats the P.T.F.E. supports (part N° 11). C) Grease the pistons (part N° 2) on the replaced parts (parts N° 10+11+12), and the piston bearings (part N° 8). D) Grease the internal cylinder surface (part N°...
  • Page 20 ACTAIR - NG2 to NG160 INSTRUCTION MANUAL DYNACTAIR – NG1 to NG80 DYNACTAIR NG Inlet port Conical tool B See page 22 NOTA: Representation in arrangement M Page 20 of 28...
  • Page 21 ACTAIR - NG2 to NG160 INSTRUCTION MANUAL DYNACTAIR – NG1 to NG80 Conical tools A Tools for mounting the O-ring (No.12) and the dynamic seal (No.10) on the piston Centering Push-button Model 38.5 39.4 36.9 24.1 40.5 DYN NG1 38.3 49.4 47.8 39.8...
  • Page 22 ACTAIR - NG2 to NG160 INSTRUCTION MANUAL DYNACTAIR – NG1 to NG80 Conical tools B Tools for mounting pistons (N ° 2) in cylinder actuator (N ° 1) NOTE: Obligation to have two conical tools B to perform this assembly. Model 24.8 18.85...
  • Page 23 ACTAIR - NG2 to NG160 INSTRUCTION MANUAL DYNACTAIR – NG1 to NG80 7) ATEX 2014/34/EU In conformance with the European Directive ATEX 2014/34/EU for the suitability of the equipment intended for the use in Potentially Explosive Atmosphere, KSB declare the conformity of the scotch-yoke actuator of the above mentioned ATEX directive in the limits of its Classification and Zone Classification.
  • Page 24 ACTAIR - NG2 to NG160 INSTRUCTION MANUAL DYNACTAIR – NG1 to NG80 8) ACTUATOR SPECIAL VERSION KSB manufactures and supplies special actuators versions for specific actuator use and environmental. A) Simple Acting spring return Fail to Open. Spring Return Fail to Open actuators are required when in case of the pressurized air or electrical power supply are off the valve should be automatically opened.
  • Page 25 ACTAIR - NG2 to NG160 INSTRUCTION MANUAL DYNACTAIR – NG1 to NG80 B) This double acting ACTAIR NG special version, with the pistons rotated and extra-long adjustment screws, limits the actuator/valve travel in the open position and is used when the valve should never be totally open, but limited up to 45% of its capacity.

  • Page 26: Troubleshooting Guide

    ACTAIR - NG2 to NG160 INSTRUCTION MANUAL DYNACTAIR – NG1 to NG80 9) STORAGE The KSB actuator has been packaged to provide protection during shipment, however, it can be damaged in transport. Prior to storage, inspect the actuator for shipping damage. Keep the actuators in their original packing box during storage. It is recommended to keep the actuators in a clean and dry environment at temperatures between -10°C and +60°C until ready for use.
  • Page 27 ACTAIR - NG2 to NG160 INSTRUCTION MANUAL DYNACTAIR – NG1 to NG80 Page 27 of 28...
  • Page 28 ACTAIR - NG2 to NG160 INSTRUCTION MANUAL DYNACTAIR – NG1 to NG80 KSB S.A.S 4, allée des Barbanniers  92635 Gennevilliers Cedex (France) Tél. : +33 (1) 41 47 75 00 www.ksb.com Page 28 of 28...
