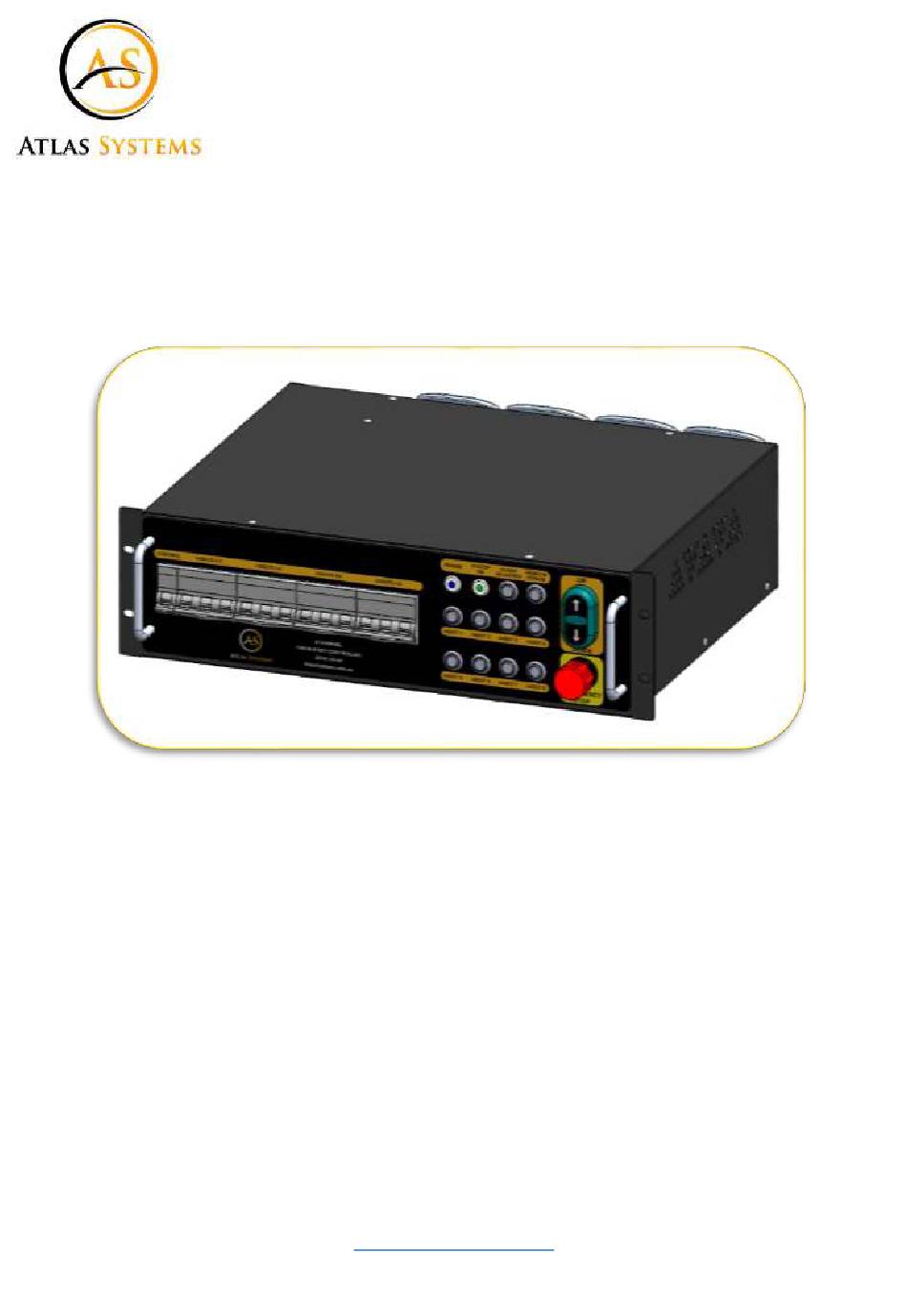

- Page 1 ELECTRIC CHAIN HOIST CONTROLLER 8 CHANNEL OPERATION MANUAL ECHC-08-04 Operation Manual 26/03/2020 Version 1.0 Atlas Systems www.AtlasSystems.com.au...
-
Page 2: Table Of Contents
Introduction ............................4 Operation ............................5 Emergency stop ..........................5 Remote Power Mode ........................6 Remote Pendant ..........................6 Linking multiple units ........................6 Layout ............................... 7 Trouble shooting ..........................8 Specifications ............................ 9 Contact Details ..........................9 Atlas Systems www.AtlasSystems.com.au... -
Page 3: Safety Information
Perform a risk assessment of each situation • Only operate hoists with a direct line of sight • If a potentially hazardous situation arises press the emergency stop button to halt all movement • If in doubt seek advice Atlas Systems www.AtlasSystems.com.au... -
Page 4: Introduction
ELECTRIC CHAIN HOIST CONTROLLER 8 CHANNEL OPERATION MANUAL Introduction The ECHC-08-04 is a cost-effective unit designed to control electric chain hoists in the entertainment industry. It is packaged in an industry standard 3RU case made from 1.6mm and 1.2mm powder coated mild steel and comes with handles for ease of use. -
Page 5: Operation
To release an emergency stop button, twist clock-wise. To disable the hoist controller, isolate the power supply to the controller or turn off the front panel circuit breakers. Atlas Systems www.AtlasSystems.com.au... -
Page 6: Remote Power Mode
Multiple units can be linked via the Link In and Link Out connectors on the rear panel. The Up, Down and E-stop signals are passed to the next controller allowing for multiple units to be controlled from one remote pendant. Atlas Systems www.AtlasSystems.com.au... -
Page 7: Layout
ELECTRIC CHAIN HOIST CONTROLLER 8 CHANNEL OPERATION MANUAL Layout Front Rear Side Atlas Systems www.AtlasSystems.com.au... -
Page 8: Trouble Shooting
Hoist moves in opposite direction to up or down button – swap position of phase selector on the rear panel. • Hoists move in opposite directions to each other – check motor cable and hoist wiring. DO NOT operate hoist with incorrect phase selection as damage may occur. Atlas Systems www.AtlasSystems.com.au... -
Page 9: Specifications
Pin 3 – L3 Pin 4 – Control Common Pin 5 – Up Pin 6 – Down ▪ Dimensions: 481mm x 132mm x 421mm (W x H x D) not including power tail ▪ Weight: 16kg Contact Details www.AtlasSystems.com.au Atlas Systems www.AtlasSystems.com.au...
