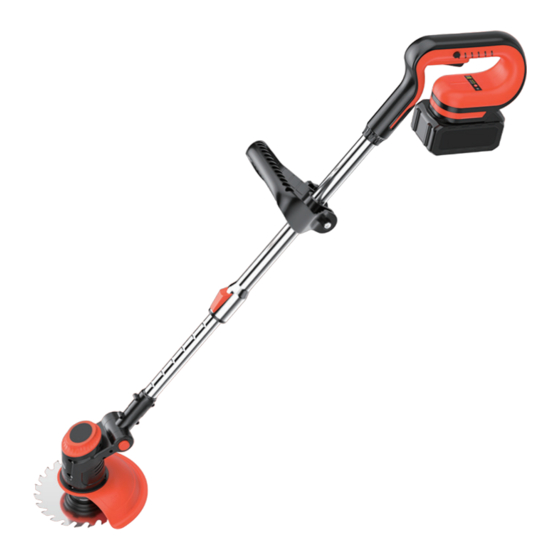

Summary of Contents for Grolf Smart Lithium Electric Lawn Mower

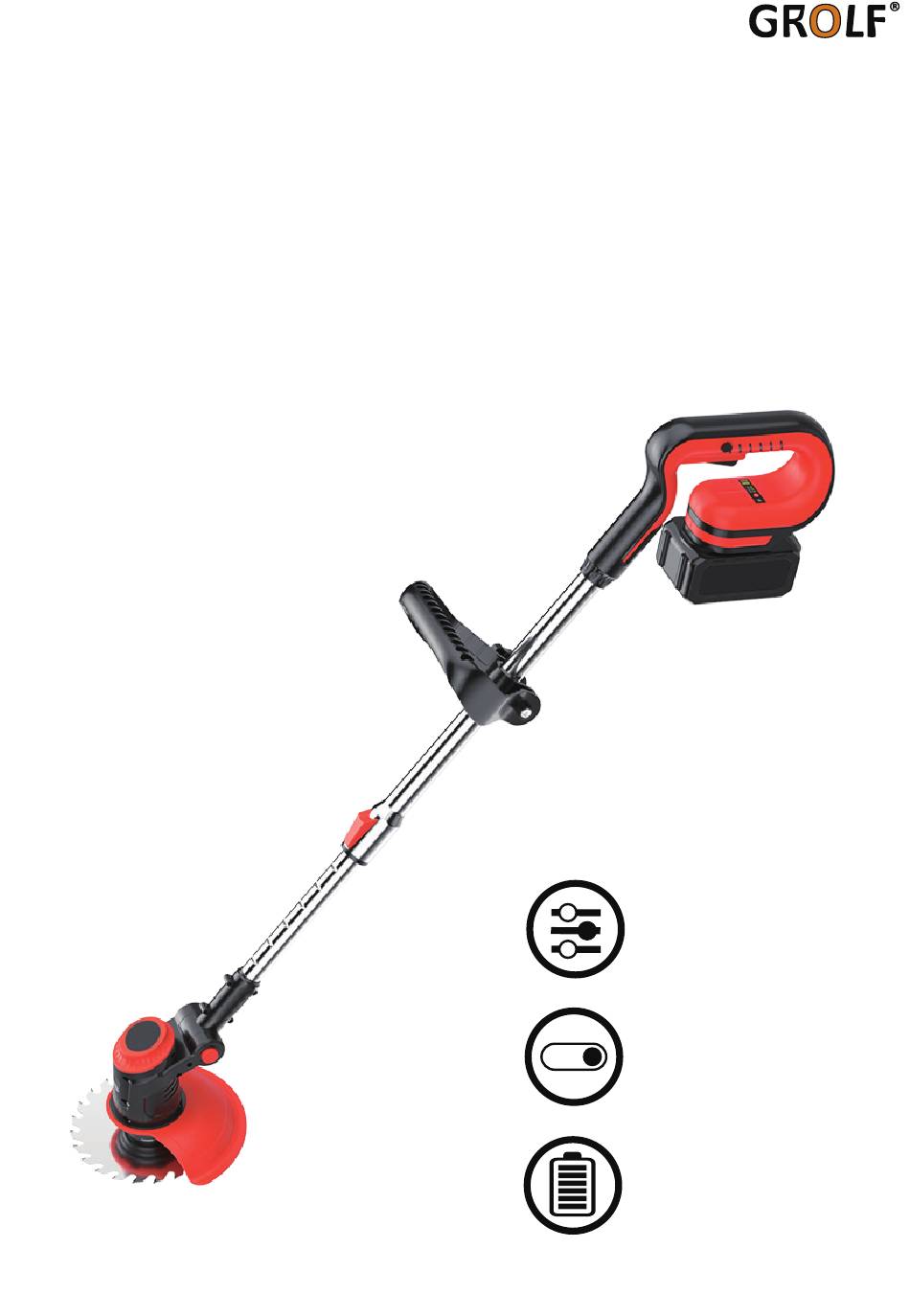

- Page 1 Instruction Manual for Smart Lithium Electric Lawn Mower Version:2.0 Three Gears Adjustable One Key Always Open Power Display...
- Page 2 Security lock Power Switch Motor Gear Adjustment Button Gear Speed Display Battery Level Display...
- Page 3 Lithium electric lawn mower parts list Charger Battery Backing Plate Screw Wrench Round Alloy Blade One Word Blade Fender Carrying Handle...
-
Page 4: Installation Notes
Installation Notes ①:Take out the fuselage and install the grass baffle. Insert the grass baffle into the machine head with the four grooves corresponding. Rotate the fender clockwise to align the snap points. ②:Remove the backing plate screw that holds the blade in place. - Page 5 ④:Screw on the backing plate screw. ⑤:Use a wrench to fix the screw on the shaft,and then use a special wrench to tighten the screw. Be sure to lock the ！ screw securely to hold the blade in place to prevent the blade from falling out during use.
-
Page 6: Function Description
⑦:Install the battery and adjust the motor. ⑧Start using. Note: When starting to use, pay attention to the position of the motor to prevent injury to yourself and others. Function Description ①:One key always open. Press and hold for 3 seconds After the function is turned on, short press the safety lock and power switch to shut down. - Page 7 ②:Gear Adjustment. Click the gear adjustment button. 1:7000r/min.Suitable for mowing young grass. 2:15000r/min.Suitable for cutting straw. 3:20000r/min.Suitable for pruning shrubs ③:Charging Display. Red Light:Charging Green Light:Fully Charged Fully Charged 2-3 hours Related questions ①:Blade comes off. Check blade installation status...
- Page 8 ②:Remove the battery Step 1:Hold the machine Step 2:Press the battery button Step 3:Push the battery out UK/REP Company name: KOVA ASSOCIATES LTD Contact Person：Louisa Timms Address: 72a Kingston Road, Portsmouth, Hampshire, PO2 7PA, United Kingdom Email: KOVA.Compliance@outlook.com...
