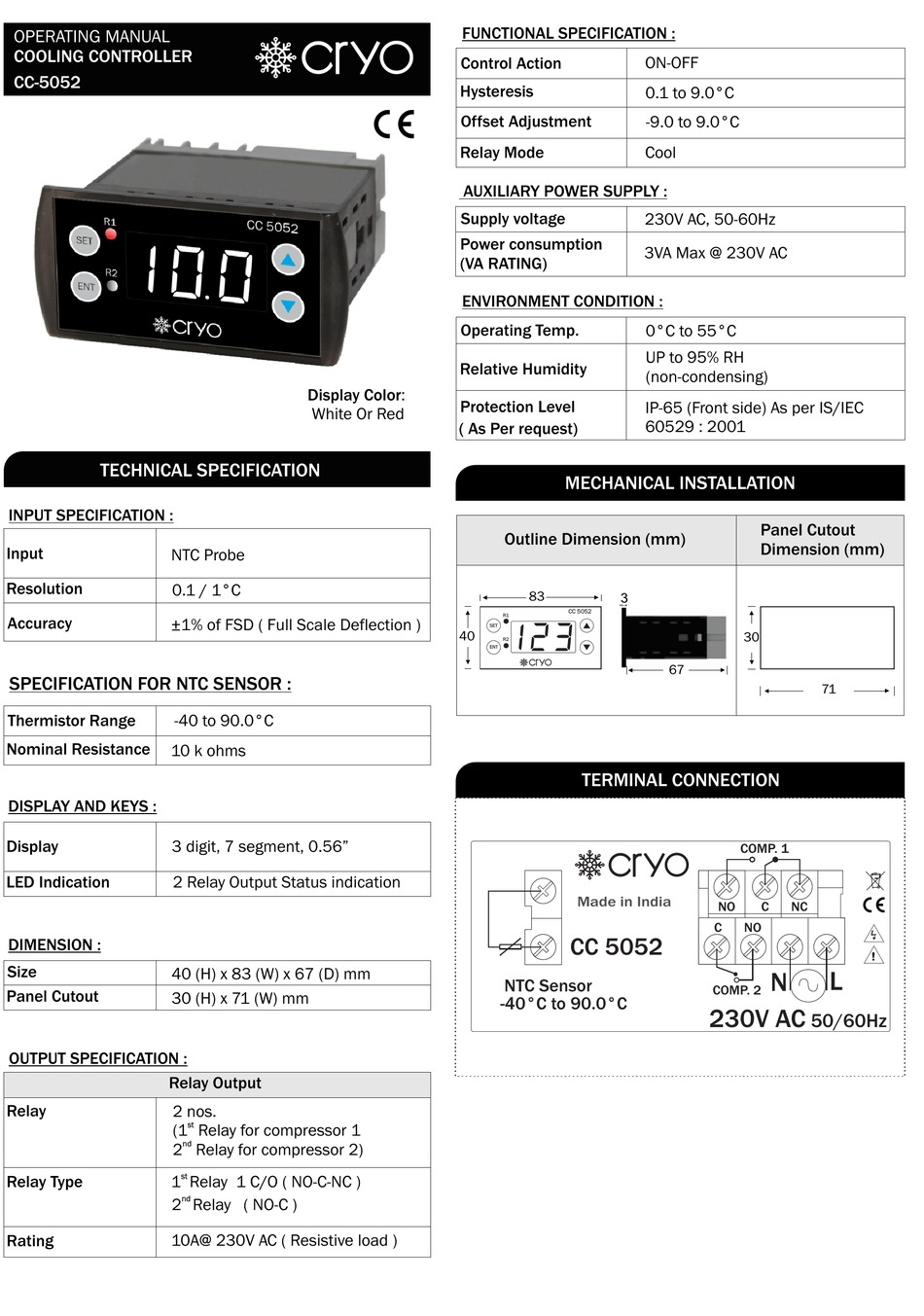

OPERATING MANUAL
COOLING CONTROLLER
CC-5052
TECHNICAL SPECIFICATION
INPUT SPECIFICATION :
Input
NTC Probe
Resolution
0.1 / 1°C
Accuracy
±1% of FSD ( Full Scale Deflection )
SPECIFICATION FOR NTC SENSOR :
Thermistor Range
-40 to 90.0°C
Nominal Resistance
10 k ohms
DISPLAY AND KEYS :
Display
3 digit, 7 segment, 0.56"
LED Indication
2 Relay Output Status indication
DIMENSION :
Size
40 (H) x 83 (W) x 67 (D) mm
Panel Cutout
30 (H) x 71 (W) mm
OUTPUT SPECIFICATION :
Relay Output
Relay
2 nos.
(1 Relay for compressor 1
2 Relay for compressor 2)
st
Relay Type
1 Relay 1 C/O ( NO-C-NC )
2 Relay ( NO-C )
10A@ 230V AC ( Resistive load )
Rating
Display Color:
White Or Red
st
nd
nd
FUNCTIONAL SPECIFICATION :
Control Action
Hysteresis
Offset Adjustment
Relay Mode
AUXILIARY POWER SUPPLY :
Supply voltage
Power consumption
(VA RATING)
ENVIRONMENT CONDITION :
Operating Temp.
Relative Humidity
Protection Level
( As Per request)
MECHANICAL INSTALLATION
Outline Dimension (mm)
83
3

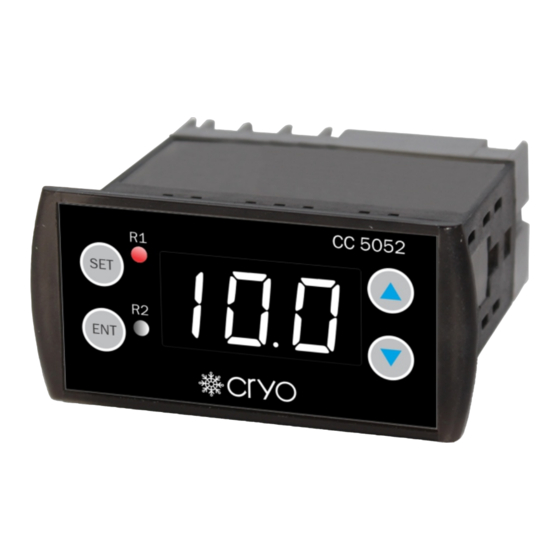

CC 5052
R1
SET
1 2 3
40
R2
ENT
TERMINAL CONNECTION
Made in India
CC 5052
NTC Sensor
-40°C to 90.0°C
ON-OFF
0.1 to 9.0°C
-9.0 to 9.0°C
Cool
230V AC, 50-60Hz
3VA Max @ 230V AC
0°C to 55°C
UP to 95% RH
(non-condensing)
IP-65 (Front side) As per IS/IEC
60529 : 2001
Panel Cutout
Dimension (mm)
30
67
COMP. 1
NO
C
NC
C
NO
N
COMP. 2
230V AC
50/60Hz
71
!
L
Advertisement
Table of Contents
Summary of Contents for Cryo CC-5052
- Page 1 FUNCTIONAL SPECIFICATION : OPERATING MANUAL COOLING CONTROLLER Control Action ON-OFF CC-5052 Hysteresis 0.1 to 9.0°C Offset Adjustment -9.0 to 9.0°C Relay Mode Cool AUXILIARY POWER SUPPLY : Supply voltage 230V AC, 50-60Hz Power consumption 3VA Max @ 230V AC (VA RATING) ENVIRONMENT CONDITION : Operating Temp.
- Page 2 SAFETY PRECAUTION MECHANICAL INSTALLATION GUIDELINES 1. Prepare the panel cutout with proper dimensions as shown All safety related codifications, symbols and instructions that above. appear in this operating manual or on the equipment must be 2. Fit the unit into the panel with the help of clamp given. strictly followed to ensure the safety of the operating personnel as well as the instrument.
- Page 3 PARAMETER DESERIPTION Sensor open or break T2 PARAMETER Sensor is not connected Temperature value goes down to -40 or This function is used to switch on 2 comp. goes up to 99.9 when 1 comp. can’t achieve lower setpoint. In password menu “39” parameter “OPN” have three Example selection of “ON”,”OFF”,”CYL”.
- Page 4 ENTER PASSWORD “39” Set Point Setting P S W Password message 2 5 0 Process Value H y 1 Hysteresis 1 S t 1 Setpoint 1 0.1 To 9.0°C Range: -40°C to +90.0°C S t 2 H y 2 Setpoint 2 Hysteresis 2 Range: -40°C to +90.0°C 0.1 To 9.0°C...
