Features:
1.
App Control via Bluetooth 4.0, long Control distance,convenient to use;
(1)
Support almost every kind of one-wire or two-wire LED driver IC ;
(2)
Support setting pixel number and segment number, control up to 960 pixels;
(3)
With 18 kinds of LED strip music effects, 30 kinds of LED matrix
(4)
music effects and 180 kinds of non-music effects; Color hue, brightness
and speed are adjustable;
There are two ways to input the audio signal on SP107E, AUX IN and Build-in microphone;
(5)
DC5V~24V wide range working voltage, reverse power supply input protection;
(6)
Save user setting when power off.
(7)
Specifications:
2.
Working temperature : -20℃~60℃;
•
Working Voltage : DC5V~24V;
•
Working Current : 18mA~45mA;
•
Remote distance : 20 Meters;
•
Product size : 85mm*45mm*22mm;
•
Product weight : 40g ;
•
Certificates : CE, RoHS;
•

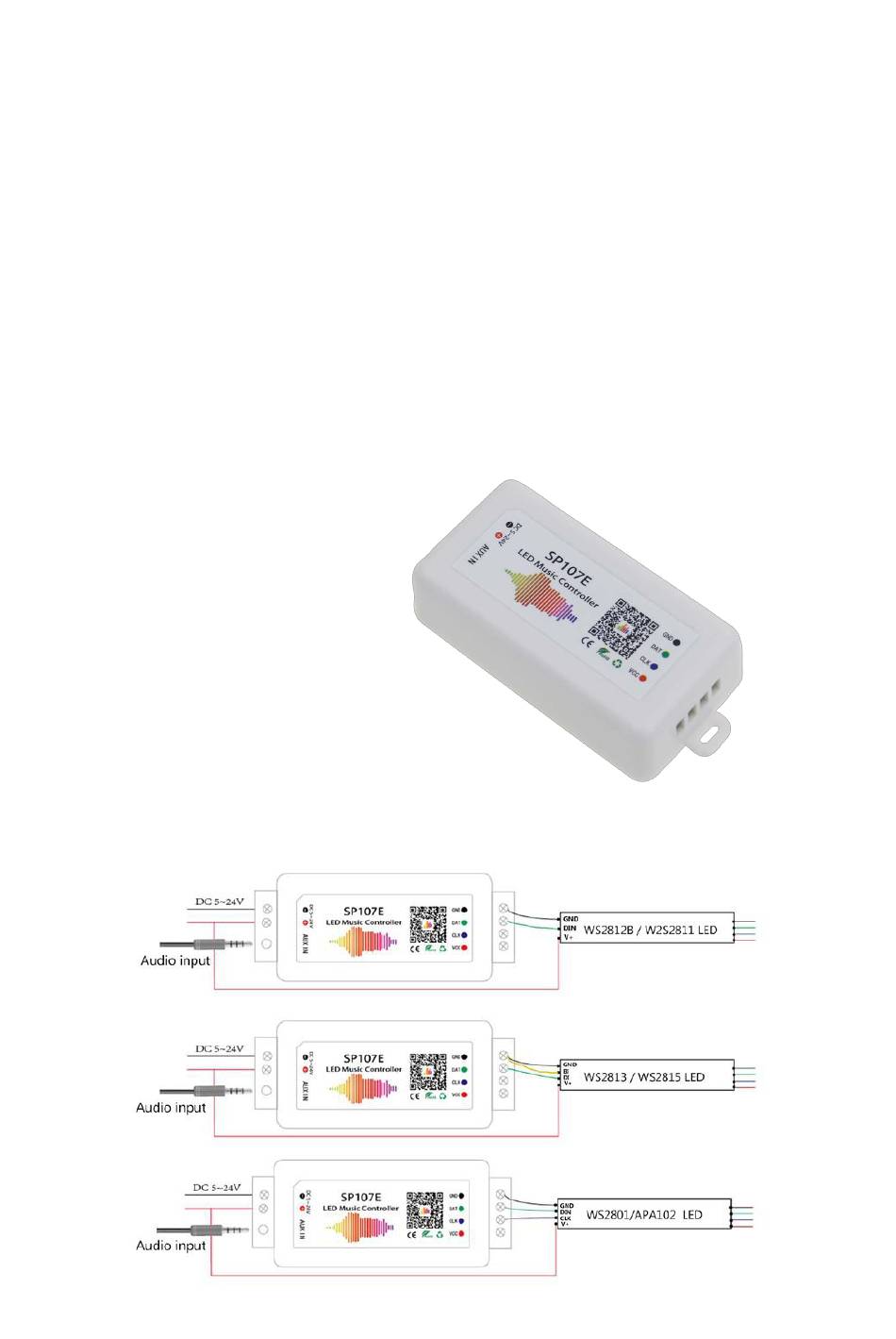

Wire Connection
3.

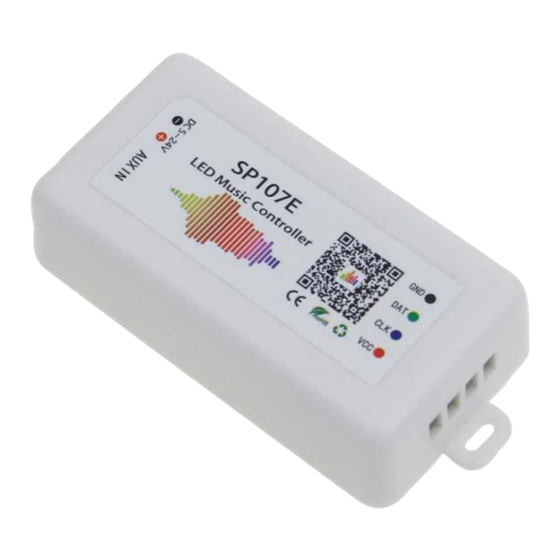

SP107E Bluetooth LED Music Controller
1 / 8
Advertisement
Summary of Contents for BTF LIGHTING SP107E
- Page 1 180 kinds of non-music effects; Color hue, brightness and speed are adjustable; There are two ways to input the audio signal on SP107E, AUX IN and Build-in microphone; DC5V~24V wide range working voltage, reverse power supply input protection;...
- Page 2 Audio Input: There are two ways to input the audio signal on SP107E, AUX IN and Build-IN microphone; AUX IN: Plug the audio splitter cable into the “AUX IN” jack, connect the audio output source(MP3,Phone or tablet…) and the speaker (or headset), controller will automatically switch into AUX input mode;...
- Page 3 (2). Long press the connected device to change the device's name Setting RGB order and led driver IC type (3). Tapping the number to set pixels . (4). (For example WS2812B 16x16 LED matrix panel,Seg:16 Pixels/Seg.: 16) 3 / 8...
- Page 4 Sliding selecting effect(180 in total )-> Precise selecting effect by left right arrows (5). Click the number to mark your favorite effect (6). Long press number to see all your favorite effects by tapping the left or right arrow, and tap the heart (7).
- Page 5 Tapping aUto" to enter AUTO mode, and tapping again to exit (8). Slide the color bar or click on the color block to enter the solid color mode and click solid"to exit (9). user setting solid colors, choosing and adjusting color by sliding the color bar (10).
- Page 6 (11).7 solid color (12). Brightness adjustment (13). Speed adjustment When iC type is set to be 4-channel driver IC like sK6812 or TM1814 etc, adjusting the 4 (14). LED strip music mode, some of which can adjust the color. (15). 6 / 8...
- Page 7 Adjustable sensitivity. (16). Clicking icons can enter or exit the automatic loop mode. (17). (18) LED matrix music mode, dropping dot's and pillar's colors are adjustable and can be removed by uncheck the color bar. 7 / 8...
-
Page 8: How To Contact Us
What can you do if you can’t make it work? Please check your smart phone and led lights and confirm whether they can support the controller. Your smart Phone should be IOS 10.0 or Android 4.4 or later version. Please check output voltage and amp of your power supply and confirm whether it matchs controller and led lights.
