- Page 1 ZBELT-09CAN User Manual Version 0.3 z 2023-02-04...
-
Page 2: General Information

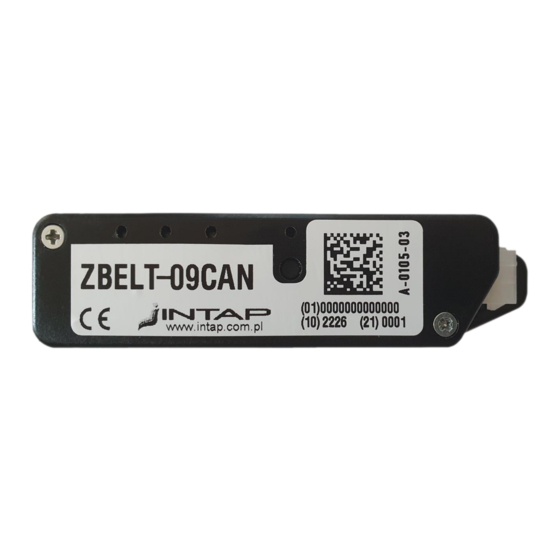

868MHz band. The system contains two types of devices: • ZBELT-09CAN basis module installed in vehicle • ZBELT-0F seat module installed in the armchair. A maximum of 8 seats can be assigned to the driver module. The occupancy status of the seats as well as the fastening status of the seat belts is sent via the CAN bus. - Page 3 ZBELT-09CAN system – user manual Base module – Electrical connection The device is equipped with a male 6-terminal MINI-FIT connector. ZBELT-09CAN Signal outputs at the connector Function Remarks Ground +12V/+24V Power Constant power supply through 0.5A fuse Positive input Optionally +15 signal...
- Page 4 ZBELT-09CAN system – user manual Base Module – Device Status Status LED Pairing button LED showing pairing position LED2 LED1 LED0 Pairing LEDs State status LED Short red flashes = presence of power Normal Dark operation Short green flash = received radio frame...
- Page 5 ZBELT-09CAN system – user manual Seat module connections There are two sensors connected to the seat module: • Seat occupancy pressure sensor - closed when the seat is occupied • Micro-switch located in the safety belt buckle – short when the belt is not fastened...
- Page 6 ZBELT-09CAN system – user manual Seats pairing process In order for the system to work properly, it is required to assign the seats to their numbers in the system so that the display system can present them properly. If you pair an seat in a new location, the system will automatically free up its old position.
- Page 7 ZBELT-09CAN system – user manual Replacing battery in the seat module The seat module is powered by a 3,6V lithium battery placed inside the module. The battery should last at least two years. You need to replace it when the driver's panel indicates low battery by flashing the seat belt symbol.
-
Page 8: Technical Data
Moduł bazowy ZBELT-09CAN 12V lub 24V rated supply voltage – power consumption ~4mA@12V w czuwaniu – transmiter power ~11dBm ERP – Radio frequency 868,5MHz – type of modulation LORA – The housings of the ZBELT-09CAN and ZBELT-09F modules are identical:... - Page 9 ZBELT-09CAN system – user manual Installer settings – CAN Bus mode select The ZBELT-09CAN device can cooperate with various control systems with which the bodybuilder equips the vehicles. In order for the communication to work properly, it is necessary to select the speed of the CAN bus, the type of identifier (11/29bit) and frame IDs.
- Page 10 CAN frames format SEAT_OCCUPATION_ID SEAT_OCCUPATION Send Addres / ID Data CYCLE 1000ms Speed Length 5 bytes Transmision direction ZBELT-09CAN -> USER SYSTEM Decryption Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0 Byte 0...
- Page 11 ZBELT-09CAN system – user manual Data PAIRING ERASE Send Addres / ID ZBELT_COMMAND_ID CYCLE send once Speed Length 7 bytes Transmision direction USER SYSTEM -> ZBELT-09CAN Byte 0 0xFF Byte 1 0x45 = ‘E’ Byte 2 0x52= ‘R’ Byte 3 0x41= ‘A’...
- Page 12 ZBELT-09CAN system – user manual Data GIVE VERSION Send Addres / ID ZBELT_INFO_ID CYCLE send once Speed Length 7 bytes Transmision direction ZBELT-09CAN -> USER SYSTEM Byte 0 CAN board firmware version Byte 1 TRX PCB firmware version Byte 2...
