Summary of Contents for OLiPower LB51100

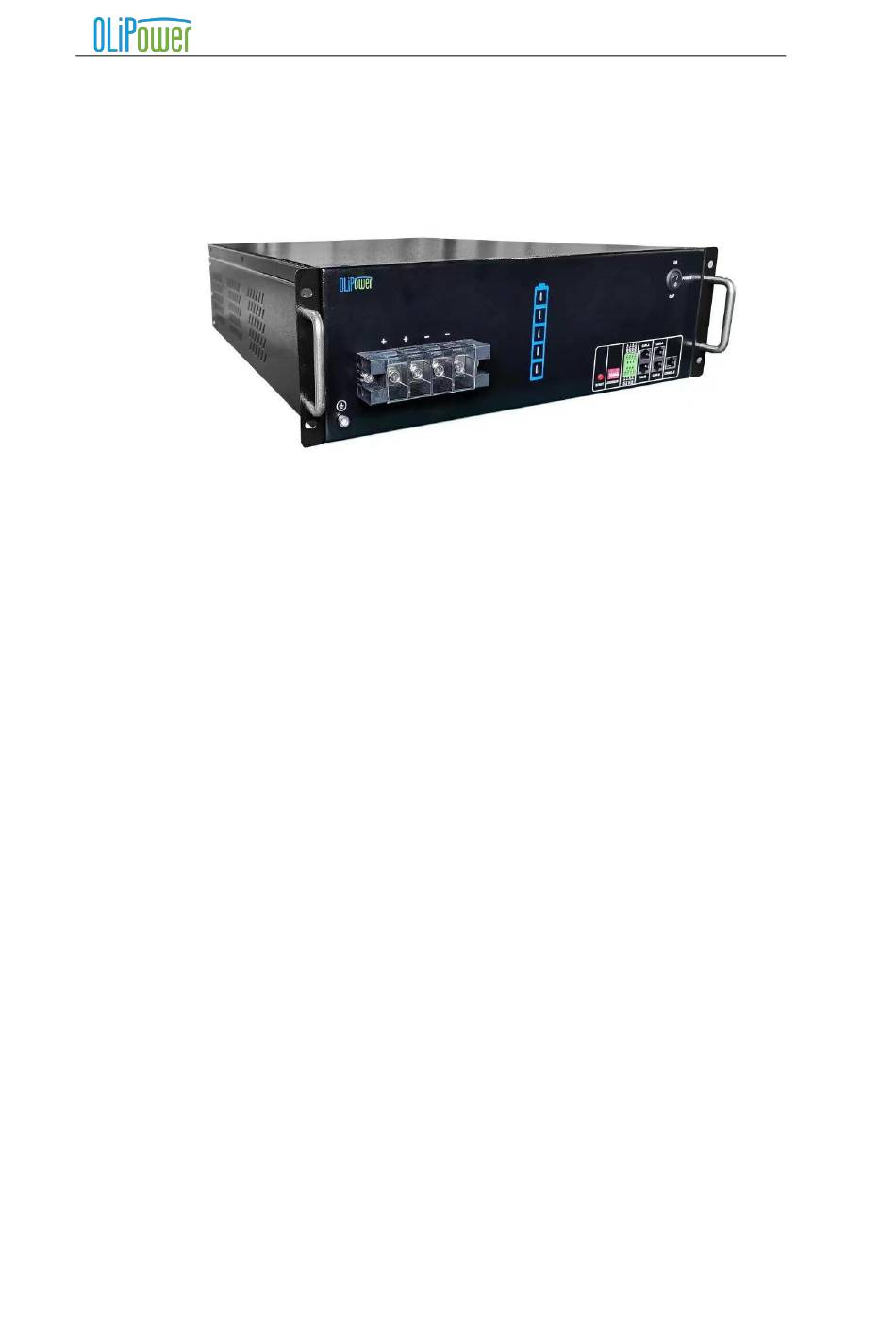

- Page 1 LB51100 Installation and User Manual LB51100 Installation and User Manual Version：V1.0 Shenzhen Olipower Energy & Automation Technology., Ltd...
-
Page 2: Table Of Contents
5.4 Wiring definition ........................9 5.4.1 Terminal function and definition ......................9 5.4.2 A single battery box is connected to the inverter ..................10 5.4.3 Multiple parallel battery boxes connected with inverter ................ 12 Shenzhen Olipower Energy & Automation Technology., Ltd... - Page 3 6.2.1 Start battery box ............................. 14 6.2.2 Shut down battery box ........................... 14 6.2.3 Low battery forced charge function ....................... 15 6.3 The steps of the battery boxes work in parallel ..............15 Shenzhen Olipower Energy & Automation Technology., Ltd...
-
Page 4: Statement
LB51100 Installation and User Manual Statement: This product is low voltage (48V) residential rack battery from Shenzhen Olipower Energy & Automation Technology., Ltd Due to product upgrades or other reasons, this document will make appropriate adjustments. Unless otherwise agreed, this document is intended to be used only as a guide, and all statements, information and advice in the documentation shall not constitute any express or implied. -
Page 5: Preface
To protect using staffs and product, please kindly read this manual carefully which provide detailed information for products’ features, structures, operate standard, maintenance and troubleshooting. Special announcement: This manual can’t be taken as basis of requirement for Olipower. Olipower hold the final explanation right of this manual. 2 Information in this Manual 2.1 About this Manual... -
Page 6: Safety
It is recommended not to use this device for other than the purpose described in this guidance. The substitute use of this product, random change, and use of components other than sold or recommended by Olipower will nullify the product guarantee. 4.2 Identifying The Product... -
Page 7: System Installation
If the LB51100 is faulty, contact your supplier. The LB51100 can be powered on only after all faults are rectified. Failing to do so may escalate faults or damage the device. Observe ESD precautions and wear ESD gloves during maintenance. -
Page 8: Package Information And System Configuration List
5.2.1 Parts list Name Quantity Description Battery box Fixed screw CAN cable LINK cable RS232 cable 1positive&1 negative Power cable 1set Grounding cable Outgoing Inspection Report 5.2.2 Installation Tool 5.2.3 Personal protective equipment 5.3 Installation Shenzhen Olipower Energy & Automation Technology., Ltd... -
Page 9: Product Dimensions
5.4 Wiring definition 5.4.1 Terminal function and definition Power Butten The bottom terminal layout is shown in the following figure: LINK A /B Grounding port B+,B+,B-,B- CAN A /B ADD&IO port Shenzhen Olipower Energy & Automation Technology., Ltd... -
Page 10: A Single Battery Box Is Connected To The Inverter
Step 2: When the battery is not connected to the inverter, start the battery box, then confirm that the battery box running indicator light is bright, the battery box fault indicator light is not bright, and the battery box voltage Shenzhen Olipower Energy & Automation Technology., Ltd... - Page 11 Step 3 Plug the CAN cable into the CAN A or CAN B port, and then connect to Inverter. Shown as following: A single battery box through the CAN communication connection inverter when the DIP switch is defined as follows: Shenzhen Olipower Energy & Automation Technology., Ltd...
- Page 12 Single battery box through the LINK communication connection to the inverter when the address DIP switch defined as follows: CAUTION： Set the DIP switch after the need to restart the battery box, restart the settings will take effect. Shenzhen Olipower Energy & Automation Technology., Ltd...
-
Page 13: Multiple Parallel Battery Boxes Connected With Inverter
It is an Australia installation standard requirement AS/NZS 5139 that an overcurrent protection and isolation device that operates both positive and negative conductors is required between battery and inverter and also between parallel batteries. Shenzhen Olipower Energy & Automation Technology., Ltd... - Page 14 Three battery boxes in parallel when the DIP switch is defined as follows: CAUTION： Set the DIP switch after the need to restart the battery box, restart the settings will take effect. Shenzhen Olipower Energy & Automation Technology., Ltd...
- Page 15 Short press the power button (1S), RUN light on, switch on the isolator between the battery and inverter., battery box is activated normally. 6.2.2 Shut down battery box Long press the power button (5S), RUN light off, switch on the isolator between the battery and inverter, battery box is shut Shenzhen Olipower Energy & Automation Technology., Ltd...
- Page 16 Switch off dc isolators between battery and inverter, and between batteries. Long press the master battery box power button (5s), the master battery box RUN light immediately extinguished, slave battery boxes RUN lights Shenzhen Olipower Energy & Automation Technology., Ltd...
- Page 17 DIP switch connected. Check whether the DIP switch and there is no of the battery main fault when the battery station and the slave station is set Shenzhen Olipower Energy & Automation Technology., Ltd...
- Page 18 Other Please contact the after-sale service anomalies 8 Battery box compatible with the inverter Serial Inverter brand Inverter model number Sunny Island SolaX X-Hybrid Goodwe ES-series SofarSolar ME 3000SP MUST PH&PV series Shenzhen Olipower Energy & Automation Technology., Ltd...
- Page 19 Life time 10 years Storage time (-20℃~35℃) 3 months Operating environment temperature 0-45℃ range Storage temperature range -10-40℃ EMC standard IEC 61000 Warranty period 5 years,4000cycles Protection grade IP20 Support inverter interaction protocol SMA/Solax/GoodWe/SofarSolar/Studer/MUST Shenzhen Olipower Energy & Automation Technology., Ltd...
- Page 20 LB51100 Installation and User Manual Appendix 2- Product size table Product Outline dimension model LB51100 Shenzhen Olipower Energy & Automation Technology., Ltd...
