Sputnik Systems SmartH

Congratulations on your purchase of a SmartH product!

Please read this manual carefully before operating the product.

When using SmartH products always disconnect the power before relocating or mounting your

product! Exercise caution when connecting/disconnecting the power cords/adapters!

Sputnik Systems SmartH® Humidistat and Controller Operating Manual...........................................1

1. Functional overview.....................................................................................................................1

2. Initial setup and installation..........................................................................................................2

3. What to avoid................................................................................................................................3

4. Connecting SmartH controller to your humidifier.......................................................................3

5. Troubleshooting............................................................................................................................5

6. Warranty and support....................................................................................................................5

7. Technical specification.................................................................................................................5

1. Functional overview

SmartH humidistat main function is to control humidifiers and dehumidifiers in residential

•

environments. The humidistat continuously measures indoor temperature and humidity levels

and also can obtain outdoor temperature and humidity levels using an online weather provider

(Internet connection required), which is needed for automatic humidity control. The humidistat

controls humidifiers and dehumidifiers by sending control signals to SmartH controller

wirelessly. The product can function as humidistat or dehumidistat.

SmartH humidistat can be controlled and monitored via SmartH Web dashboard at

•

dashboard

or via mobile

accessed from your local network (WiFi) as wells as away from your home via Internet cloud

using SmartH Web dashboard.

SmartH controller main function is accepting control signals from a SmartH humidistat and

•

switching on/off a humidifier it's wired to. The SmartH controller provides 2 sets of on/off pair

of contacts which control a humidifier by either switching on/off power or closing/opening

HUM contacts.

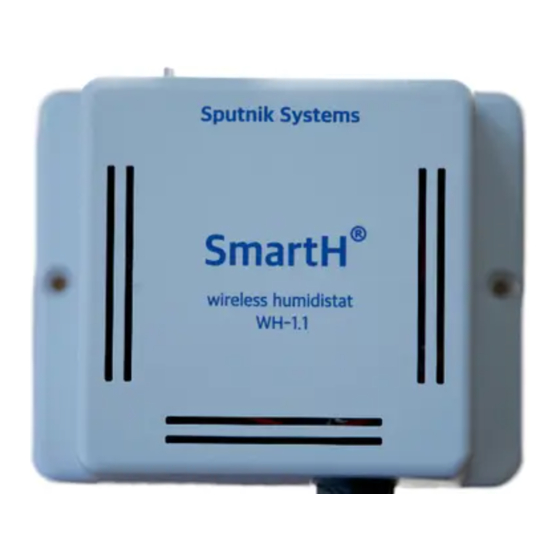

Your SmartH humidistat and controller have blue LED indicator lights - when the devices are

•

connected and able to communicate with each other the indicator light will light steadily,

Humidistat and Controller Operating

Manual

Models WH-1.1 and WHC-1.1

SmartH Humidistat for Android

application. Your humidistat can be

SmartH

Table of Contents

Need help?

Do you have a question about the SmartH WH-1.1 and is the answer not in the manual?

Questions and answers

Summary of Contents for Sputnik Systems SmartH WH-1.1

Page 1 When using SmartH products always disconnect the power before relocating or mounting your product! Exercise caution when connecting/disconnecting the power cords/adapters! Table of Contents Sputnik Systems SmartH® Humidistat and Controller Operating Manual...........1 1. Functional overview........................1 2. Initial setup and installation......................2 3.
Page 2 otherwise it will blink once every 2 sec. Note, without such communication established your humidifier cannot be controlled by the SmartH humidistat. Initial setup and installation Your humidistat should be placed in your living space to monitor humidity, avoid placing it in •...
Page 3 3. What to avoid Avoid placing your SmartH products on vibrating and metal surfaces and near strong magnetic • fields, such as TV or microwave. Vibrations may reduce its service life, and metal surfaces such as AC plenum may negatively affect wireless range of the devices. SmartH products designed to operate indoor, and have no protection against outdoor elements.
Page 4 When connecting to a dehumidifier make sure choose correct mode in the SmartH • dashboard or mobile applications under “Settings” tab. Sample wiring #1: Humidifier/dehumidifier SmartH Controller 24 VAC 5VDC 24VAC from 120VAC Sample wiring #2: Humidifier/dehumidifier SmartH Controller 5VDC 24VAC from 120VAC...
Page 5 5. Troubleshooting 1. Problem: my SmartH device’s blue indicator light keeps blinking, and my humidifier is not receiving ON signal. ◦ Solution: try restarting your controller by powering it off, waiting 30 sec, then powering on, and then apply same procedure to your humidistat. If you still see blinking blue indicator lights after restarting your humidistat try to move the humidistat and the controller closer.
