AU: 1800 029 701
N Z: 0800 466 444
For construction in non-cyclonic areas
Wind rating: N2 as per AS4055-2021
If you require a higher wind rating please contact
us: admin@absco.com.au or 1800 029 701
DOWNLOAD
OUR APP FOR
ASSEMBLY
VIDEOS
Absco Industries

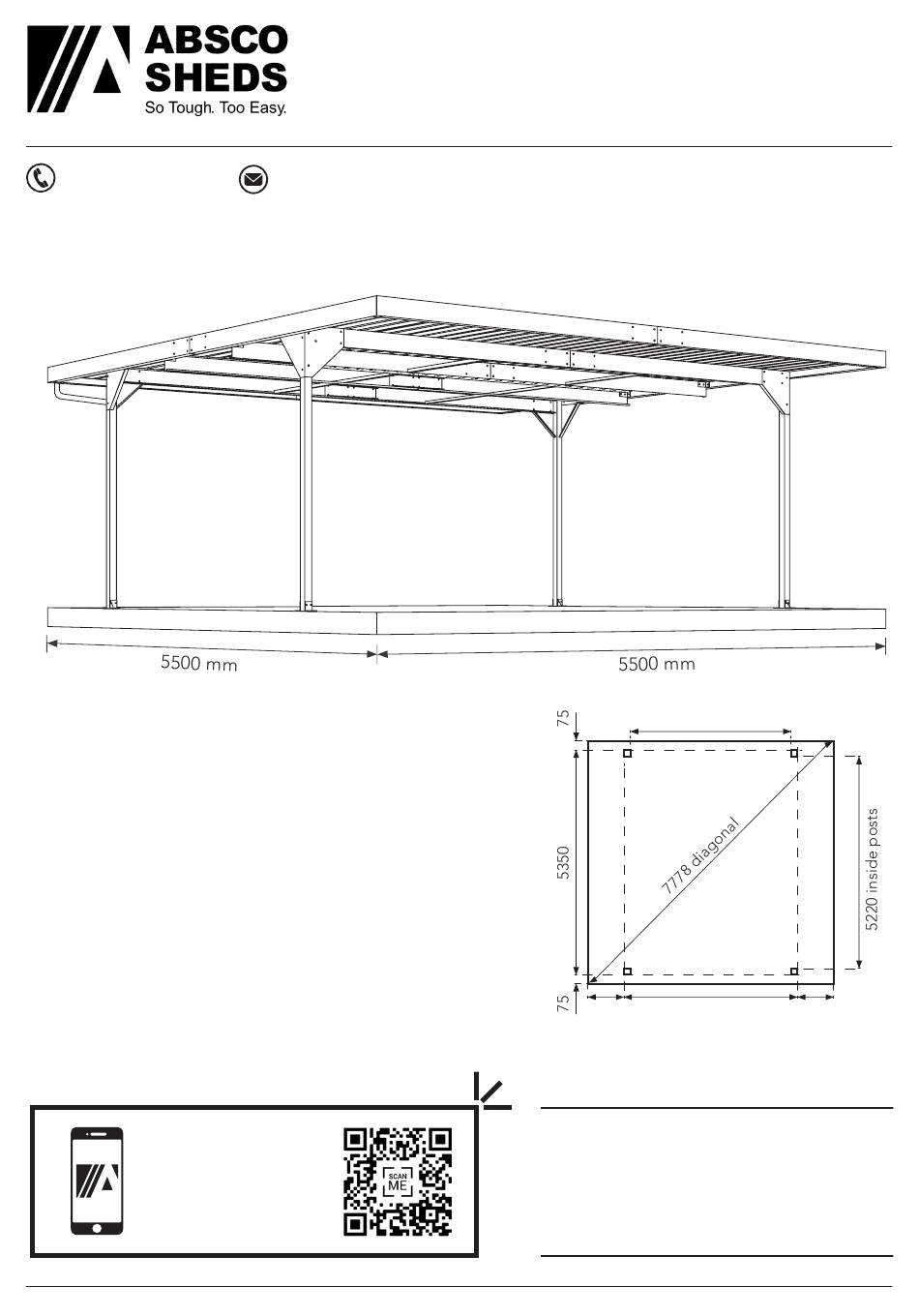

Assembly Instruction Manual
ABSCO SKILLION CARPORT
MODEL: CPDN2
5.50mW x 5.50mD x 2.37mH
admin@absco.com.au
www.abscosheds.com.au
3210 inside posts
1080
Concrete slab & footings detailed
in engineering drawings pg 15,16
PLEASE LEAVE A REVIEW
Tell us about your experience!
Visit www.abscosheds.com.au/review
Model: CPSN2
3340
1080
25/11/22
1
Advertisement
Summary of Contents for Absco Industries SKILLION CPSN2
- Page 1 If you require a higher wind rating please contact in engineering drawings pg 15,16 us: admin@absco.com.au or 1800 029 701 DOWNLOAD PLEASE LEAVE A REVIEW OUR APP FOR ASSEMBLY Tell us about your experience! VIDEOS Visit www.abscosheds.com.au/review Absco Industries Assembly Instruction Manual Model: CPSN2 25/11/22...
-
Page 2: Before Starting Assembly
• Socket set have located every item. If a discrepancy is • 17 mm spanner / shifter found, contact Absco Industries immediately. • Spirit level • Water proof sealant (silicone) • 1.8m ladder •... - Page 3 The end result will give you two “left hand” and “two right” hand brackets. • NOTE: Please use 10mm drill bit and predrill all holes before beginnings construction. Repeat for all four BKT07 Absco Industries Assembly Instruction Manual Model: CPSN2 25/11/22...
-
Page 4: Components List
DRIVER BIT & NUT BOLT FAST FAST M10 x 20 mm M10 WASHER & NUT DYNABOLT WAFER HD FAST FAST 10 x 50 mm TEK SCREW NEOPRENE FAST FAST POP RIVETS WASHER Absco Industries Assembly Instruction Manual Model: CPSN2 25/11/22... - Page 5 ZACO ZACO 120A 07 L ZACO ZACO ZACO ZACO ZACO ZACO ZACO ZACO ZACO ZACO ZACO ZACO 120A ZACO 07 L ZACO ZACO ZACO ZACO 2200 mm 07 R FRONT 2250 mm Absco Industries Assembly Instruction Manual Model: CPSN2 25/11/22...
- Page 6 = 1x Centre cross beam Cross Beams 5350 mm long ZACO ZACO ZACO 4x ZACO228 2x ZACO186 = 2x Post cross beam 5220 mm long ZACO ZACO ZACO 4x ZACO227 2x ZACO186 Absco Industries Assembly Instruction Manual Model: CPSN2 25/11/22...
- Page 7 Seal all joints with water proof sealant such as silicone as these beams are an internal gutter system. The overall dimension of the assembled edge beams joined should be 5500 x 5500 mm Absco Industries Assembly Instruction Manual Model: CPSN2 25/11/22...
- Page 8 Front edge inset inset Mark these four hole positions of the BKT07 on Don’t fasten these brackets yet, just make the the beam and then drill 10 mm holes. holes for now. Absco Industries Assembly Instruction Manual Model: CPSN2 25/11/22...
-
Page 9: Post Assembly
Again using the BKT07 as a template drill these four holes through both sides of the posts and then fasten with four of the longer M10 x 80 mm bolt and a nut with washers both sides. Absco Industries Assembly Instruction Manual Model: CPSN2 25/11/22... - Page 10 Join the 5220 mm cross beam to the top brackets of the front posts with four M10 x 20 mm bolt and a nut with washers per sides. Repeat this step for the rear posts too. Absco Industries Assembly Instruction Manual Model: CPSN2 25/11/22...
- Page 11 Secure cross beams to the side beams as shown Move the ZACO179 inside the beam and to act with two M10 x 20 mm bolt and a nut with as a large washer for the bolts. washers both sides. Absco Industries Assembly Instruction Manual Model: CPSN2 25/11/22...
- Page 12 Take care to check the bolts securing the base brackets, as access can now be awkward. ANCHOR Using the dimensions on the front page secure the frame to the concrete slab with the 50mm dynabolts provided. Absco Industries Assembly Instruction Manual Model: CPSN2 25/11/22...
- Page 13 The remaining sheets are again Make sure the front edge of the 5500mm overlapped by 1 rib. sheeting is hard up against the Where the rear row of sheeting inside front of the beam. Absco Industries Assembly Instruction Manual Model: CPSN2 25/11/22...
- Page 14 TIP: For these front and rear strips replace the tek screws into the sheeting with rivets for a nicer finish. Absco Industries Assembly Instruction Manual Model: CPSN2 25/11/22...
- Page 15 RWG01 self drilling screws. If not cleaned these will cause discolouration and corrosion to roof sheets and galvanised framing sections, see warranty for more details Absco Industries Assembly Instruction Manual Model: CPSN2 25/11/22...
- Page 18 Absco steel building arising from any of the pre-mentioned weather conditions. 6-12 Activity St, Acacia Ridge QLD 4110 AU: 1800 029 701 admin@absco.com.au PO Box 119, Acacia Ridge QLD 4110 N Z: 0800 466 444 www.abscosheds.com.au Absco Industries Assembly Instruction Manual Model: CPSN2 25/11/22...
- Page 19 Lifetime Warranty Statement This warranty against defects is given by: Absco Industries (ABN: 77 869 708 678) Address: PO Box 119 Acacia Ridge QLD 4110 Ph: 1800 029 701 Fax: 07 3344 1191 Email: admin@absco.com.au Date of issue: 18 November 2022 Details of Manufacturer’s Warranty...
- Page 20 IMPORTANT 1. Manufacturer’s Disclosure This warranty against defects shall not apply in the following situations: A) Where the product is not assembled in accordance with the instructions provided in the product kit; B) Where the product is used to store corrosive materials such as fertilizer, chlorine etc; C) The warranty does NOT cover damage caused by storms, wind, rain, snow or poor foundations;...
