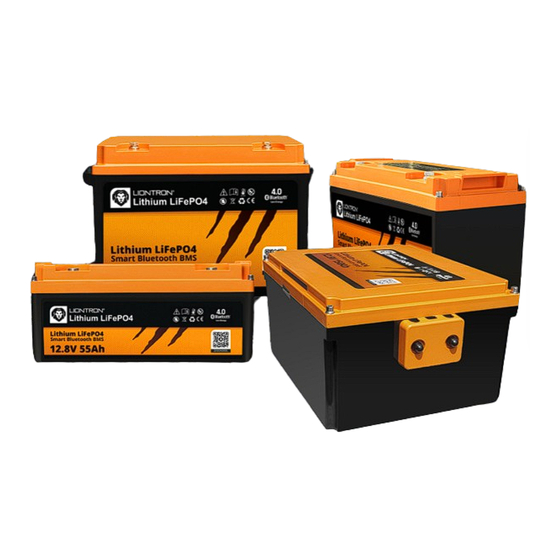

Summary of Contents for LIONTRON LX Smart BMS Series

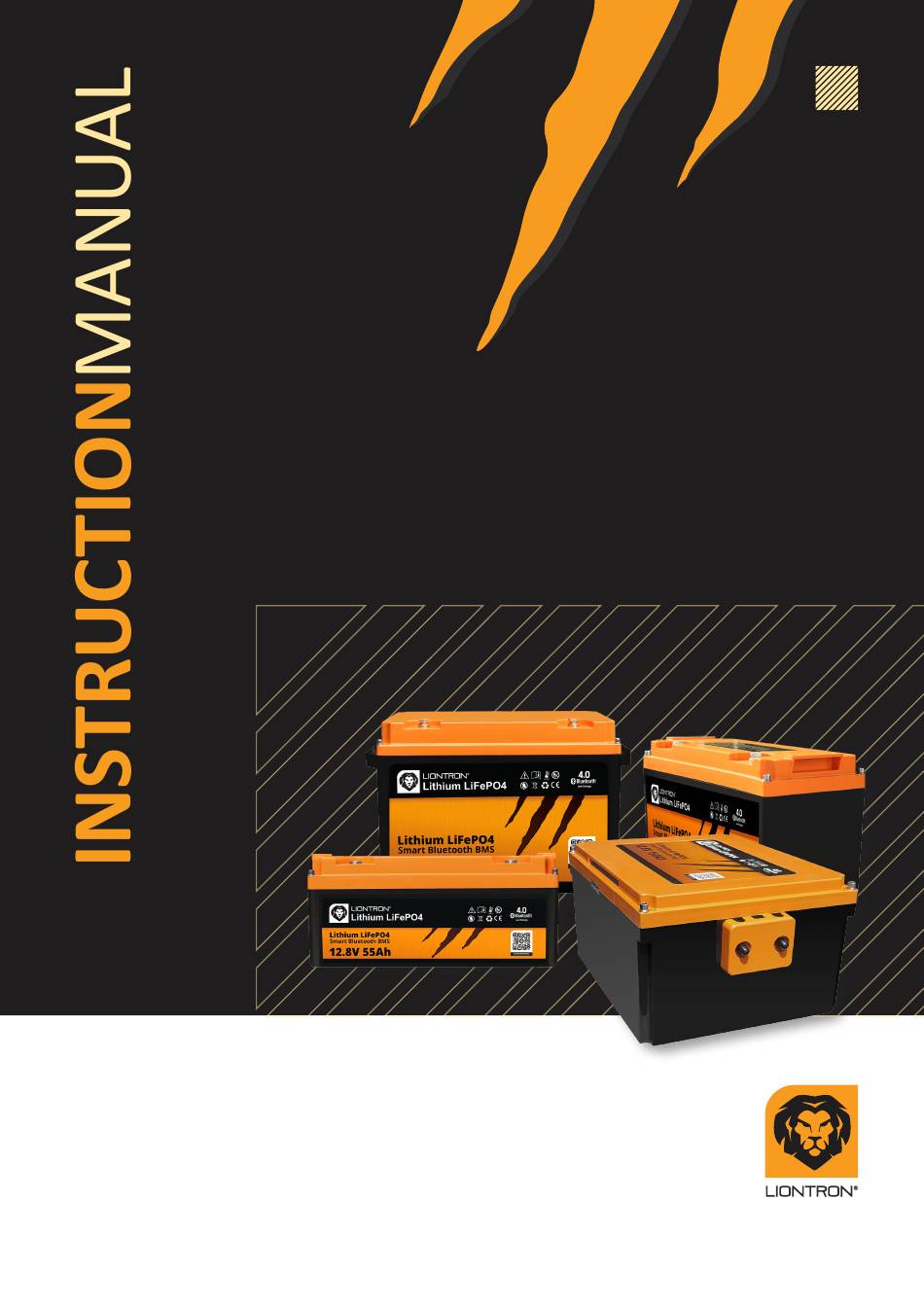

- Page 1 LX Smart BMS Series 12.8V LITHIUM LiFePO4 BATTERIES LX Smart BMS Series 12.8V...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Product description 1.1. Generell information 1.2. Product features/advantages/application areas 1.3. Battery-Management-System (BMS) 1.4. Technical Data 1.5. Liontron App Safety guidelines and measures 10-11 2.1. Intended use 2.2. Markings 2.3. Transport information 2.4. Disposal 2.5. Important notes Installation of battery 12-14 3.1. Check 3.2. -
Page 3: Product Description
1. PRODUCT DESCRIPTION 1.1. GENERELL INFORMATION In order to achieve a stable voltage supply even under heavy loads, a lithium battery is an ideal replacement for a lead-acid battery. In addition to the extremely high weight advantage, it also offers enormous energy reserves. Due to the integrated BMS (battery management system), lithium batteries are suitable for 12V / 24V DC applications. An increase of capacity by using additional Liontron LiFePo4 batteries can be easily done. Lithium-iron-phosphate batteries are the safest of the regular lithium batteriy types. The nominal voltage of a LiFePO4 cell is 3.2V. Therefore one 12,8V LiFePO4 battery consists of four cells in serial connection. MONITORING VIA BLUETOOTH BATTERY-MANAGEMENT-SYSTEM The convenient integrated Bluetooth interface The batterie-management-system (BMS) allows to monitor the battery status at any installed in each battery ensures the batterie time via your smartphone or tablet (Android or switches off in case of e.g. undervoltge or Apple iOS - more about Liontron App on p.10). -
Page 4: Product Features/Advantages/Application Areas
1.2. PRODUCT FEATURES / ADVANTAGES / APPLICATION AREAS HIGH PERFORMANCE TRACTION / STORAGE BATTERIE especially for mobile or stationary use with highest demands. INTEGRATED (BMS) BATTERY-MANAGEMENT-SYSTEM with adaptive cell balancing. Protection against short circuit, overcharge and deep discharge. With integrated Bluetooth monitoring. 100AH LITHIUM LIFEPO4 REPLACE IN FUNCTION APPROXEMATELY 200AH LEAD BATTERY through a maximum of usable capacity. SAFEST LITHIUM-TECHNOLOGY Lithium iron phosphate. No gassing, no explosion or fire hazard. Absolutely maintenance free. HIGH CYCLE LIFE Maximum cycle life with over 3000 cycles even with regular deep discharge. HIGH DISCHARGE CURRENT High discharge power without voltage drop for heavy loads like coffee machines and air conditioners. -
Page 5: Battery-Management-System (Bms)
The current flowing through a LiFePO4 cell is nearly zero when it is fully charged. Less charged cells will not be fully charged for this reason. Over time, the differnce between individual cells can become extreme high, so some cells will fail due to over- or under voltage, even if the overall voltage of the battery is within limits. This is why active cell balancing is built into all of our LiFePO4 batteries. ADDITIONAL FUNCTIONS OF A BMS ARE: - Protection of cells against undervoltage by switching off the load in time. - Protection of cells against overvoltage by reducing charging current or rather switching off the charging process. - Shuttoff the system in case of overtemperature. - Charging of the battery is stopped in case of undertemperature. Therfore, a BMS is essential for preventing damage to lithium batteries. LIONTRON®... -
Page 6: Technical Data
Bluetooth 4.0 with Smartphone App 12V installation, parallel connection possible Application / connection (Serial connection to e.g. 24V not possible) Protection class IP65 Temperature (discharge) -20°C .. +60°C Temperature (charge)* 0°C .. +45°C Temperature (storage) -20°C .. +60°C Terminal Warranty 5 years manufacturer warranty Weight 22,0 kg 29,0 kg Dimensions (W x W x W) in mm 350 x 187x 283 350 x 187x 283 * Automatic reduction of charging current at temperatures below 0°C inside battery. ON OUR WEBSITE WWW.LIONTRON.DE UNDER DOWNLOADS YOU WILL FIND DATASHEETS FOR EACH SINGLE BATTERY. LITHIUM BATTERIEN... - Page 7 Bluetooth 4.0 with Smartphone App 12V installation, parallel connection possible Application / connection (Serial connection to e.g. 24V not possible) Protection class IP65 Temperature (discharge) -20°C .. +60°C Temperature (charge)* 0°C .. +45°C Temperature (storage) -20°C .. +60°C Terminal Warranty 5 years manufacturer warranty Weight 2,9 kg 5,9 kg 11,0 kg Dimensions (W x W x W) in mm 181 x 159 x 76 199 x 170 x 151 350 x 158 x 170 * Automatic reduction of charging current at temperatures below 0°C inside battery. ON OUR WEBSITE WWW.LIONTRON.DE UNDER DOWNLOADS YOU WILL FIND DATASHEETS FOR EACH SINGLE BATTERY. LIONTRON®L...
- Page 8 Application / connection (Serial connection to e.g. 24V not possible) Protection class IP65 Temperature (discharge) -20°C .. +60°C Temperature (charge)* 0°C .. +45°C Temperature (storage) -20°C .. +60°C Terminal Warranty 5 years manufacturer warranty Weight 13,0 kg 14,5 kg 22,0 kg 26,0 kg Dimensions (W x W x W) in mm 260 x 209 x 169 345 x 208 x 172 350 x 260 x 175 390 x 260 x 232 * Automatic reduction of charging current at temperatures below 0°C inside battery. ON OUR WEBSITE WWW.LIONTRON.DE UNDER DOWNLOADS YOU WILL FIND DATASHEETS FOR EACH SINGLE BATTERY. LITHIUM BATTERIEN...
-
Page 9: Liontron App
LIONTRON Smart BMS App 1.5. LIONTRON APP - INSTALLATION AND CONNECTION 1.INSTALLATION Scan the QR-Code on the left. Alternatively, you can install the app via Google Play Store or App Store or enter the following link in the internet browser of your smartphone: https://liontron.de/app Bluetooth App Download https://liontron.de/smartbms 2. CONNECTION Open the app after successful installation. When using the app for the first time, it is necessary to allow permission to use location as well to active bluetooth. Press „Allow“ or „Ok“ as soon as the corresponding meassage appears on your smartphone. -
Page 10: Safety Guidelines And Measures
2. SAFETY GUIDELINES AND MEASURES 2.1. INTENDED USE PLEASE FOLLOW THESE INSTRUCTIONS AND KEEP THEM NEAR TO THE LITHIUM LIFEPO4 BATTERY FOR FUTURE REFERENCE. The battery may only be used for the purposes described in the operating instructions. Use for any other purpose is considered improper use and will invalidade the product warranty. The manufacturer is not liable for any damage caused by incorrect, improper or inappropriate use of the product. -
Page 11: Transport Information
2.5. IMPORTANT NOTES ▪ Do not open the LiFePO4 battery without consulting the dealer. Unauthorized opening of the battery will avaoid the manufacturer‘s warranty. ▪ Use the battery only for the application it is intended for. ▪ Do not short-circuit the LiFePO4 battery. The cable connections to the loads must be protected by a fuse. ▪ Installation and maintenance may only be carried out by qualified personnel. ▪ Do not expose to direct sunlight permanently. Protect from the effects of heat. Temperatures above +60 °C can damage the battery. ▪ Only use compatible chargers. The battery must be disconnected from all devices when stored for a longer priod. ▪ Avoid damage of any kind, e.g. by dropping, drilling or similar. (risk of short circuit). ▪ Always keep the battery dry and clean. ▪ Note the plus (+) and minus (-) markings on the LiFePO4 battery and the device and make sure the polarity is correct. ▪ The cycle capacity may differ from the nominal capacity due to the change of the working temperture and the charge and discharge rate. ▪ Only suitable for parallel connection. Serial connection is not permitted. Load the batteries to the same state ogf charge before interconnecting. Batteries from different manufacturers or of different types should not ne interconnected. LIONTRON®L... -
Page 12: Installation Of Battery
3. INSTALLATION OF BATTERY Make absolutely sure that the LiFePO4 battery is not connected with reversed polarity. If the battery is connected incorrectly, the BMS electronics will be irreparably damaged and must be replaced with a new BMS board. This is not a warranty case. 3.1. CHECK After receiving the LiFePo4 battery, check whether the device has been damaged externally in any way, e.g. by transport. If this is the case, do not operate the device and contact the seller. 3.2. SCOPE OF DELIVERY LIONTRON Battery Screw Washer Spring washer ACCESSORIES SOLD SEPARATELY Battery cable (Plus) Battery cable (Minus) -
Page 13: Connection Example
2 Nm torque PARALLEL CONNECTION DO NOT CONNECT SERIAL! to increasy the capacity Ensure identical cable The battery is not suitable cross-sectionsand cable for serial connection! lengths when connecting Disregard can lead to a the batteries to eachother. defect! LIONTRON®L... -
Page 14: Installation Position / Conditions
3.4. INSTALLATION POSITION / CONDITIONS Lithium LiFePo4 batteries are heavy. Make sure that they are properly and securely fastened and always use the appropriate transport equipment. In case of an accident, unsecured batteries could become a projectile! Always handle lithium batteries with care. NOTE: BATTERIES CAN BE INSTALLED IN UPRIGHT AND ALSO IN LYING POSITION. -
Page 15: Batterie Use
Float voltage 13.8V Equalize current in percent Max. charge current depends on model Max. equalizing time 2 Std. Recommended charge current 0.5C Voltage when fully charged 13.2V Equalize voltage 0.0V Time f. state of charge detection 3min Re-bulk voltage offset 0,1V Peukert-exponent 1.05 Absorption time fixed Charging efficiency Observe the operating instructions of the respective device. The designations may differ. LIONTRON®L... -
Page 16: Errors And Solutions / Faq
A CONNECTION VIA BLUETOOTH DOES NOT WORK. For a connection to the battery, you require the LIONTRON app. A direct connection via the bluetooth menu of your smartphone is not possible. THE BATTERY DOES NOT APPEAR IN THE LIST OF AVAILABLE DEVICES IN THE APP. A battery can only be connected to one smartphone at a time. If the battery does not appear in the list of available devices in the app, make sure that no other device is already connected to the battery. Also, make sure that bluetooth is turned on. Your device must support at least bluetooth 4.0. In some cases, reinstalling the app helps to... -
Page 17: Technology Support
IF YOU HAVE ANY QUESTIONS ABOUT YOUR PURCHASE OR THE OPERATION OF YOUR BATTERY, WE WILL BE HAPPY TO HELP YOU. SERVICE-CONTACT: MO.-FR. 10:00-16:00 support@liontron.de E-MAIL: +49 (0) 2157 - 144 90 70 TEL.: +49 (0) 2157 - 144 90 71 FAX: help.liontron.de... -
Page 18: Warranty And Liability
(date of invoice), but maximum 1 year after manufacture. The warranty period is not extended due to the provision of services under this warranty, in particular not in the case of replacement or repair. The warranty period does not start new in these cases. This warranty is valid for all Liontron Lithium batteries with a date of purchase on or after 01.01.2019. Excluded are accessories, consumables and other attachments to the product. The territorial scope of the guarantee protection is Europe-wide. - Page 19 8.4. DISCLAIMER Not covered by the warranty promise are damages, defects and malfunctions caused by: a) Force majeure (e.g. lightning strike, overvoltage, thunderstorm, flood, fire) b) normal erosion or abrasion c) mechanical impact or force influences such as transport damage, fall, deformation, d) improper, abusive or careless handling or use, e) Faulty installation or start up, f) Malfunction of other connected devices, g) Disregard of safety precautions, h) own modifications, programming or repairs, i) use not in accordance with the operating instructions or otherwise improper handling of the goods 8.5. PLACE OF EXECUTION AND JURISDICTION German law shall apply to this warranty. The place of performance for the obligations arising from this warranty is Nettetal, Germany. As far as permissible, the place of jurisdiction is Nettetal, Germany. Stand of the warranty conditions: 01. Juli 2019 LITHIUM BATTERIEN...
- Page 20 STRONG LIKE A LION A strong partner worldwide. Liontron GmbH & Co. KG E-Mail: info@liontron.de Industriestr. 1 Tel. +49 (0) 2157 - 144 90 70 Fax. +49 (0) 2157 - 144 90 71 D-41334 Nettetal www.liontron.de...
