Summary of Contents for Evotech E-Vac 1 HP

Page 2 INDEX 3 PRESENTATION 3 DEAR CUSTOMER 3 SUPPLIER / MANUFACTURER 3 HANDLING INSTRUCTIONS 3 PRODUCT IDENTIFICATION 4 PRODUCT COMPONENTS 5 EQUIPMENT DESCRIPTION 5 E - VAC PUMPS CHARACTERISTICS 7 TECHNICAL SPECIFICATIONS 7 GENERAL CHARACTERISTICS 9 DIMENSIONAL (mm) 9 SYMBOLOGIES 10 INSTALLATION 10 ELECTRICAL CONNECTIONS 12 HYDRAULIC INSTALLATION 13 WIRING / CIRCUIT BREAKER DIMENSIONING TABLE...
Page 3: Handling Instructions
PRESENTATION DEAR CUSTOMER DEAR CUSTOMER, Congratulations and welcome to the Evotech Family, we are proud of your preference for choosing our product! This manual provides a general presentation of the equipment. It describes important details that can guide you for its correct use and preventive maintenance, as well as the necessary care to extend its lifespan and aspects that may compromise the warranty.
Page 4: Product Components

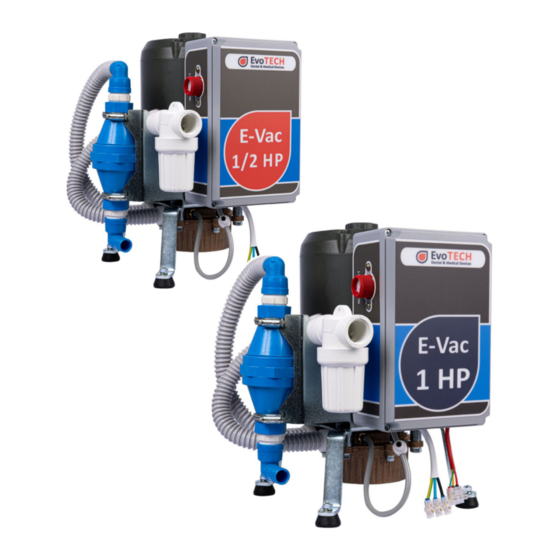

PRODUCT COMPONENTS The contents of this page are informative, and the equipment may be presented differently from the illustration. Therefore, when purchasing the product, check the technical compatibility between the equipment, the couplings and their accessories. 01. Electric motor 02. Protection box for electrical components 03.
Page 5: Equipment Description
Bivolt feature leaves the factory set for operation in 220V, requiring only the repositioning of the electric whips to change into 127V (this activity must only be carried out by an authorized Evotech technician); CONTROL VOLTAGE: 24 Vdc, supplied via Transformer.
Page 6 DAMPING SYSTEM: Through four leveling feet equipped with vibraless system; ELECTRICAL COMPONENTS PROTECTION: The product has an electric whip with a fuse, but it is necessary to install a circuit breaker that does not come with the product; FINISH COVER (Optional): Manufactured with steel plate with electrostatic painting;...
Page 7: Technical Specifications
TECHNICAL SPECIFICATIONS GENERAL CHARACTERISTICS MODEL E-Vac 1HP POWER SUPPLY VOLTAGE 110/220V and 127/220V NOMINAL CURRENT 110V/50Hz = 14,1 A 220V/50Hz = 7,03 A 127V/60Hz = 12,6 A 220V/60Hz = 6,2 A FREQUENCY 50/60 Hz NOMINAL POWER 110V/50Hz = 1551 VA 220V/50Hz = 1546 VA 127V/60Hz = 1600 VA 220V/60Hz = 1364 VA...
Page 8 GENERAL CHARACTERISTICS MODEL E-Vac 1/2HP POWER SUPPLY VOLTAGE 110/220V and 127/220V NOMINAL CURRENT 110V/50Hz = 9,16 A 220V/50Hz = 4,58 A 127V/60Hz = 8,58 A 220V/60Hz = 3,68 A FREQUENCY 50/60 Hz NOMINAL POWER 110V/220V / 50Hz = 1008 VA 127V/60Hz = 1090 VA 220V/60Hz = 810 VA 110/220V/50Hz = 2930...
Page 9 DIMENSIONS SYMBOLOGIES RECYCLABLE FRAGILE NOTE: INDICATES USEFUL INFORMATION PROTECT FROM FOR PRODUCT OPERATION SUNLIGHT WARNING, CHECK THE KEEP DRY INSTRUCTIONS MANUAL DANGEROUS VOLTAGE THIS SIDE UP TEMPERATURE LIMITS MAXIMUM STACKED STORAGE / TRANSPORT...
Page 10: Installation
INSTALLATION Installation of this equipment requires specialized technical assistance from Evotech. Request the presence of an Evotech representative technician at the resale or at the nearest Authorized Technical Assistance position, or through the Evotech Customer Service: Phone: 55 (16) 3951-7542 / E-mail: comercial@grupoevotech.com.br...
Page 11 b) Model with suction pipe wash system In this model, an Electronic Board has been included to control the time that the pump remains on, to clean the pipes: Backwash System Operation When placing the aspirator on the support of the auxiliary unit, the vacuum pump will continue to work for a few seconds in order to suck up all the debris and clean the suction pipe.
Page 12: Hydraulic Installation
HYDRAULIC INSTALLATION Activation of the suckers Consult the manual of the dental office or the vacuum pump kit to locate the drive wiring of the micro switches and connect to the connector (Sindal type) of the vacuum pump (Fig. 10, page 4).
Page 13 Always use long radio curves and unions for the pipes. DO NOT USE IMPORTANT Evotech vacuum pumps are compatible with any dental office Brand. 1 1 3...
Page 14: Water Flow Setting
For a smaller water flow, the suction capacity will be smaller and the internal temperature of the turbine set will become larger , which can affect the lifespan of the sealing system. (Mechanical seal). 3) Points 1 and 2 are not covered by Evotech Guarantee. 1 1 4...
Page 15: Precautions, Restrictions And Warnings
Evotech is not responsible for damages or accidents caused by a bad installation performed by a technician not authorized by Evotech.
Page 16 Evotech, you are ready to begin your work operations. Install the equipment in a place where it will not be damaged by pressure, temperature, humidity, direct sunlight, dust, or salts. The equipment must not be subjected to inclination, excessive vibrations, or shocks (including during transport and handling).
Page 17: General Cleaning
If the equipment shows any anomalies check if the problem is related to any item listed in the UNEXPECTED - TROUBLESHOOTING topic. If the problem cannot be solved, turn off the equipment, unplug the power cord and contact Evotech Customer Service.: Phone: (16) 3951-7542 / E-mail: comercial@grupoevotech.com.br...
Page 18 MAINTENANCE, CLEANING AND ASEPSIA The solids and residues filter is placed in the suction inlet of the vacuum pump and must be cleaned daily. Before cleaning the filter, the enzymatic solution must be suctioned to clean the suction tube and the pump block. Daily suck 1 liter of water added to the enzymatic solution and later a specific disinfectant solution for dental vacuum cleaners, these products are sold in the main dental offices in the country.
Page 19: Final Considerations
Among the precautions you should take with your equipment, the most important is related to the replacement of parts. To guarantee the lifespan of your device, replace it with genuine Evotech parts. They are guaranteed to comply with the standards and technical specifications required by the representative of Evotech.
Page 20: Equipment Warranty
EQUIPMENT WARRANTY This equipment is covered by the warranty terms and standards contained in the Warranty Certificate that accompanies the product. 1 2 0...
Page 21 1 2 1...
Page 22 1 2 2...
Page 23 1 2 3...
Page 24 1 2 4...
