Delta DC Wallbox Stand Installation And Operation Manual

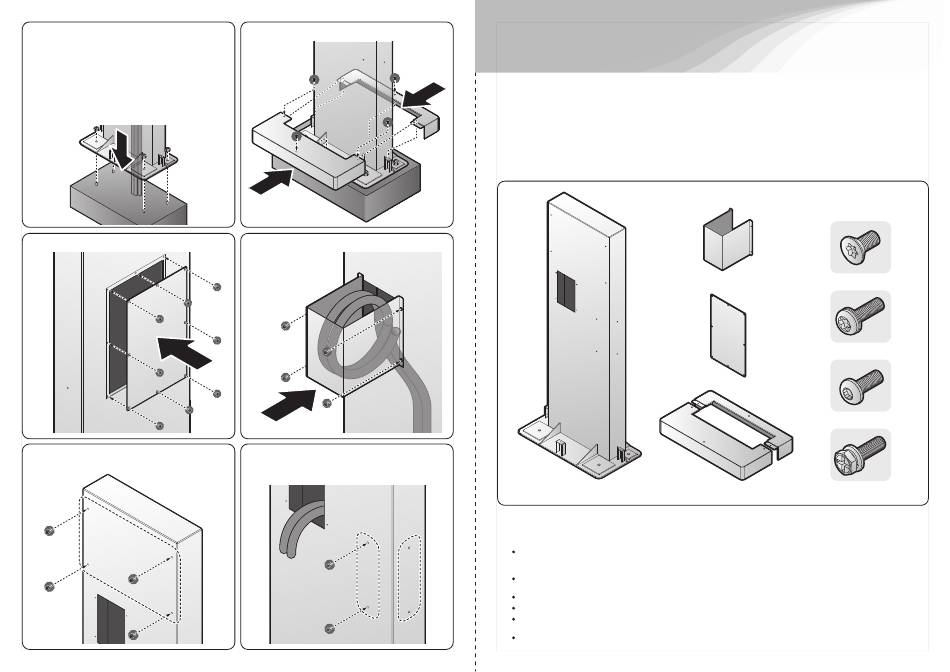

5. Align the stand with the anchoring bolts
and lower it in the bolts. Take up any cable
slack if needed.
6. Use a spirit level to ensure the stand is
vertically and horizontally leveled.
7. Start on one corner, insert and tighten the
nut. Alternate to the opposing corner and
repeat for the remaining nuts.
9. Install the installation cover.
11. Install the DC Wallbox charger securing
bracket (included with DC Wallbox charger).
8. Install the stand base covers.
10. Install the cable cover.
12. Select a position and install the charging
plug hanger (included with DC Wallbox
charger).
4
DC Wallbox Stand
Installation and Operation Manual
INTRODUCTION

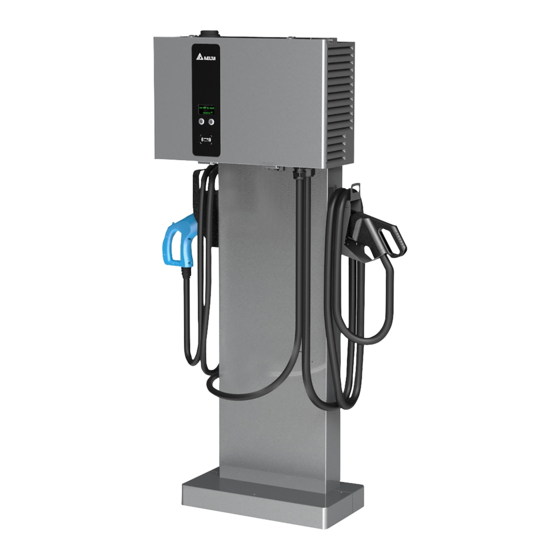

DC Wallbox Stand is designed for flexible and cost-effective installation of an DC Wallbox charger, best choice to power
battery and plug-in electric vehicles, in indoor or outdoor environments.
OUT OF THE BOX
The following items are included in the packaging. Only use the enclosed screws to install the stand or covers on the stand.
Note: Do not mix stand and charger screws. Only use the enclosed stand screws in the installation. Do no use
charger screws in the stand installation.
Installation cover (1 pcs)
Stand (1 pcs)
Stand base covers (1 pcs)
INPORTANT SAFETY AND WIRING INSTRUCTIONS
SAFETY AND COMPLIANCE
This document provides instructions for the DC Wallbox Stand and should not be used for any other product. Before
installation of this product, read this manual carefully and consult with a licensed contractor or trained installation
expert to make sure of compliance with local building codes and safety standards.
Only a licensed contractor, and/or a licensed electrician in accordance with all applicable state, local and national
electrical codes and standards, should install the DC Wallbox Stand.
Wear appropriate personal protective equipment.
Ensure all materials and procedures used in the installation follow local building codes and safety standards.
Information provided in this manual in no way exempts the user of responsibility to follow all applicable codes or safety
standards.
The manufacturer is not responsible for physical injury, damage to property or equipment caused by the installation of
this device.
Cable cover (1 pcs) M4x8 (12 pcs)
M4x11 (4 pcs)
M6x10 (4 pcs)
M6x12 (4 pcs)
1
