- Page 1 Smart Thermostat Quick Start Guide...
-
Page 2: Welcome To Connected Comfort
Welcome to Connected Comfort Thank you for purchasing the EcoNet Smart Thermostat. ® This easy-to-use programmable thermostat works with your Ruud HVAC systems and water heaters, ® providing on-screen information when you’re home and complete control when you’re away. It’s smart enough to alert you when an issue is detected, yet easy to use with a simple touchscreen interface. - Page 3 WiFi broadband internet connection required. Download the EcoNet App from the App Store or Google Play to set up your EcoNet Smart Thermostat. Receipt of notifications depend on home WiFi set up. When used with Amazon Echo or Echo Dot. Amazon, Alexa and all related logos are trademarks of Amazon.com, Inc.
-
Page 4: Home Screen Overview

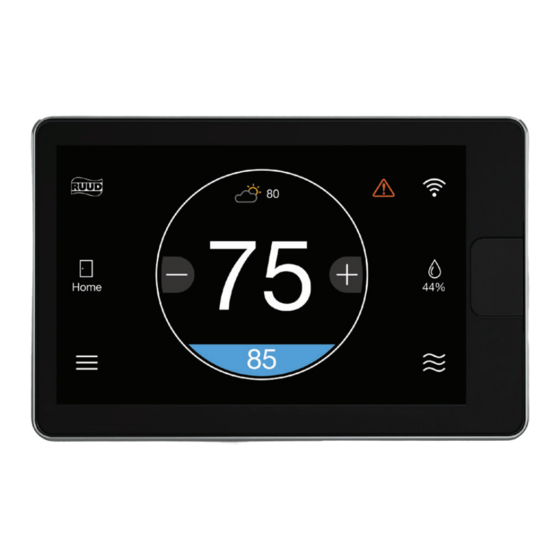

Introduction to your EcoNet Smart Thermostat Home Screen Overview Weather Alert Brand Logo WiFi Signal Messaging Bar Humidity One-Touch Away Motion Sensor Indoor Temperature Temperature Adjustment Menu Options System Mode System Set Point... -
Page 5: Indoor Temperature
What This Means to Me Weather Indoor Temperature WiFi Displays the current outdoor Shows the current temperature Shows current WiFi signal strength; temperature; touch to see inside your home touch to get connected weather forecast Menu Options Humidity Brand Logo Navigates to the Menu where Displays the current relative humidity Touch to input your... - Page 6 Icons to Become Familiar With Menu Home & Away Home Away Schedule Settings Status Service Schedule Service Settings Status Water Home Away Heater System Operation Alerts Auto Cool Heat E Heat Auto Cooling Heating Emergency Fan Only Power Off Alert Heat WiFi Signal Connected...
- Page 7 Partly Cloudy/ Snowing Freezing Rain Cloudy Windy Partly Sunny Smoke Frost Light Rain Weather Partly Cloudy/ Cloudy Wind # 0 Partly Sunny # 1 Sunny Windy Raining Thunderstorm Raining Thunderstorm Snowing Partly Sunny Additional Light Rain Smoke Smoke Frost Clear Cloudy Cloudy Freezing...
-
Page 8: Control From Anywhere
Control From Anywhere Getting Started Is Easy Have your new SCAN EcoNet Smart for app Thermostat installed Download the EcoNet app and create your account Touch the WiFi icon on your thermostat Follow the steps on your thermostat and app to complete setup What to expect once you are connected Works with Real-time notifications... -
Page 9: Before Installation Begins
Before Installation Begins Failure to read and follow all instructions carefully could cause personal injury and/or property damage. NOTE: All wiring must comply with national, state and local codes.. Mounting Recommendations • Install thermostat on an interior wall approximately 5 feet above the floor •... -
Page 10: Wiring Diagram
NOTE: Four wires are required. Wire units in a “daisy chain” and not in a “star” configuration. The order of the devices in the network is not specified except the EcoNet Smart Thermostat should be at one end of the network. -
Page 11: Turn Off Power
1. Turn off power 2. Place ferrite toroid 3. Secure the wall plate (if provided) around WARNING: Turn off thermostat wires Use the dry wall anchors and power to HVAC system screws provided. and nest in drywall at circuit breaker Interior view of wall Tip: Ensure the back plate is straight by centering the bubble... -
Page 12: Turn Power On
Power system back on and let the EcoNet Smart Thermostat auto- Note the wire color used for each configure your equipment. terminal; it’s good practice to use the same wire color on identical termination points on the indoor and outdoor units. - Page 13 FCC Compliance Statement Compliance Notice – This equipment has been tested and found to comply with the limits for a Class B digital device, et the pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
-
Page 14: Rf Exposure Information
1. This device may not cause interference. 2. This device must accept any interference, including interference that may cause undesired operation of the device. This Class B digital device complies with Canadian ICES-003. © 2022 Rheem Manufacturing Company. Ruud trademarks owned by Rheem Manufacturing Company. - Page 15 inches...
Need help?
Do you have a question about the EcoNet Smart Thermostat and is the answer not in the manual?
Questions and answers
What does humidity setting "over-cooling amount" mean and why is my humidity at 68% indoors when my dehumidify set point is at 50%
@Janine Palombo I have the same issue. Also, if the dehumidifier is on then the system will never go to a high level and always remain running on low cool but I have my humidity set to 40% and it’s at 49% right now and not going down whatsoever. Only when the A/C kicks on but it never takes it to the level I have it set at. Did you figure anything out?

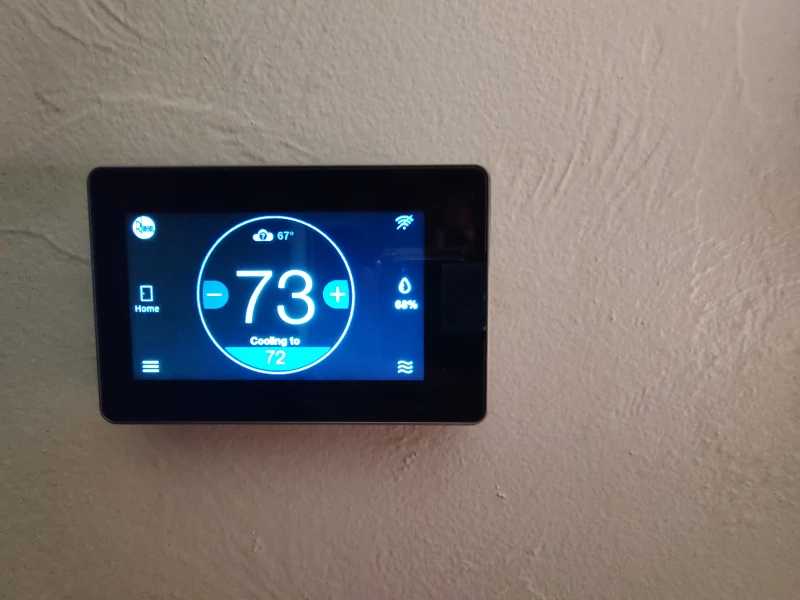

Why when I test it against two other hydrogemeter in my house right next to It, the thermostat is 3 degrees lower than the actual temp in my house and the humidity is also off by 3%. This explains why it’s so freakin hot in my house when the temp goes up. How do I recalibrate this and fix it??
When I set temperature ,say at 72degrees AC turns on until it reaches 72 . It then shuts off but when temperature rises it doesn't come back on and it seems to reset itself to a higher 77degrees. What am I doing wrong?
The Ruud Smart Thermostat may reset to a higher temperature of 77 degrees instead of maintaining the set 72 degrees due to a few possible reasons based on the context:
1. Programmable Schedule: The thermostat has a programmed schedule that may override the manual setting. If the schedule is set to 77 degrees at a certain time, it can reset to that temperature automatically.
2. One-Touch Energy Savings Mode: If activated, this mode may override the set temperature to save energy, potentially resetting it to 77 degrees.
3. WiFi and Remote Access: The thermostat has built-in WiFi, allowing remote changes. A user or automation may have changed the temperature remotely.
To fix this, review and adjust the programmed schedule and check if energy-saving mode is enabled. Also confirm no remote changes are being made via the app or connected devices.
This answer is automatically generated
hoe to change from furnace to cool
To change the Ruud Smart Thermostat from furnace (heating) to cool mode:
1. Tap the system mode icon on the screen.
2. Select "Cool" mode.
3. Adjust the cooling set point by tapping the temperature on the right (it will turn blue).
4. Use the plus or minus buttons to set the desired cooling temperature.
The system will activate cooling when the current temperature rises above the set point.
This answer is automatically generated
What are the steps to raise the humidity level?
To raise the humidity level on a Ruud Smart Thermostat:
1. Go to Menu > Settings > Humidity > Humidification.
2. Enable Humidification.
3. Set the Humidification Set Point to your desired indoor relative humidity (between 15% and 45%).
4. Select the modes (Heating, Cooling, or Continuous Fan) during which humidification should occur.
Note: You cannot set humidity above the dehumidification set point.
This answer is automatically generated
Is the filter alert based on length of time or dirt sensor
ALARM GOING OFF- AO93F INTERNAL FAULT DETECTED-WHAT DOES THIS MEAN product RUUD ECONET SMART THERMOSTAT
