Summary of Contents for PlayAlive RunningLight Park

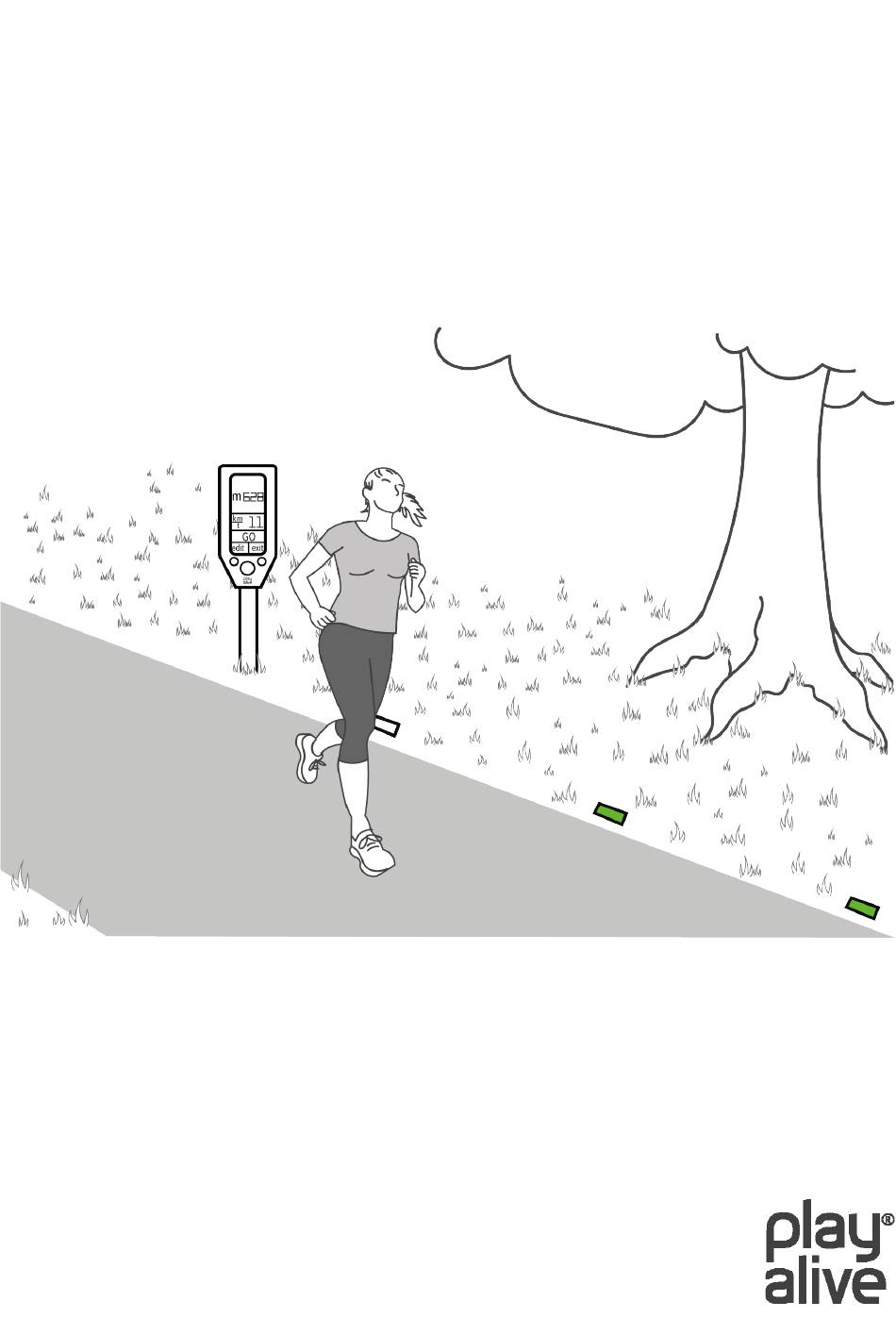

- Page 1 Installation manual RunningLight Park...
- Page 2 4.1 Installing LED houses Turning the LED Modules correctly 5. Start UP 5.1 Turn the system on 5.2 Start an activity and test the setup 6. Appendix 6.1 General introduction to PlayAlives Technology Platform 6.2 Conduit pipes and PlayAlive technology...
- Page 3 Component overview Steel/aluminium elements & pre-installed electronics *X Light house *X Top frame *X M4x12mm A2 Screw 1x Display Unit 1x Pigtail cable (for connecting dipsplay with 240V ) *x Devicenet Cable *x LED Unit 1x 3.5 M Devicenet Cabel *The amout x will depend on individual project requirements.
- Page 4 Site of construction Overview Display unit, here you can chose your The lights go all along the trail as seen, distance and speed. Hold sensor to in this image. start and the light wil move acording to your settings Installing Display Unit The display unit must be installed in the ground as shown in the example to the right.
- Page 5 Site of construction Connecting the display unit An electrician brings the standard installation cable to the PlayAlive ste- Step 1 – el post where the display is mounted. The following are used: 3 x 1.5 mm2 pvikj installation cable. This cable must be connected with the supplied PlayAlive ”Pigtail”...
- Page 6 LED units Installing LED houses Please follow the instructions shown below. The width of the hole for the LED house should be approx. 400mm. This equates roughly to 0.014m^3 concrete When connecting the cables please adhere strictly to the figure shown below to make Top Frame sure the data and power are transferred cor- rectly.
- Page 7 Turning the LED Modules correctly It is of utmost importance that when installing the LED modu- les that they are turned correctly. This is done by first making sure the LEDs are pointing the correct way. the LEDs are angled to point more towards the running path to ensure the runner has an easier time seeing the light.
- Page 8 In cases where this is not possible, it is recommended to use a pulling string. Please be aware that the PlayAlive cables are not designed to be pulled in the connectors. When pulling the cables please make sure that you pull the cable and not the connector.
