SeeEyes SC-MFM07HD User Manual

Hybrid multi format portable test monitor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
7 ㄱ 3ew2321

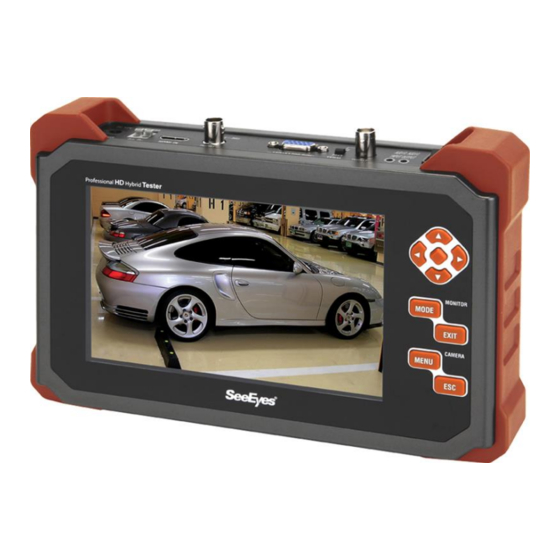

HYBRID Multi Format Portable Test Monitor
Features
High Resolution 7inch LCD Monitor
EX-SDI1.0/2.0 TDM Input, HD-SDI Input (~3G) HDMI Input (~Full HD)
Support HD Analog Up to 4M Pixel (AHD, TVI, CVI)
Ultra-low power LED Backlight Monitor
Support HD Analog COAX (UP THE COAX) Remote Control (AHD, TVI, CVI)
Support EX/1.5G/3G-SDI Coax Remote Control
Support EX-SDI, HD-SDI VP Camera
Support Focus Meter & Video Level Meter
SC-MFM07HD
Release Version 1.2
User's Guide
SC-MFM07HD

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SC-MFM07HD and is the answer not in the manual?

Questions and answers

Related Manuals for SeeEyes SC-MFM07HD

Summary of Contents for SeeEyes SC-MFM07HD

  • Page 1 Release Version 1.2 7 ㄱ 3ew2321 HYBRID Multi Format Portable Test Monitor User's Guide SC-MFM07HD Features High Resolution 7inch LCD Monitor EX-SDI1.0/2.0 TDM Input, HD-SDI Input (~3G) HDMI Input (~Full HD) Support HD Analog Up to 4M Pixel (AHD, TVI, CVI)
  • Page 2 Release Version 1.2 Precaution and Safety Guidelines Please always handle the unit with care. Otherwise, the LCD display panel can be damaged when ⚫ it gets any physical shock and/or you drop it to the ground. Please note that we may charge for the replacement of the display panel even the unit is under warranty, when it is broken due to any physical shock or user’s misuse.
  • Page 3 1-1. Overview SC-MFM07HD is a multi-format test monitor (All in One) which supports Analog signals (AHD, TVI, CVI, etc.) as well as digital signals (HD-SDI, EX-SDI, etc.) as well as can be used in various purposes such as checking video signals and cabling status with built-in video signal level meter, adjusting camera viewing angles and focus, supplying power to cameras, implementing PTZ control and UCC function (Up The Coax) for camera OSD setting, and so on.
  • Page 4 Release Version 1.2 • EX-SDI CRC Error Count function (Previous error values indicated even after the error reset) • HD-SDI CRC Error Count function (Cleared error & increased error indicated) • Other Features - Power supply to camera (DC 12V / 500mA) (Exclusive cable provided) ※...
  • Page 5 • HDMI Video Input (1920x1080P 60) Possible to check the video with HDMI output of DVR (FULL HD: ~1920 X 1080P 60) 2. Components Power Model Leather Bag Exclusive Power User’s Harness Cable & Neck Strap Charger Input Manual (SC-MFM07HD) Cable (1m) Cable...
  • Page 6 Release Version 1.2 3. Product Parts and Peripheral Devices Connection 3-1. Each Part Name and Function 3-1-1. Interface ⑥ ⑦ ⑧ ⑨ ⑩ ① ② ③ ④ ⑤ MARKING DESCRIPTION Charge the built-in Li-polymer battery with the provided exclusive ● charger ①...
  • Page 7 Release Version 1.2 3-1-2. Button for Each Function ① EX-SDI, HD-SDI Level Meter • SDI. LEVEL: To indicate video status for EX-SDI, HD-SDI Input signal (~100%) ※ The percentage represents the amplitude / 100% = 800mV) • Focus Meter : To indicate focus value for EX/HD/TDM Input signal (real focus value/ideal focus value) ②...

  • Page 8: Connection Diagram

    Release Version 1.2 ③ Video Status • Input Mode: 3G-SDI, HD-SDI, EX1.0/2.0-SDI, TDM, HDMI, AHD, CVI, TVI, VGA, CVBS • Display Mode: 4:3, Full(16:10), 16:9, Zoom1, Zoom2 • Input resolutions: 1920x1080p60, NTSC, PAL ④ PoC (Power over Coax) Function Status (Available in HD-SDI, EX-SDI Mode Only) •...

  • Page 9: Hdmi Input

    Release Version 1.2 3-2-1. HD-SDI /EX-SDI Input • Connect to HD/ EX-SDI camera (HD-SDI: 1.485Gbps~2.970Gbps, EX-SDI1.0: 270Mbps, EX-SDI2.0: 135Mbps). 3-2-2. HDMI Input • Connect to HD DVR, HD splitter or other devices which support HDMI output. (Input Resolutions: ~1080P 60Hz) 3-2-3.
  • Page 10 As above image, EX-SDI TDM is a multiple transmission system by 1 coax cable for HD/EX-SDI camera signal and should set each channel’s ID for transmission. SC-MFM07HD PREMIUM version is a test monitor which is checking (inspection) overall parts of TDM transmission system as above image and it’s able to select and check each input signal transmitting by TDM devices, and it’s also possible to control each connected camera...

  • Page 11: Menu Settings

    Release Version 1.2 4. Menu Settings 4-1. MENU Mode 4-1-1. SELECT MENU (Based on SDI MODE) - Once you press the MENU button, the main menu will be displayed as shown below. - Press the direction buttons (Up: ▲ / Down: ▼/ Right: ▶/ Left: ◀) to move the submenu and the menu mode will automatically become off if you do not press any buttons for a while.

  • Page 12: Angle View

    Release Version 1.2 4-1-1-2. ANGLE VIEW Indication Lines: To adjust the viewing angles at a specific area. • When selecting the ANGLE MODE, indication lines with shape of square are shown on the screen. • Once the SET KEY is pressed, the left line changes to a dotted line. Press the left/right keys (◀▶) to set the standard position of the left line.
  • Page 13 Release Version 1.2 4-1-1-3. RS-485 & COAX (PTZ / OSD Control) • Mode: - RS-485 TX: To control PTZ & camera OSD menu - RS-485 RX: To receive PTZ control data (Hex value) - Analyze: To analyze the received protocols and display the command and Hex value - Coaxial: To control PTZ &...
  • Page 14 Release Version 1.2 ※ Built-in Protocols: Other protocols are available upon request in case that the camera manufacturers provide us with their protocols in advance. Brand Monitor OSD Product Model DSC-300S/270S/230S Series (High Speed PTZ Dome Camera) DONGYANG UNITECH DOH-240S Series (Speed PTZ Dome Camera) D-MAX (OSD) DPC-200 (Mini PTZ Dome camera)
  • Page 15 ※ For some cameras, ENTER KEY needs to be pressed for a while to enter the OSD Menu. ※ Cautions when using PELCO-D PROTOCOLS • SC-MFM07HD has two different PELCO-D PROTOCOLS built-in, which are PELCO-D PROTOCOL and PELCO-CNB. In case of PELCO-D PROTOCOL, it is possible to enter the camera OSD menu by Go To PRESET Command when starting the Menu key.
  • Page 16 Release Version 1.2 4-1-1-3-2. RS-485 RX • To show the current status of settings at the top of the screen. • To check the connection status of RS-485 lines indicated by HEX value. • To display the received data via RS-485 port up to 10 lines in BYTE (16 byte). •...
  • Page 17 CVBS PELCO-C All models supporting COAX communication ※ NOTE: SC-MFM07HD is compatible with all models in our product range. In addition, SC-MFM07HD can carry out COAX Remote Control function without any settings due to the automatic NTSC/PAL recognition. 4-1-1-3-4. Analyze •...

  • Page 18: Level Meter

    • To turn on/off SDI Level Meter function. • To turn on/off SDI Focus Meter function. 4-1-1-5. SYSTEM SET • To set the SC-MFM07HD System. • Language Settings: Korean / English / Russian (Option: Japanese) • Back Light: To adjust the brightness of the LED Monitor •...

  • Page 19: Specifications

    Release Version 1.2 5. Specifications MODEL SC-MFM07HD DISPLAY RESOLUTION 1280 X (RGB) X 800 SIZE 6.95 inch(diagonal) PIXEL PITCH 0.117mm(H) X 0.177mm(V) BRIGHTNESS (cd) Min.:340, Nor.:400 Contrast Ratio Min.:600, Nor.:800 Horizontal 89° Viewing Angle Vertical 89° RESPONSE (ms) HDMI ~1080p 60 HD-SDI 135/270Mbps 1.485Gbps~2.970Gbps...

  • Page 20: Warranty Certificate

    Release Version 1.2 6. Warranty Certificate This product has passed thorough quality control and test, and if this gets broken during normal use, we provide the two-year warranty service. Model No. Serial No. Distributor Date you purchased Place you purchased Warranty Period Two(2) years from the date of purchase Name...
  • Page 21 Release Version 1.2...
  • Page 22 Release Version 1.2...
  • Page 23 Release Version 1.2...
  • Page 24 Release Version 1.2 is new corporate name of Samsung CCTV Service Co., Ltd.
