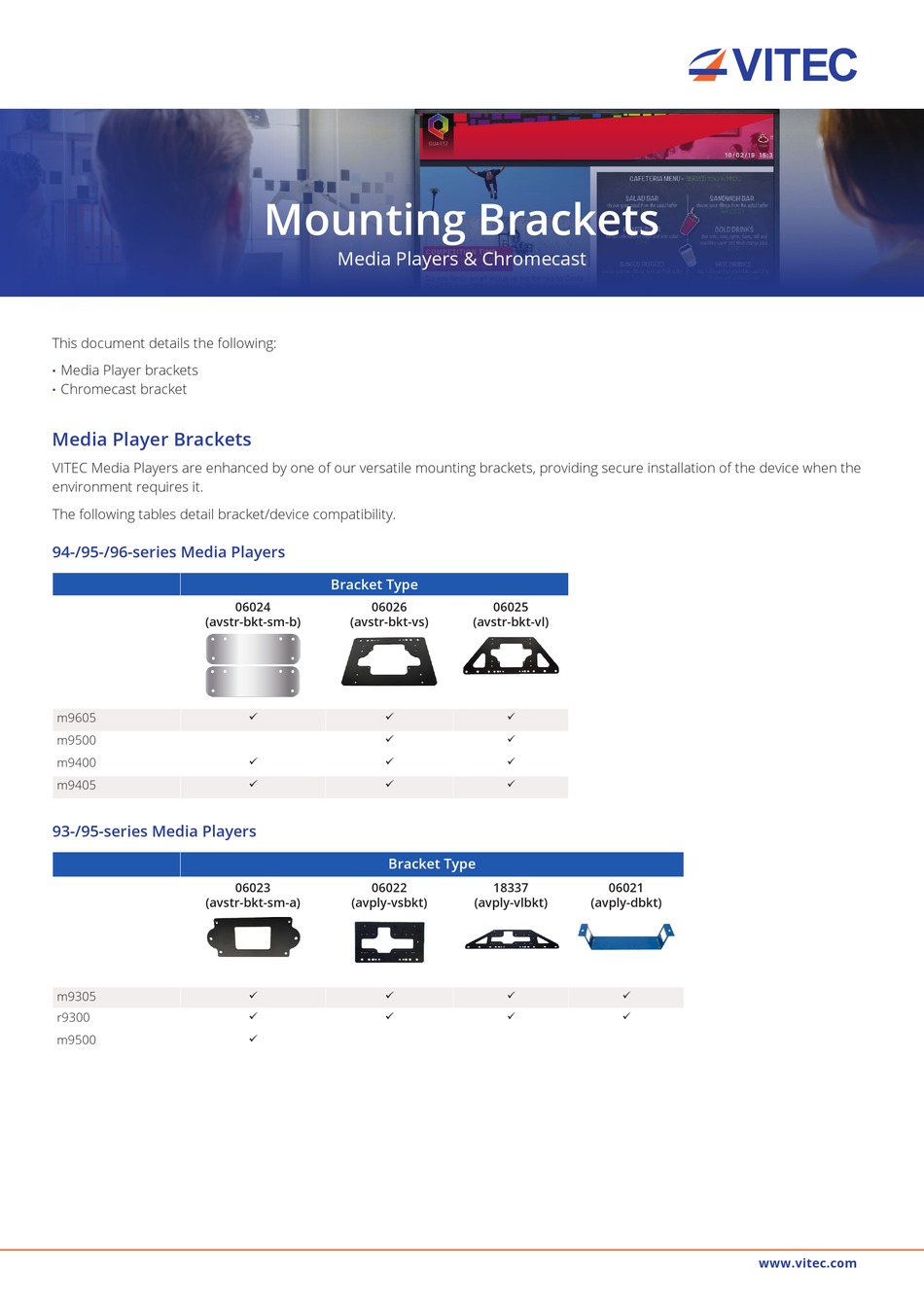

Datasheet | m8105, m8115, m8365
This document details the following:
Media Player brackets
•
Chromecast bracket
•
Media Player Brackets
VITEC Media Players are enhanced by one of our versatile mounting brackets, providing secure installation of the device when the
environment requires it.
The following tables detail bracket/device compatibility.
94-/95-/96-series Media Players
(avstr-bkt-sm-b)
m9605
m9500
m9400
m9405
93-/95-series Media Players
(avstr-bkt-sm-a)
m9305
r9300
m9500
Mounting Brackets
Media Players & Chromecast
Bracket Type
06024
06026
(avstr-bkt-vs)
ü
ü
ü
ü
ü
ü
ü
Bracket Type
06023
06022
(avply-vsbkt)
ü
ü
ü
ü
ü
06025
(avstr-bkt-vl)
ü
ü
ü
ü
18337
06021
(avply-vlbkt)
(avply-dbkt)
ü
ü
ü
ü
www.vitec.com
Advertisement
Table of Contents
Summary of Contents for Vitec Multimedia 06024
- Page 1 VITEC Media Players are enhanced by one of our versatile mounting brackets, providing secure installation of the device when the environment requires it. The following tables detail bracket/device compatibility. 94-/95-/96-series Media Players Bracket Type 06024 06026 06025 (avstr-bkt-sm-b) (avstr-bkt-vs) (avstr-bkt-vl) m9605 ü...
- Page 2 94-series/95-series/96-series Brackets Simple Wall Bracket (part number 06024, avstr-bkt-sm-b) Allows 94-series and 96-series Media Players to be mounted on a wall. • Can be used with m9400, m9405 and m9605 devices. • Two brackets are supplied and required per unit.
- Page 3 Behind Screen Mount - Large Plate (part number 06025, avstr-bkt-vl) Securely attaches 94-series/95-series/96-series Media Players to the back of any standard plasma/LCD TV (for screens with VESA • mount hole spacings up to 400mm). Attaches to standard fixing points. Can be used with m9400, m9405, m9500 and m9605 devices. •...
- Page 4 93-/95-series Brackets Simple Wall Bracket (part number 06023, avstr-bkt-sm-a) Allows an 93-/95-series Media Player to be mounted on a wall. • Can be used with r9300, m9305 and m9500 devices. • Supplied with two M2.5 x 4mm screws. • All dimensions in millimetres. www.vitec.com...
- Page 5 93-series Behind Screen Mount - Small Plate (part number 06022, avply-vsbkt) Securely attaches 93-series Media Players to the back of any standard plasma/LCD TV (for screens with VESA mount hole • spacings up to 200mm). Can be used with r9300 and m9305 devices. •...
- Page 6 93-series Behind Screen Mount - Large Plate (part number 18337, avply-vlbkt) Securely attaches 93-series Media Players to the back of any standard/plasma/LCD TV (for screens with VESA mount hole • spacings up to 400mm). Can be used with r9300 and m9305 Media Players. •...
- Page 7 93-series Under Desk Mounting Bracket (part number 06021, avply-dbkt) Allows 93-series Media Players to be attached under a desk, shelf or on a wall. • Can be used with r9300 and m9305 Media Players. • Supplied with four M2.5 x 4mm screws. •...
- Page 8 06023 - avstr-bkt-sm-a - Bracket - simple wall mounting - 93xx and 95xx only • 06024 - avstr-bkt-sm-b - Bracket - simple wall mounting - 94xx only • 06025 - avstr-bkt-vl - Bracket - large display rear mounting - 94xx, 95xx, 96xx only •...
