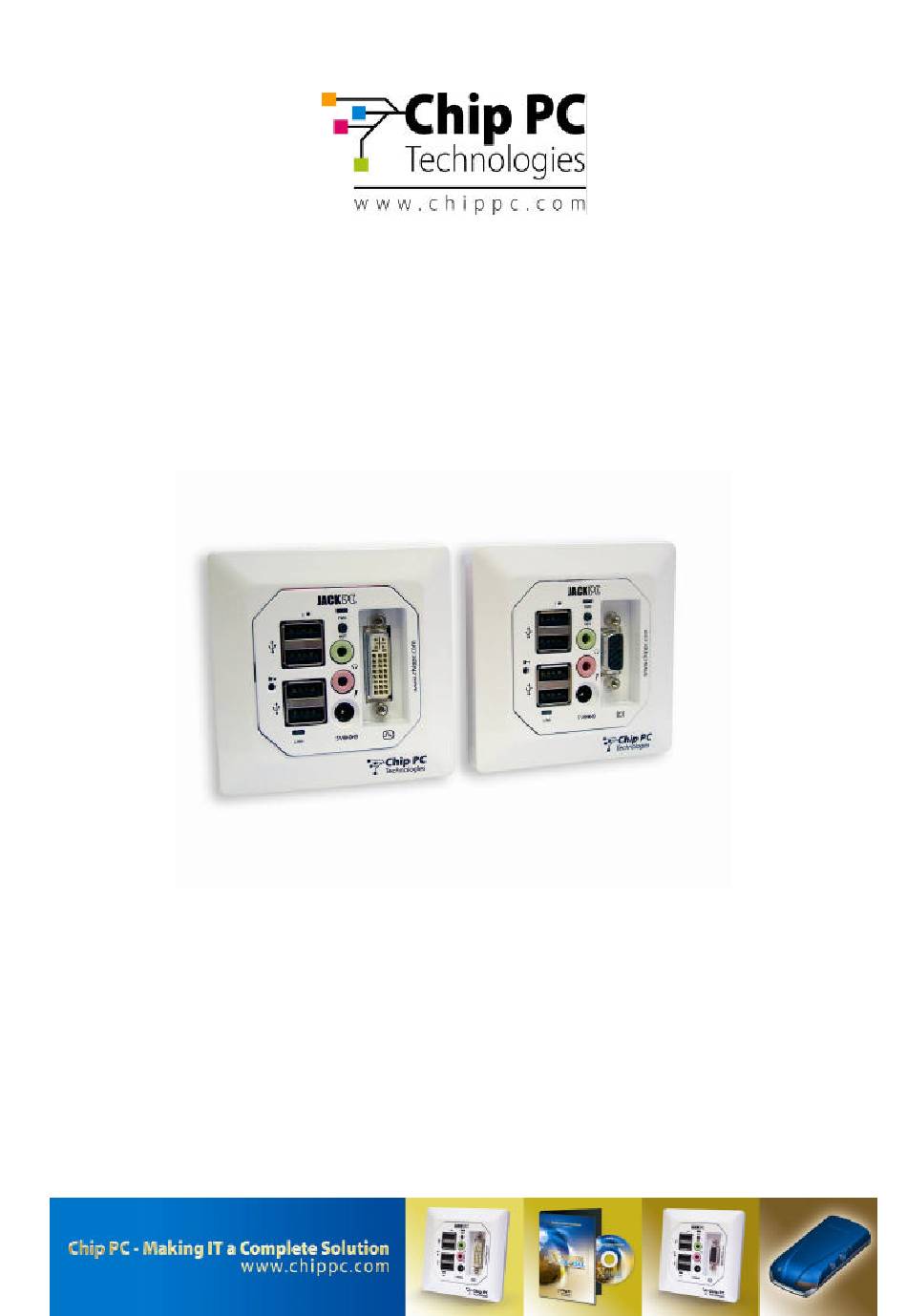

- Page 1 Jack PC EFI Series Hardware User Manual Revision C 06/06/2006 *CDC01927*...
- Page 2 Because Chip PC must respond to changing market conditions, it should not be interpreted to be a commitment on the part of Chip PC, and Chip PC cannot guarantee the accuracy of any information presented after the date of publication.
-
Page 3: Table Of Contents
Jack-PC Requirements Compliance ................. 44 FCC Statements........................ 44 IEC/EN Notice ........................44 Modifications ........................44 Cables ..........................44 Peripheral Devices ......................44 CHIP PC LIMITED HARDWARE WARRANTY ......................49 CHIP PC LIMITED SOFTWARE WARRANTY ......................52 CHIP PC SOFTWARE LICENSE AGREEMENT .....................54 MICROSOFT END USER LICENSE AGREEMENT (EULA) ...................56... -
Page 4: Safety Notices
Any peripheral device connect to the Jack-PC, must be connected to properly wired receptacles. Caution: when using an external power supply (5VDC AC/DC adapter) use only Chip PC- supplied, UL-listed direct plug in AC/DC adapter, (Chip PC part number: CPN1491 or CPN1503 or CPN1504). -
Page 5: Safety Instructions
• When using an external power supply (5VDC AC/DC adapter) use only Chip PC- supplied, UL-listed direct plug in AC/DC adapter (Chip PC part number: CPN1491 or CPN1503 or CPN1504). Using a different power supply might expose the user to various risks, damage the device and will void the product's warranty! •... -
Page 6: Introduction
Jack PC Hardware User Manual - Training Department Revision C 0506 INTRODUCTION The Jack PC is a versatile, feature-rich thin client computer fully integrated into an existing LAN Jack, it is the most secure, modular, and manageable Thin-Client solution offering connection to any type of popular Terminal, Citrix or Legacy servers. - Page 7 Jack PC Hardware User Manual - Training Department Revision C 0506 The Jack PC can be fitted into wall, floor or furniture housing according to site specific needs. Installation is easy and quick and enables an organization-wide usage of LAN Jacks for various uses offered by the Flex-Jack system (see www.chippc.com for more details about additional...
-
Page 8: Power Options
Another option is to use Jack PC devices with external DC power jack enabling standard wall mounted power supply connection. Jack PC devices should only be used with Chip PC- supplied power supplies (Chip PC part number: CPN1491 or CPN1503 or CPN1504). -
Page 9: Intended Audience
More Information Questions about the Jack PC should be directed to Chip PC support; to an authorized Chip PC service provider; or the Technical Support Department of the distributor from which you purchased your Jack PC. Please have all pertinent information available when requesting help, including any error messages that may have appeared either on the Jack PC or on the server. -
Page 10: Hardware Setup
5. Extraction Tool to remove device after it was installed 6. RJ-45 Termination Connector Block (optional) (Note: This part must be ordered separately in case you want to install the Jack PC in to an existing LAN jack. Chip PC part number: CPN02164 or CPN02166 – see accessories list) 7. -

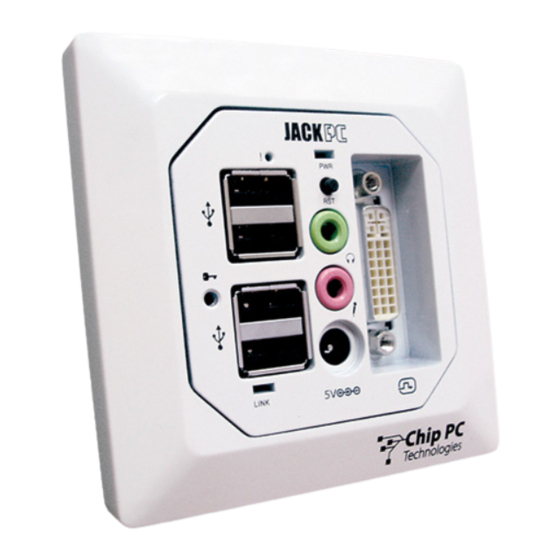

Page 11: Identifying The Parts Of The Jack-Pc
* In case a USB-to-PS/2 converter or USB- to single/dual Serial ports adapter (to support serial printers) is needed, purchase it only from Chip PC to insure compatibility. (See Accessories list) Extraction Point – insert Extraction tool (latch) and turn it clockwise to remove installed device “Reset-to-Factory-Default”... -
Page 12: Existing Lan Installation
– it is recommended to verify that the LAN jack receives power with this tester) - this is an optional accessory that you need to purchase separately (Chip PC part number: CPN02239 – see accessories list). •... - Page 13 Jack PC Hardware User Manual - Training Department Version 0506 Insert the RJ-45 Termination Connector Block into the Flex-Jack Housing bottom part until you hear a clicking sound indicating it has locked properly into place. Place the Flex-Jack Housing inside the Jack hole.
- Page 14 3.6. Note: In case a USB-to-PS/2 converter or USB-to single/dual Serial ports adapter (to support serial printers) is needed (Chip PC part number: CPN01487). You can connect the Jack PC to a Wireless network using the Wireless LAN USB dongle 802.11g (Chip PC part number: CPN02302).
- Page 15 In order to get this functionality, connect a Y-cable to the DVI monitor port. Purchase the Y-cable only from Chip PC to assure compatibility. (Chip PC part number: CPN02176 - see accessories list). In order to connect only one VGA monitor, you will need to use Chip PC DVI to VGA adapter.
-
Page 16: New Installation
Jack PC Hardware User Manual - Training Department Version 0506 New Installation Tools you will need for New Installation: • Drill with 65 mm (2.6 Inch) Hole Saw • Half-round File to trim wall cutout • Cutter to remove LAN cable insulation •... - Page 17 Down Tool by using the appropriate color scheme, according to TIA568 version A or B as shown in picture. Note: use only the tool supplied by Chip PC – (see accessories list for more details) Follow the instruction in paragraph 6 – Wiring Configurations for additional information.
- Page 18 Jack PC Hardware User Manual - Training Department Version 0506 Close the IDC Termination Connector Block and insert it into the Housing bottom part until you hear a clicking sound indicating it has locked properly into place. In case the Connector Block in not locked in to position, you can slightly bend the metal tab to create more pressure on the Connector Block.
-
Page 19: Accessories List
3.6. Note: In case a USB-to-PS/2 converter or USB-to single/dual Serial ports adapter (to support serial printers) is needed (Chip PC part number: CPN01487). You can connect the Jack PC to a Wireless network using the Wireless LAN USB dongle 802.11g (Chip PC part number: CPN02302). - Page 20 In order to get this functionality, connect a Y-cable to the DVI monitor port. Purchase the Y-cable only from Chip PC to assure compatibility. (Chip PC part number: CPN02176 - see accessories list). In order to connect only one VGA monitor, you will need to use Chip PC DVI to VGA adapter.
