Summary of Contents for PAIFANG HQD-314

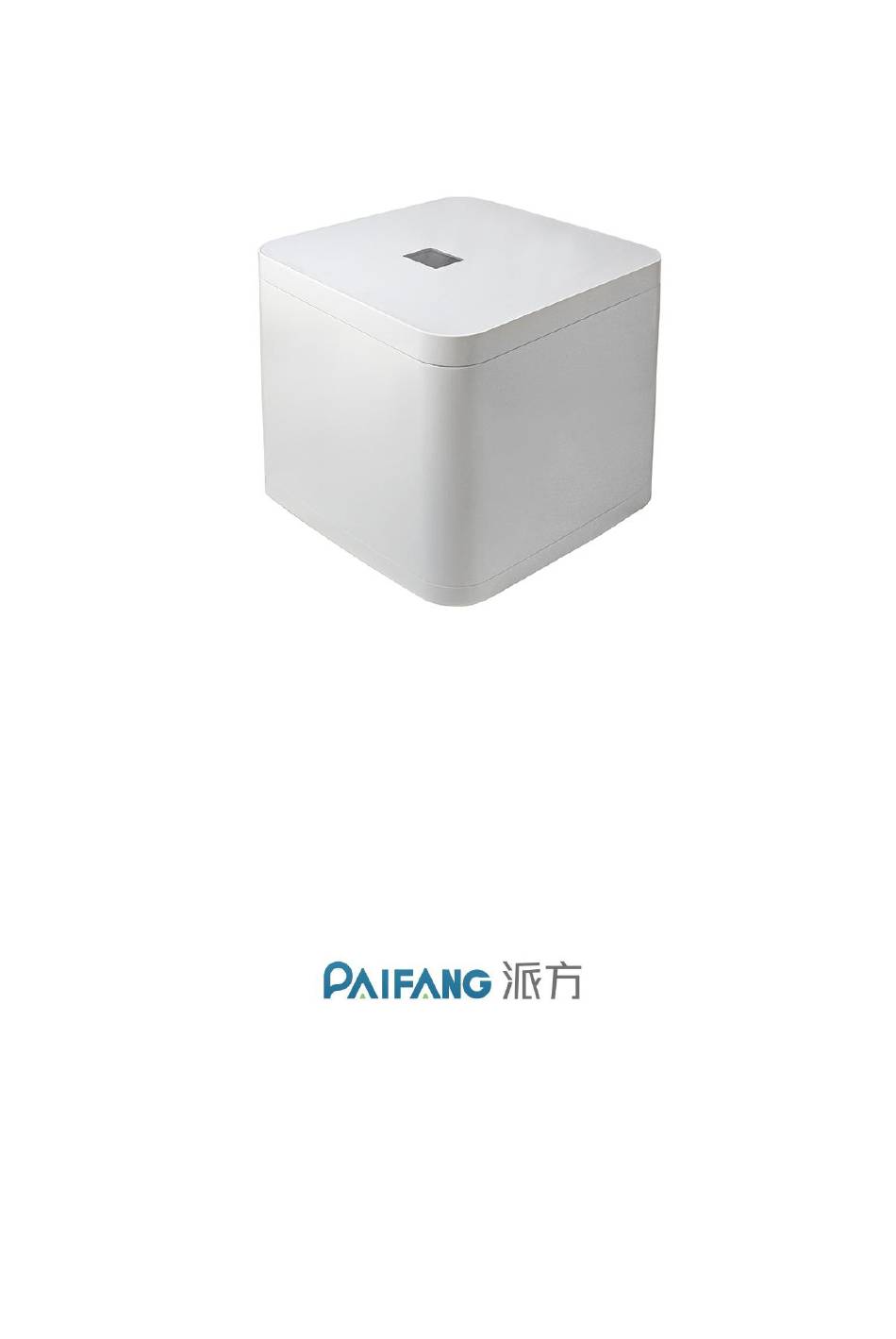

- Page 1 kitchen waste disposer Product manuals The version number：V1.0.0...
-
Page 2: For Users
This manual applies to the following models: Name: Kitchen waste disposer Model: HQD-314 ●Please read this product manual carefully before using the product and keep it safe for easy reference at any time. If the equipment is damaged due to failure to follow the requirements used in this manual, the warranty will not be covered. - Page 3 Directory One ：Product overview ......................... 4 Two ：Product specifications ......................4 Three ： Operating instructions ....................5 3.1 Button action...........................5 3.1 App usage instructions ....................... 9 Four ：Precautions .......................... 10 Five ：Questions and answers ....................11...
- Page 4 UV lamp sterilization. The high-grade board contains microbial degradation, through the "microorganism" to decompose the kitchen waste and form organic fertilizer, reducing the amount by more than 90%. Two 、Product specifications Product model HQD-314 HQD-314-Plus HQD-314-PRO Device baseThis Information...
-
Page 5: Button Action
Opening method Touch the button Action tips buzzer buzzer buzzer Device status is displayed Light Whether UV sterilization is Support (Auto & Support (auto-on) Support (auto-on) supported Manual) 220v &110V 220v &110V Power supply mode 220v &110V Barrel capacity 3.3L 3.3L 3.3L Three 、Operating instructions... - Page 6 indicator, the UV sterilization/strain decomposition indicator, and the child lock indicator. The dot is an alarm indicator, and the alarm light is lit in the event of a stall or abnormal high temperature. Grinding and drying work button: In the state of no open child lock, after a long press for 3 seconds to open, a "drip" sound is emitted, and the device enters the grinding and drying working mode.
- Page 7 outlet temperature is constant at 60 degrees and the heating plate is 70 degrees to end the work. UV sterilization/culture mode: In the state of no open child lock, after a long press for 3 seconds to open, a "drip" sound is emitted, and the low-end version of the device enters the UV sterilization mode, and the high-end version enters the strain mode.
-
Page 8: Sleep Mode
sleep mode Species decomposition mode: 1、A "drip" sound is emitted and the machine enters UV mode. The sterilization indicator light is on, the other indicator lights are off, the UV light cycle starts and stops (working for 35 seconds -" stop for 35 seconds -" working for 35 seconds). - Page 9 slowly (35 seconds positive -" 30min stop -" 35 seconds reverse) metal blade about 2.5r/min cycle, while the fan follows the motor start and stop, the interval period is 30 minutes, the temperature in the barrel is controlled to 30 degrees. 3.1App usage instructions For the time being, only support Android system, after installing the APP , open Bluetooth and enter the APP .
- Page 10 4、The APP can monitor data and operate the equipment Four 、Precautions 1、Do not release hard objects or large bones, which may cause the stirring tip to break. 2、Be careful not to put too much water in the garbage. 3、During the working hours of the equipment, open the lid and do not touch the metal...
- Page 11 drum to avoid burns Five 、Questions and answers 1、How much power is consumed? A: The maximum power is 650W, and the single process consumes about 1.1 kWh of electricity. 2、How noisy is the operation? A: Less than 48 dB. 3、How long does it take to turn food waste into drying and grinding? A: It generally takes 4-6 hours, and the moisture is longer.
