Summary of Contents for E-MACHT KM3750

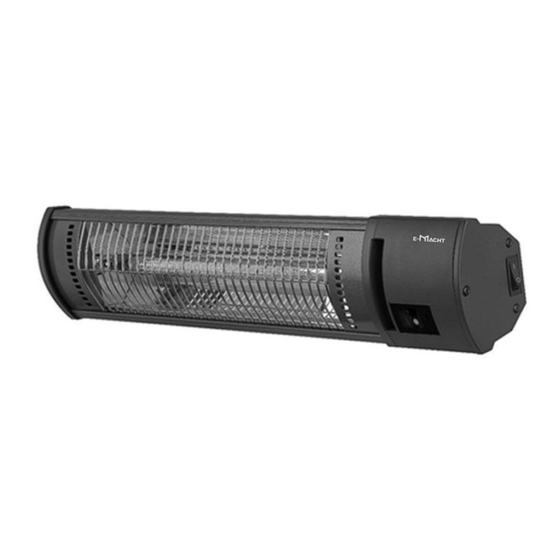

- Page 1 PATIO HEATER KM3750 (LGH-02)
-
Page 2: Important Safety Instructions
PLEASE SAVE THESE INSTRUCTIONS WARNING: READ THIS OWNER'S MANUAL CAREFULLY BEFORE USE. IMPORTANT SAFETY INSTRUCTIONS When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following: 1. - Page 3 5. Wall support 6. Indicator lights (LEDs) and reception point of the remote control 7. Button for manual operation 8. Main switch Technical details Type KM3750 (LGH-02) Voltage 120V~60Hz Settings 750W - 1500W Remote control Dimensions 72 x 12 x 12 cm...
-
Page 4: Installing The Heater
The kit supplied in the package is designed for the mounting on a solid wall. lf mounted onto other types of wall, you will need appropriate fixings (not supplied).Please make sure the wall is safe to mount. We highly recommend to have the heater installed by a qualified electrician or installer authorised by E-MACHT. - Page 5 Step1: Drill 4 holes to the wall according to the holes on Part A and tighten Part A to the wall using Part B. Step2: Fix Part H to the heater by using Part D, Part E and Part F. Use Part F to regulate the position level of the heater and Part D and Part E to tighten and secure.
- Page 6 PATIO HEATER FUNCTIONS Point the head of the terrace heater in the correct direction. Insert the plug into the socket (120V, 60Hz). 1, open the heater side switch, the indicator light is red, standby state 2, press the ON/OFF button, turn the red light to the green light, for low-grade heating 3, press the high power button, second green lights, for high-grade heating 4, press the low power button, turn the green light to one, switch to low-grade heating...
-
Page 7: Maintenanceand Storing
MAINTENANCEAND STORING CAUTION: Always be sure that the appliance is switched OFF before cleaning or attempting to store the item. Do not immerse heater in water or allow water to drip into the interior of the heater, as this could create an electric shock hazard.
