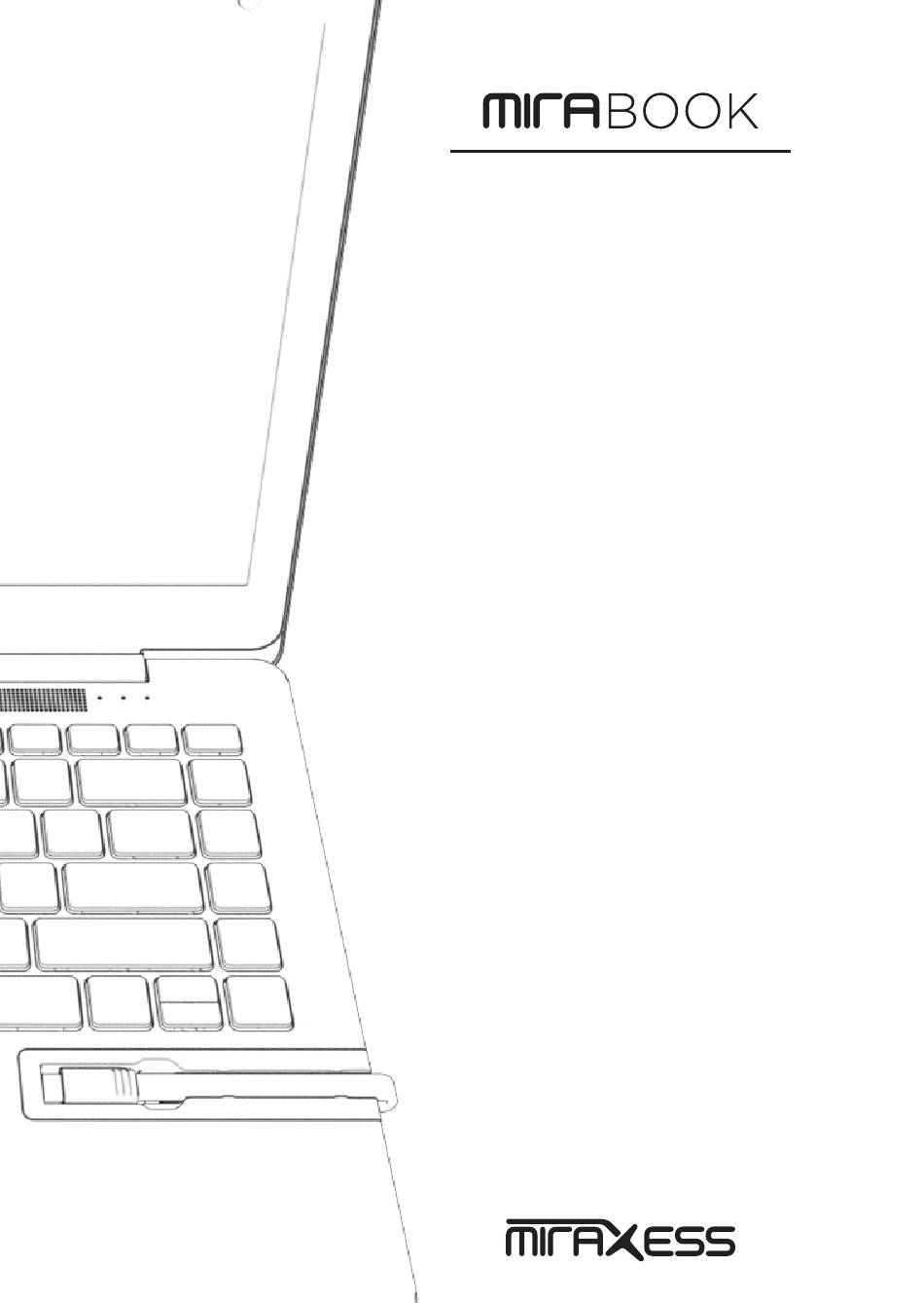

Page 1 USER MANUAL...
Page 2 WARNING: In case of damage or malfunction of the Mirabook, do not attempt to repair by your- self, contact the support team of Miraxess (sup- port@miraxess.com) or the support of your reseller.
Page 3: Table Of Contents
What’s in the box?..........4 External ports............5 Keyboard and notiﬁcations Icons....6 Positioning the Colour touch......7 Installation of the USB-C Cable.....8 Turning ON the Mirabook and plugging the Smartphone (or device)......10 Unplugging the Smartphone (or device) and turning OFF the Mirabook......11 Safety precautions..........12 Warranty and Support........14...
Page 4: What's In The Box
WHAT’S IN THE BOX 1 x Mirabook 1 x Color Touch 1 x USB-C to USB-C cable 1 x USB-C charger with cable USER MANUAL 1 x Mirabook User Manual...
Page 5: External Ports
1. USB-C Port for charging 2. USB-A for peripheral devices 3. Audio output Jack 4. Micro SD Reader 5. Miraxess «Slide» slot 6. USB-A for peripheral devices 7. HDMI out to extend the screen WARNING : do not insert anything but the o cial accessory «The Slide»...
Page 6: Keyboard And Notifications Icons
5. Screen brightness down 6. Screen brightness up 7. Battery Level 8. Smartphone/device charging on/o 9. HDMI out on/o 10. MiraKey, menu/all apps key 11. Right Click Key 12. Mirabook Charging on/o LED 13. Smartphone/Device charging on/o LED 14. Caps Lock on/o LED...
Page 7: Positioning The Colour Touch
COLOR TOUCH POSITIONING 1. Tilt the Color Touch and place it, head ﬁrst, as shown in the image above 2. Lay the rest of the Color Touch as shown in the image above 3. Push the Color Touch until you hear a click and feel it locked 4.
Page 8: Installation Of The Usb-C Cable
USB-C CABLE INSTALLATION 1. Turn the Mirabook to install the cable in its slot. 2. Align the cable on the rail adapted for it. 3. Push the cable until you feel or hear a «click».
Page 9 3. To lock the cable on the colour touch, fold it against the touch. 4. Hold it with the colour touch pins.
Page 10: Turning On The Mirabook And Plugging The Smartphone (Or Device)
HOW TO TURN ON/OFF THE MIRABOOK 1. Press the «ON/OFF» button for 1 second to turn «ON» the Mirabook. Connect your device 2. A message inviting to «connect your device» will appear. Take out the cable from the cable holder.
Page 11: Unplugging The Smartphone (Or Device) And Turning Off The Mirabook
3. Connect your device to the USB type C cable and the video display should start. 4. To turn «OFF» the Mirabook, press the «ON/OFF» button a few seconds then unplug your device.
Page 12: Safety Precautions
SAFETY & PRECAUTIONS The following precautions will increase the life of the Mirabook. Failure to follow these precautions may result in injury or damage. It is strongly recommended to use common sense. DO NOT place on uneven or unstable work surfaces.
Page 13 DO NOT try to open or dismount the Mirabook. You may su er injury or make the mirabook malfunction. Miraxess S.A.S is not responsible for any injuries or damages caused by the non-respected «Safety & Precautions» guidelines of this manual.
Page 14: Warranty And Support
WARRANTY AND SUPPORT Warranty Miraxess provides all customers 24 months warranty from the date of purchase. If the device fails due to manufacturer defects, please contact us by e-mail at support@miraxess.com to launch a warranty claim. We will instruct you how to return the product for repair/replacement.
Page 15: Certifications
CERTIFICATIONS Mirabook Main Certiﬁcations The Mirabook is completely removable for better recycling of components. Please respect and follow local guidelines for electronic waste and recycling. Find more information on our website www.miraxess.com...
Page 16 3. The provided charger is only intended to work with the Mirabook, DO NOT use it to charge other devices. 2. It is strongly recommended to use the Mirabook in a stable and even surface when one or several external connections are in use.
Page 17 The Mirabook Extension ﬁts into this natural motion that makes the smartphone the universal engine of our digital activities. This mobile convergence is the heart of Miraxess, and we will continue to innovate in this direction.»...
