BRTN Series All-in-one Firewood Processor

Owner's Manual

Supplier Name:

QINGDAO BORUITE MACHINERY CO., LTD.

Address:

NO. 47A Qutangxia Road, ShiNan District. Qingdao

Showroom:

www.brt-logsplitter.com

Table of Contents

Need help?

Do you have a question about the BRTN Series and is the answer not in the manual?

Questions and answers

Summary of Contents for BORUITE MACHINERY BRTN Series

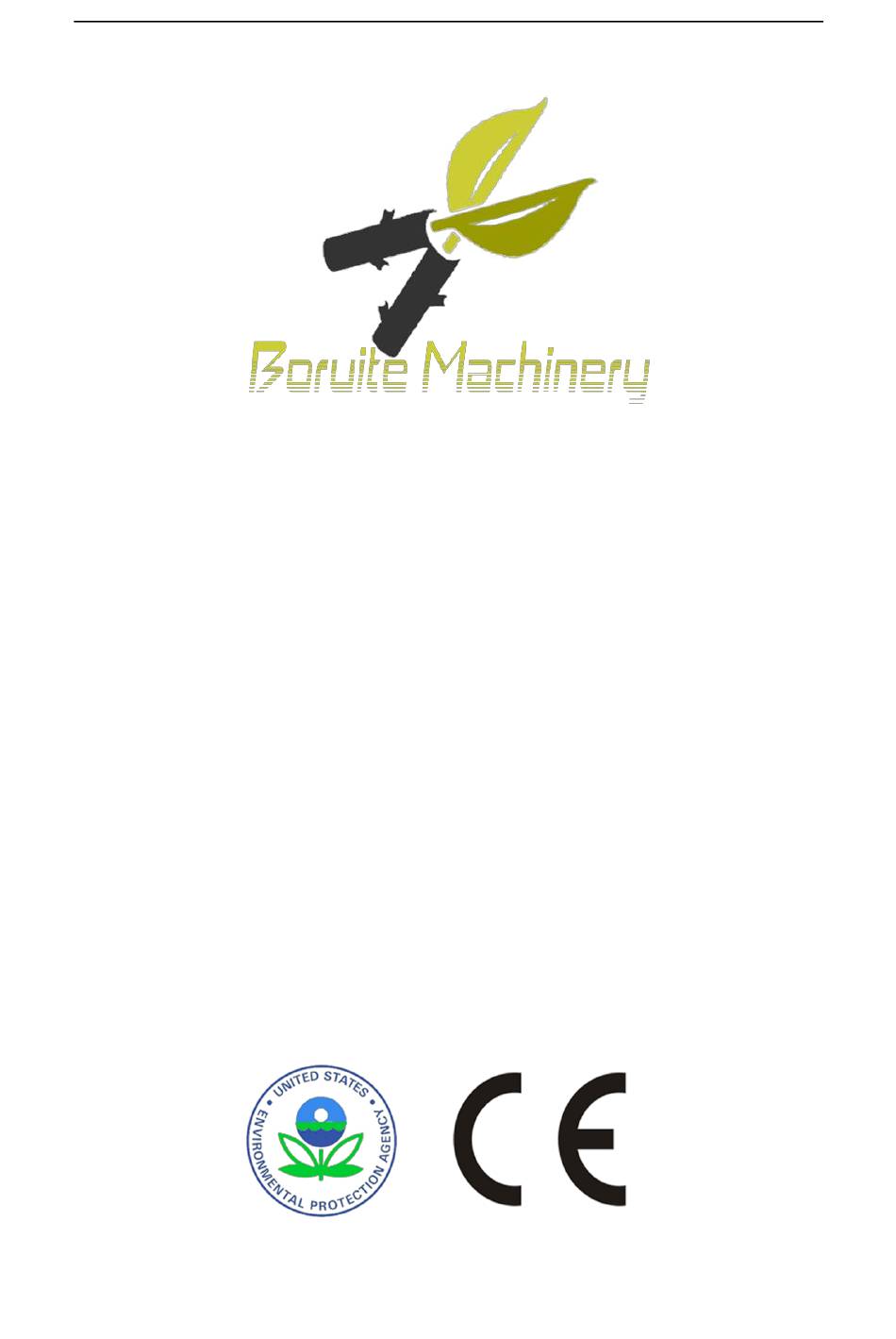

Page 1 BRTN Series All-in-one Firewood Processor Owner's Manual Supplier Name: QINGDAO BORUITE MACHINERY CO., LTD. Address: NO. 47A Qutangxia Road, ShiNan District. Qingdao Showroom: www.brt-logsplitter.com...
Page 2 Company Information Qingdao Boruite Machinery Co., Ltd. is located in Qingdao, Shandong province of China, specializing in manufacturing forestry and agricultural machinery with high quality and competitive price. We stick to "quality and service first, continuous improvement and innovation " as the management principle and "zero defect, zero complaints" as the quality objective.
Page 3 Features & Warranty 1. Certification: CE, EPA. 2. 2-year warranty. 3. Machine testing before shipping. 4. Customization accepted. 5. We own our factory and can supply the machines with competitive price. Packaging & Shipping Seaworthy export packing 1. Bigger models with ply/wooden case or wooden case;...
Page 4: Table Of Contents
table of Contents Owner's Manual ........................0 Owner's Manual ........................4 WARNING ..........................4 About Your Wood Processor ......................6 WARNING ..........................6 Safety Label Locations........................7 WARNING ..........................7 AWARNING ..........................7 OPERATING INSTRUCTIONS ....................... 7 MOVING/TOWING INSTRUCTIONS ................... 8 Initial Set-Up .............................
Page 5: Owner's Manual
Owner's Manual Instructions for Assembly, Testing, Operation, Servicing,& Wood Processors: Outdoor hydraulic powered machine that splits wood logs. WARNING READ and UNDERSTAND this manual completely before using wood processor. All operators of this equipment must read and completely understand all safety information, operating instructions, maintenance and storage instructions.
Page 6 ___________STOP!__________ SAVE BOLTS FROM PACKAGING: Some packaging bolts are used to assemble the wood processor. ADD OIL TO ENGINE BEFORE USING: Engine is shipped without oil. DO NOT start wood processor without first adding oil. ADD HYDRAULIC OIL: Your wood processor was shipped without hydraulic oil. Refer to Periodic Maintenance section of this manual for instructions on filling the hydraulicreservoir INSPECT COMPONENTS: Closely inspect to make sure no components are missing or...
Page 7: About Your Wood Processor
About Your Wood Processor Thank you for purchasing our wood processor! About Your Wood Processor: This wood processor is a machine designed to split wood logs using a hydraulically powered moving wedge. The wood processor's gasoline engine is used to pressurize the hydraulic system. This wood processor is designed to split logs lengthwise with the grain only.
Page 8: Safety Label Locations
order new labels or unsafe operation could result. Safety Label Locations WARNING POISONOUS GAS This product's use gives off carbon monoxide, an odorless gas that can kill you ONLY use outdoors and away from air intakes. NEVER use inside homes, garages, or sheds EVEN IF you run a fan or details.
Page 9: Moving/Towing Instructions
⚫ Only one person should operate the wood processor. if an assistants is helping to load logs, the operator should not actuate controls until the assistant is al least 10 ft away ⚫ Stay m the designated OPERATOR POSITION while actuating the controls. ⚫...
Page 10: Initial Set-Up
AWARNING FIRE HAZARD Hot exhaust can ignite dry brush, trees, or grass. • Equip engine with a spark arrestor if you will be using near ignitable forest brush or grassy covered land. • Keep a fire extinguisher on hand that is rated for ordinary combustibles &...
Page 11 Step Three: WARNING: High fluid pressures and temperatures are developed in hydraulic wood processors. Hydraulic fluid escaping through a pin hole sized opening can burn or Add Hydraulic Oil to puncture skin, resulting in wounds that could cause blood poisoning, infection, Reservoir disability, gangrene, amputation, or death, Therefore, the following instructions should be heeded at all times when inspecting or servicing the hydraulic components of the...
Page 12 Step Four: Lubricate Pump grease into grease /zerks found under each keeper This will help prevent wear Keepers between the keepers and beam. rail slaing rail Apply grease between the two parts Wedge plate Apply grease Rail between the two parts AWARNING ⚫...
Page 13: Moving And Towing To The Job Site
Moving and Towing to the Job Site Place in Horizontal position Make sure the wood processor is locked in the horizontal position with hitch pin before moving. Engine off. IMPORTANT: Make sure wood processor engine is off. Never move the wood processor with its engine running. Fuel valve off (if equipped) Turn fuel valve off to prevent carburetor flooding and reduce the chance of fuel leakage.
Page 14 • Attach wood processor's tows to a class 2 or higher hitch with 2" ball (only). • Adjust tows to ball by raising locking lever and turning lock nut with fingers. • Proper adjustment is obtained when tows is as tight as possible on ball and locking lever can still be opened and closed.
Page 15 outrigger leg down & unhitch Lock front outrigger leg in the DOWN position and disconnect from vehicle. NEVER operate wood processor while it is attached to the vehicle.
Page 16: Before Each Use
Before Each Use Inspection / Maintenance Step One: Inspect and maintain wood processor before each use If the wood processor has been used previously, it must be inspected and maintained BEFORE EACH SUBSEQUENT USE. WARNING ALWAYS shut off the engine, disconnect the spark plug, and relieve system pressure before inspecting, cleaning, adjusting, or repairing the splitter.
Page 17 Remove debris from engine, muffler, and moving parts. 1.Engine debris.Debris on a hot engine can be a fire hazard. Clean debris and 2.Remove chaff from engine cylinder head, cylinder head fins, blower housing rotating debris screen, and muffler areas.Avoid contact with hot muffler. 2.Other debris.
Page 18 * conveyor motor *engine...
Page 19 *oil pump Check the hydraulic system carefully: 1.Visually inspect all hoses, tubing, clamps, fillings, pump, and cylinder for cracks, fraying, kinks, or oilier damage. 2. Check all components for oily residue, which may indicate a leak. Do NOT operate the wood processor if there is any indication of damage or oily residue* Small leaks in hydraulic lines can cause severe injuries and can also be an indication of catastrophic failure in the near future.
Page 20 back and forth to relieve pressure before changing or adjusting hydraulic system components such as hoses, tubing, fittings or other components. NEVER check for leaks with your hand. Leaks can be located by holding a piece of cardboard or wood (at least two feel long) with your hand at one end and passing the other end over the suspected area (wear eye protection).
Page 21: Fueling
Fueling WARNING Gasoline is highly flammable and explosive. You can be burned or seriously injured when handling fuel. Use extreme care when handling gasoline. 1. Engine off/cool The engine must be off and allowed to cool al least two minutes before adding fuel.
Page 22: Work Site Selection And Wood Processor Set-Up
If gasoline is spilled on your skin or clothes, change clothes and wash skin immediately. 6. Replace gas cap Replace gas cap securely before starting engine. 7. Gasoline storage Store extra gasoline in a cool, dry place in a UL approved, tightly sealed container.
Page 23 monoxide poisoning. 2. Fire precautions Take the following precautions against fire: IMPORTANT:If your splitter will be used near any unimproved forest, brush, or grassy covered land, then engine must be equipped with a spark arrestor. (See the "Specifications" section of this manual to determine if your splitter already has a spark arrestor Contact dealer for information about obtaining a spark arrestor for your wood processor if it is unequipped.) 1) Make sure you comply with applicable local, state and federal...
Page 24: Splitting Operation
Splitting Operation Before starting this wood processor, review the following instructions and safety information for safe operation of the wood processor Failure to follow these rules may result in serious injury to the operator or bystanders from moving pans that crush, cut, or entangle from flying objects, bums, fire, falling or tripping, or from carbon monoxide poisoning.
Page 25 and in good working order, and all controls properly adjusted for safe operation. Know how to stop. Be thoroughly familiar with all controls and with the proper use of the equipment. Know how to stop the wood processor and relieve system pressures quickly if needed. Operating speed.
Page 26 No Loose / dangling. Loose or dangling apparel can become entangled in moving parts. Never wear jewelry or loose-fitting clothing. Start the engine See the engine owner's manual for engine starting instructions. NOTE: Make sure the hydraulic oil is above 10° F before starting the engine. Cold hydraulic oil can damage the hydraulic pump.
Page 27 will not fit on the log lifter. Correct Log Orientation Incorrect Log Orientation WARNING: ALWAYS keep hands and feet away from the endplate, wedge, and partially split logs while loading, operating and unloading the wood processor. Important safety instructions Hold bark side. Hold the bark side of logs when loading or positioning, never the ends. Never place your hands or any part of your body between a log and any part of the wood processor.
Page 28 4. Extend wedge Move Split Control Lever toward endplate to extend wedge and split log. Important safely instructions: • Operator position. ALWAYS operate the wood processor from the manufacturer's indicated OPERATOR POSITION. (See diagram above.) Other positions are unsafe because they can increase the risk of injury from crushing, cutting, flying objects, or burns.
Page 29 Splitting Operation WARNING: NEVER attempt to remove a stuck log by: Modifying the splitter,Adding attachments to the splitter. Personal injury could result from log or metal pieces flying out at high speed toward the operator or bystanders, or the splitter could become damaged. Return wedge Move Split Control Lever away from end plate to return wedge.
Page 30: Storage
Storage WARNING Gasoline vapors can ignite and cause a fire. Select a well-ventilated storage away from sources of heat, flame, or sparks. Follow the instructions below for storing your wood processor between uses. 1. Retract wedge Retract the wedge completely to keep the rod protected from corrosion. 2.
Page 31: Periodic Maintenance
5. Splitter storage Store the wood processor in a location away from corrosive material, sources location of heat, open flames, sparks or pilot lights. WARNING: Never store wood processor inside where there is a source of heat or an open flame, spark or pilot light-such as water heaters, space healers,furnaces, clothes dryers, or other gas appliances - EVEN IF the wood processor's gas tank is empty, residual gasoline vapors could ignite.
Page 32 1. Engine As specified in Perform engine maintenance as specified in engine engine owner's manual maintenance 2. Hydraulic Oil Annually Change Hydraulic Oil/100 hours Change WARNING: High fluid pressures and temperatures are developed in hydraulic wood processors. Hydraulic fluid escaping through a pin hole sized opening can bum or puncture skin, resulting in wounds that Could cause blood poisoning, infection, disability, gangrene,amputation, or death.
Page 33: Parts Breakdown
6.Check hydraulic oil level and fill if necessary. Spark arrestor muffler As specified in spark arrestor muffler manual If the engine is equipped with a spark arrestor muffler, clean and inspect it regularly (follow manufacturer's service instructions). Replace if damaged. Parts Breakdown Exploded View Troubleshooting...
Page 34 • Stop the engine, disconnect the spark plug, and move all control valve handles back and forth to relieve pressure before changing or adjusting hydraulic components such as hoses, tubing, fittings, or other components. • Do not remove the hydraulic oil fill cap when the engine is running. Hot oil can escape causing severe burns.
Page 35: Summary Of Important Safety Information For Operation
D- Blocked hydraulic lines Flush and clean the splitter hydraulic system E- Blocked control valve Flush and clean the splitter hydraulic system F- Low control valve setting Adjust control valve with a pressure gauge G- High control valve setting Adjust control valve with a pressure gauge H- Damaged control valve Return control valve for authorized repair I- Internal control valve leak...
Page 36: Safety In Moving And Towing The Wood Processor
grain. Do not use for other purposes, as unforeseen hazards may result. Prohibition Against Modifications Never modify or alter the wood processor in any way. Modifications can create serious safety hazards and will void the warranty. Attachments* Never add attachments to the splitter, except for authorized accessories supplied by the manufacturer with instructions for safe installation and use.
Page 37 Hills. Do not move the wood processor up or down hills by hand use a lowing vehicle. Engine off. Never move the wood processor with its engine running. No riding. Never allow anyone to sit or ride on the wood processor. No cargo. Never transport cargo or wood on the wood processor.
Page 38 • Read manual. Do not allow anyone to operate the wood processor who has not read the owner's manual or has not been instructed on the safe use of the splitter. • Review safety rules. Before starting this wood processor, review the "Rules for Safe operation."...
Page 39 • Mechanical parts, Check to be sure that all nuts and bolts are tight to make sure the wood processor is in safe working condition. • Hydraulic system. Check the hydraulic system (hoses, tubing, clamps fittings, pump, and cylinder) carefully before each use. Do not operate the wood processor with frayed, kinked, cracked or damaged hydraulic hoses, fittings, or tubing, or if oily residue is observed on any of the components.
Page 40 adding air to tires, do not over-inflate — serious injury could occur if tire explodes. • Guards / shields. Make sure all guards and shields are replaced after servicing the wood processor. • Replacement parts. If a part needs replacement, only use parts that meet the manufacturer's specifications.
Page 41 Safety in Work Site Selection • Spark arrestor. If your splitter will be used near any unimproved forest, brush, or grassy covered land, then engine should be equipped with a spark arrestor. See the "Specifications" section of this manual to determine if your splitter already has a spark arrestor. Make sure you comply with applicable local, state and federal codes.
Page 42 Failure lo follow these rules may result in serious injury lo the operator or bystanders. • Safety equipment / controls. Always operate the wood processor with all safety equipment in place and in good working order, and all controls properly adjusted for safe operation, •...
Page 43: Assembly Instructions
Safety - After use • Remove engine debris. Debris on a hot engine can be a fire hazard. With the engine off, clean debris and chaff from engine cylinder head, cylinder head fins, blower housing rotating screen, and muffler areas. Avoid contact with hot muffler. •...
Page 45 Step 1 Remove shipping crate If there are rubber boots on the axles, remove and discard them Slide Wheel onto Axle with Valve Stem facing out Slide Outer Bearing onto Axle (outer bearing may be shipped loose in parts bag or loose inside wheel) Outer bearing taper points into log splitter Slide Wheel Washer onto Axle...
Page 46 tep 4 Connect 53 (2pcs M10*80 bolts) and 54 to Step 5 Connect 56 (2pcs M12*60 round nuts) to 58 Connect 55 (20*90 pin shaft) with 57 Adjust the tightness of the conveyor belt...
