Summary of Contents for NFHS Network Pixellot

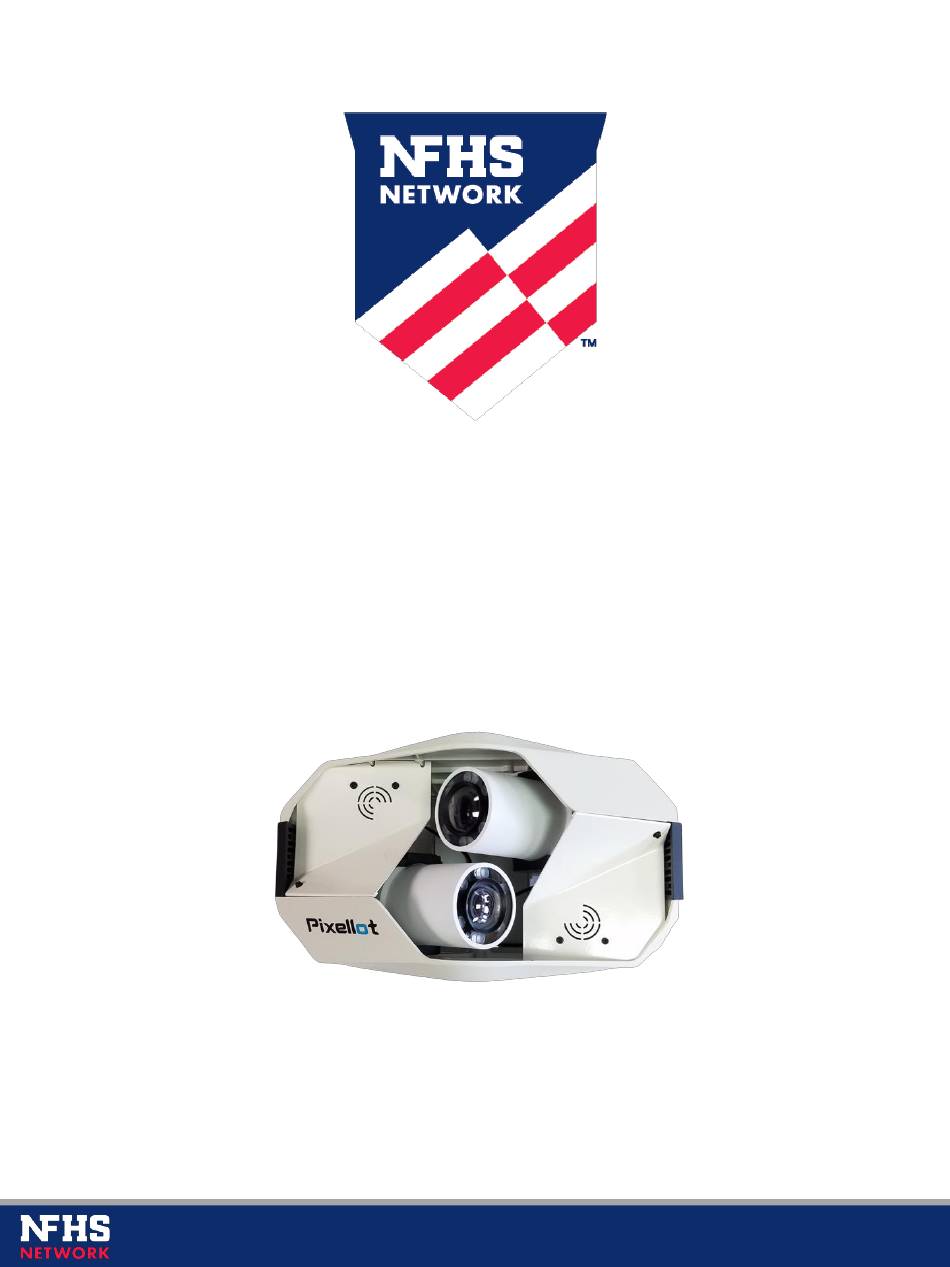

- Page 1 PIXELLOT SYSTEM INSTALLATION TRAINING An overview of equipment and tools required for basic installations...
-
Page 2: Table Of Contents
COMPUTER & CABINET ........PAGE 6 PREPARING THE PIXELLOT CAMERA ......PAGE 7 MOUNTING THE PIXELLOT CAMERA . -
Page 3: Tools
TOOLS Required • Phillips screwdriver • Measuring tape • Level • 3/16 cement drill bit • 3 Hex Keys (Metric 8, 5, 4) • 2 sockets (Metric 14, 11) • 1 ratchet • Adjustable wrench or channel locks • Hammer drill •... -
Page 4: Overview & Duties Upon Arrival
OVERVIEW & DUTIES UPON ARRIVAL The Pixellot streaming system consists of the following: • 1x Pixellot camera, which connects to, and is powered by, the computer via 2x Cat6 ethernet cables* • 1x Pixellot computer requiring hardline internet access and power •... -
Page 5: Camera Placement
CAMERA PLACEMENT For indoor installs, the camera will generally be mounted on a wall or beam. We usually recommend a 1:1 standoff (distance from sideline) to height ratio, but due to the nature of gym setups, your camera placement may vary. Below is a photo of a typical gym and the usable mounting area: For outdoor installs, the preferred camera placement is on the exterior of the press box, as close to the 50 yard line as possible. -
Page 6: Computer & Cabinet
COMPUTER & CABINET Speak with the onsite contact about a secure location for the computer that has internet and power access. Keep in mind you’ll want the computer installed as close to the camera as possible. Additionally, if installing the cabinet inside a gym, please ensure it’s mounted high enough to prevent students from sitting on it, but low enough to access it without a ladder. -
Page 7: Preparing The Pixellot Camera
PREPARING THE PIXELLOT CAMERA The first step in preparing the Pixellot camera is configuring the Mode. The Mode is a setting numbered 1-6 that changes the camera’s field of view and is determined by the standoff and height. Please reference the Mode Settings Table included with the shipment to determine the correct Mode. -
Page 8: Mounting The Pixellot Camera
MOUNTING THE PIXELLOT CAMERA The next step is to mount the camera arm* and attach the angle bracket (video) Once the arm has been mounted with the angle bracket, you can attach the camera (video) *If mounting to a beam, you will likely be using the ceiling mount instead of the... -
Page 9: Example Photos
EXAMPLE PHOTOS... -
Page 10: Mounting The Ocr Camera (Indoor Installs Only)
MOUNTING THE OCR CAMERA (INDOOR INSTALLS ONLY) For indoor installs, after mounting the Pixellot camera, you will need to mount the OCR scoreboard camera. The OCR camera is powered by a single Cat6 ethernet cable that runs to the computer. The camera’s only requirement is that it has a direct and unobstructed view of the scoreboard. -
Page 11: Scorelink Setup (Outdoor Installs Only)
SCORELINK SETUP (OUTDOOR INSTALLS ONLY) For outdoor installs, after mounting the Pixellot camera, you will need to setup the Scorelink device, as demonstrated in the following video: The serial cables will vary based on scoreboard type • Grey = Daktronics/Electromech •... -
Page 12: Computer-Side Camera Check
COMPUTER-SIDE CAMERA CHECK Before you call our calibration team, you will need to check the camera’s cable connections and its field of view, as well as the OCR angle (for indoor installs). The software setup guide, found here, will walk you through the necessary steps. -
Page 13: Installing A Point-To-Point (Outdoor Installs Only)
INSTALLING A POINT-TO-POINT (P2P) (OUTDOOR INSTALLS ONLY) If your outdoor unit’s computer location does not have hardline internet access, you will need to install a point-to-point (P2P) wireless bridge. The following video will demonstrate the installation process: Please be aware of the following requirements: •... -
Page 14: Post-Install Survey
POST-INSTALL SURVEY When your install is scheduled, you will receive an email with instructions on activating your post-install survey account. This account will be used to input required installation information and upload photos. An email will be sent for each of your scheduled installs. -
Page 15: Additional Guides
ADDITIONAL GUIDES Computer Cabinet Guide – How to install the computer cabinet Software Setup Guide – How to pair and configure the cameras Tycon User Manual – Tycon’s point-to-point wireless bridge manual...
